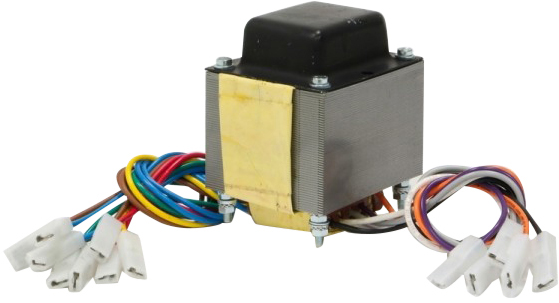

Transformer T-PWR-039044

Mains transformer for the Fender Champ 25 SE and the Champ 25.

Lamination: 3 inch, Stack 2 inch
Dimensions: L x W x H: 76mm x 64mm x 93mm
Installation height: 80mm

Primary:
0V Orange
120V Purple

0V Grey
100V White
120V Black

Secondary:
315V 180mA Red
0V Red

45V 50mA Brown
0V Brown

6,3V 2.5 A Green
0V Green

19V 300mA Blue
0V Yellow
19V Blue.

Colors in brackets are original wire colors and connecting points for 220-240V.

Primary:
0V Orange (BLK/RED - CP3)
120V Purple (BLK/GRN - CP20)

0V Grey (BLK/YEL - CP21)
100V White (WHT - CP22)
120V Black (BLK - CP23)

Secondary:
315V 180mA Red (CP14)
0V Red (CP6)

45V 50mA Brown (CP7)
0V Brown (CP8)

6,3V 2.5 A Green (CP18)
0V Green (CP13)

19V 300mA Blue (CP16)
0V Yellow (CP10)
19V Blue (CP17)
