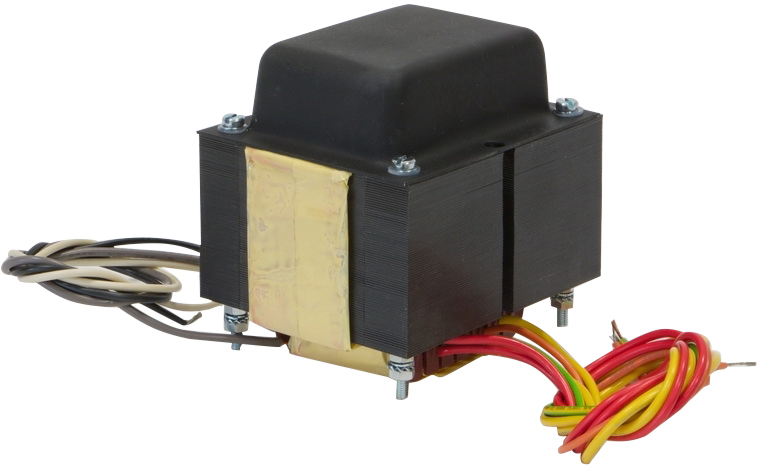

Transformer T-PWR-PC50P

Mains transformer for Peavey Classic 50, replaces #705-29312. Comes without end bells.

Lamination: 3 3/4 inch, Stack: 2 inch
W x H x D: approx. 97mm x 100mm x 80mm
installation height. approx. 86mm

Primary:
240V White
230V Grey
0V Black

Secondary:
320V@250mA Red
0V Red

6,3V@4A Yellow
0V Yellow

22V@300mA Orange
0V Green/Yellow
22V Orange
