Zonk II Style Board

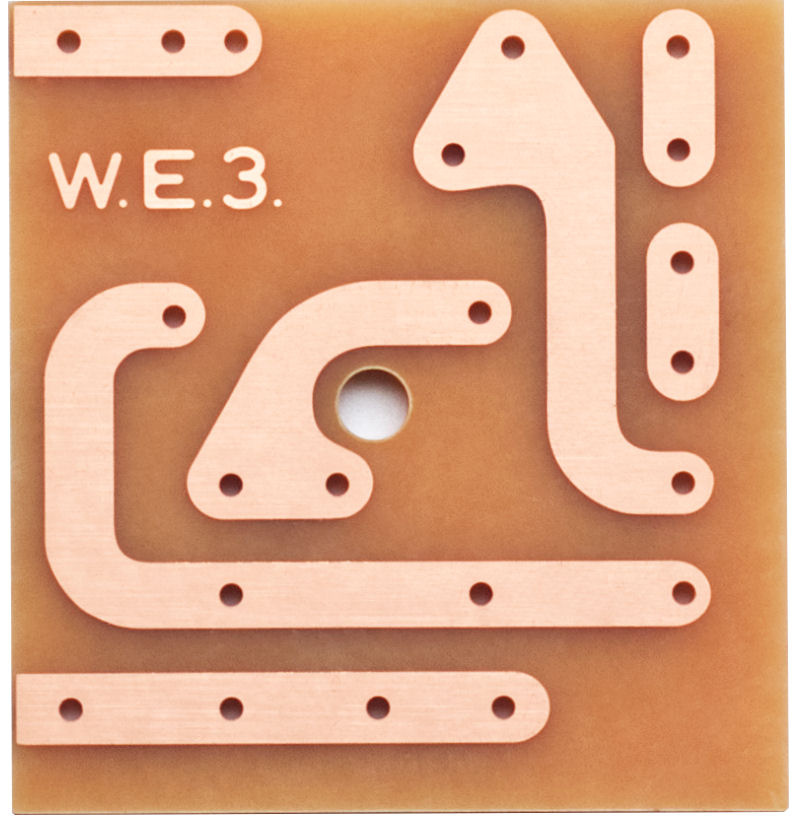

This board is a recreation of the circuit board found in the Zonk II pedal. The board is styled after the version that featured silicon transistors and a printed circuit rather than a stripboard construction. It is actually a cut down version of the Shatterbox PCB using only the fuzz side of that pedal. When drawing the layout, original boards were closely referenced to ensure a proper match and fit. The copper traces have a surface treatment providing protection from corrosion.

This board includes a blank mounting PCB. This PCB sits directly beneath the main board to mount it directly to the enclosure using screws.

Zonk II style circuit board made with a phenolic substrate for an even closer match to the vintage production boards. Phenolic boards are found in many vintage electronics before the use of fiberglass became common.
