Zonk Machine Style Board
(
0 reviews
)

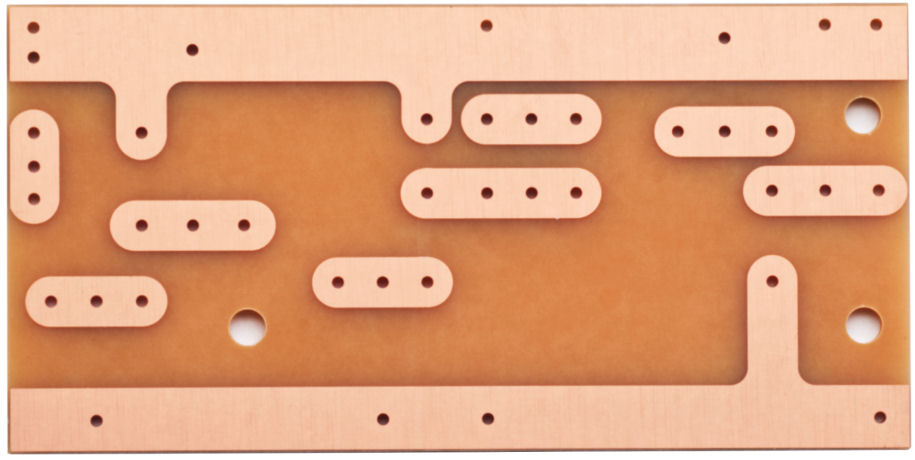

This board is a recreation of the circuit board found in the Zonk Machine pedal. The board is styled after the early version that featured a printed circuit rather than a stripboard construction. Zonk Machine style circuit board made with a phenolic substrate for an even closer match to the vintage production boards. Phenolic boards are found in many vintage electronics before the use of fiberglass became common. The board is styled after the early version that featured a printed circuit rather than a stripboard construction. When drawing the layout, original boards were closely referenced to ensure a proper match and fit. The copper traces have a surface treatment providing protection from corrosion.
This board includes a blank mounting PCB. This PCB sits directly beneath the main board to mount it directly to the enclosure using screws.
SKU
SKU 74813
Weight
5,00
g
Our price:
€
11,09
including VAT 19% ,
[plus shipping]
Quantity
Price*
*Note:
including VAT ,
[plus shipping]
Delivery time: 4-5 days*
Qty
1
Add to cart
Add to wish list
Ask a question about this product
