Alpha 16-DPDT-PC-100k lin

Alpha 16-DPDT-PC-100k lin

(0 reviews)

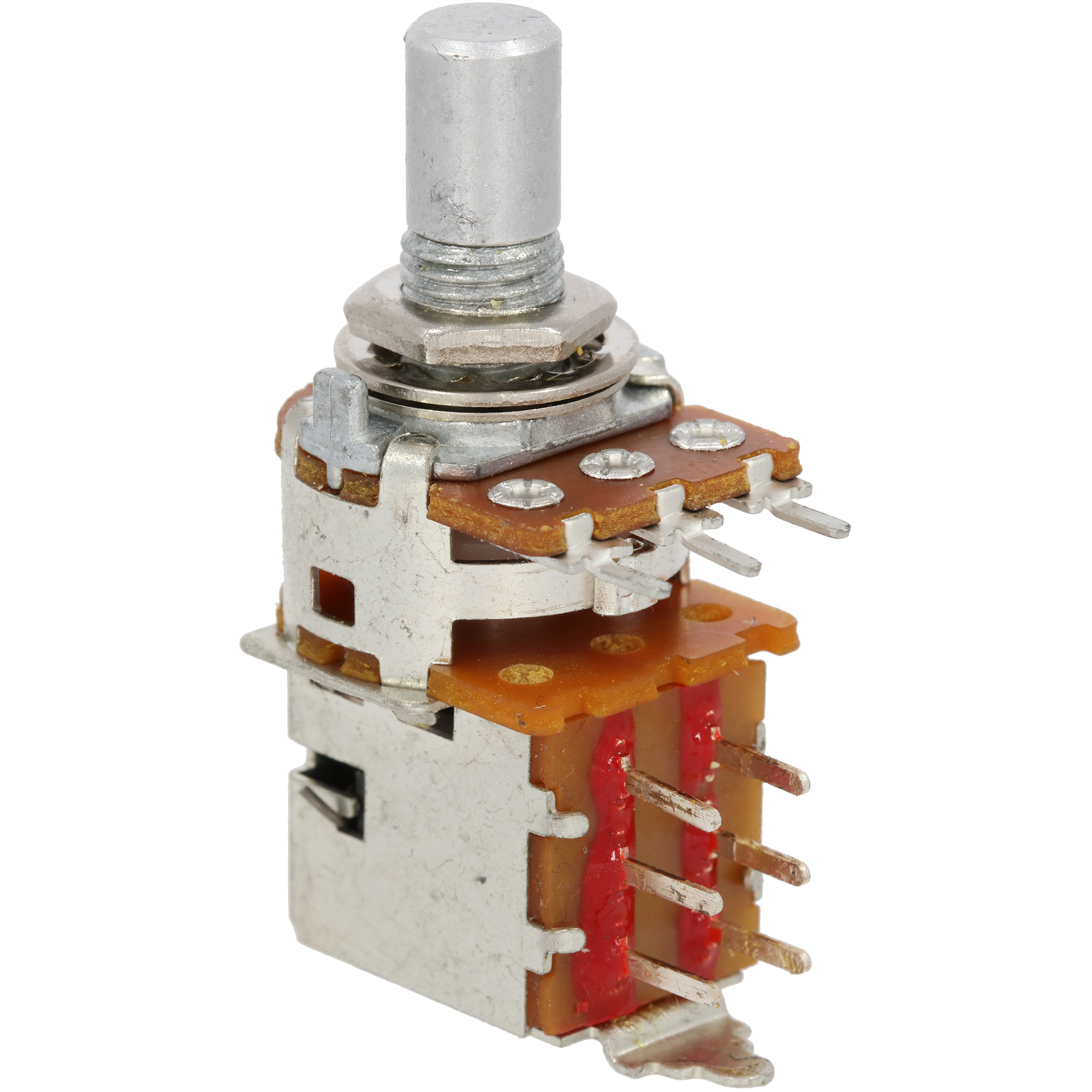

Alpha 16mm, full shaft, mono potentiometer. PC mount. With push-pull DPDT switch (30VDC, 0,3A).

Specifications:

  • Mono
  • With pushpull DPDT switch (30VDC, 0,3A)
  • Metal axis, full shaft
  • Material: Carbon Composition
  • Terminal type: PC mount
  • Body (DxH): 16x26,5mm
  • Power rating: 0,2W
  • Rated voltage: 200VAC
  • Tolerance: +/- 20%
  • Rotation angle: 300 degrees +/- 5%
  • Breakdown voltage: 500VAC for 1 minute
  • Rotational life: 15000 cycles
  • Axis length (including thread): 15,5mm
  • Thread length: 7mm
  • Thread Diameter: M7 x 0,75

    • SKU SKU 34329
    Weight 8,00 g
    360 Image 360 degrees image
    Our price: €6,89
    including VAT 19% , [plus shipping]
    Quantity Price*
    3-5 Items €6,52
    6-9 Items €6,16
    10+ Items €5,84

    *Note: including VAT , [plus shipping]

     Delivery time: 4-5 days*
