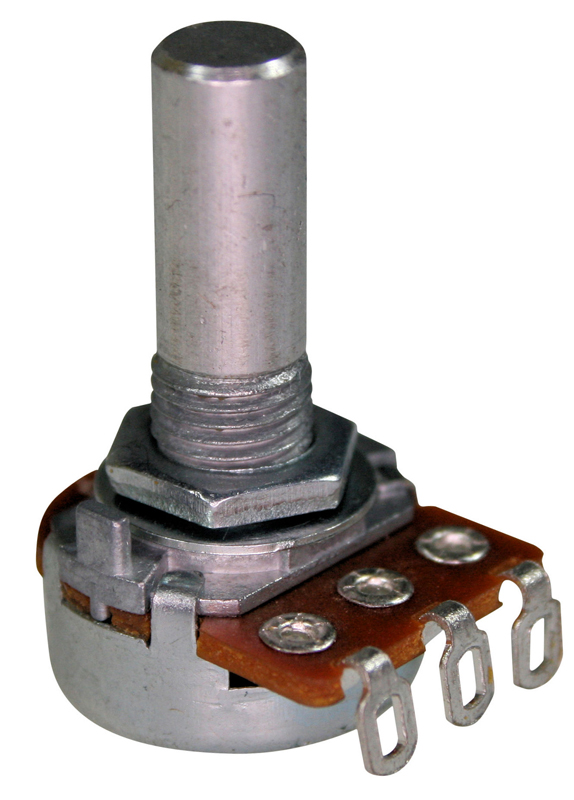

Alpha 16-LNG-LS-100k log

Alpha 16mm, full shaft, mono potentiometer with solder lugs.

Specifications:

Mono

Metal axis, full shaft

Material: Carbon Composition

Terminal type: solder lugs

Body (DxH): 16x9,5mm

Power rating: 0,6W

Rated voltage: 150VAC

Tolerance: +/- 20%

Rotation angle: 300 degrees +/- 5%

Breakdown voltage: 500VAC for 1 minute

Rotational life: 15000 cycles

Axis length (including thread): 20mm

Thread length: 7mm

SKU SKU 34292

Weight 8,00 g

360 Image

Manufacturer TAIWAN ALPHA ELECTRONIC CO.,LTD., 9F., No. 1221, Zhongzheng Rd., Taoyuan Dist., Taoyuan City 330010 , Taiwan (R.O.C.), sales@taiwanalpha.com

Importer Banzai Music GmbH, Benzstr. 46-50, 12277 Berlin, Deutschland, support@banzaimusic.com

Our price: €3,27
including VAT 19% , [plus shipping]

Quantity	Price*
5-9 Items	€3,13
10-24 Items	€2,95
25+ Items	€2,80

*Note: including VAT , [plus shipping]

Delivery time: 4-5 days*
