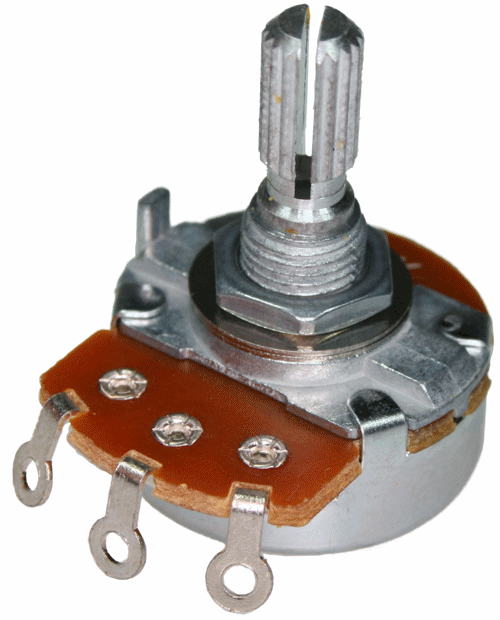

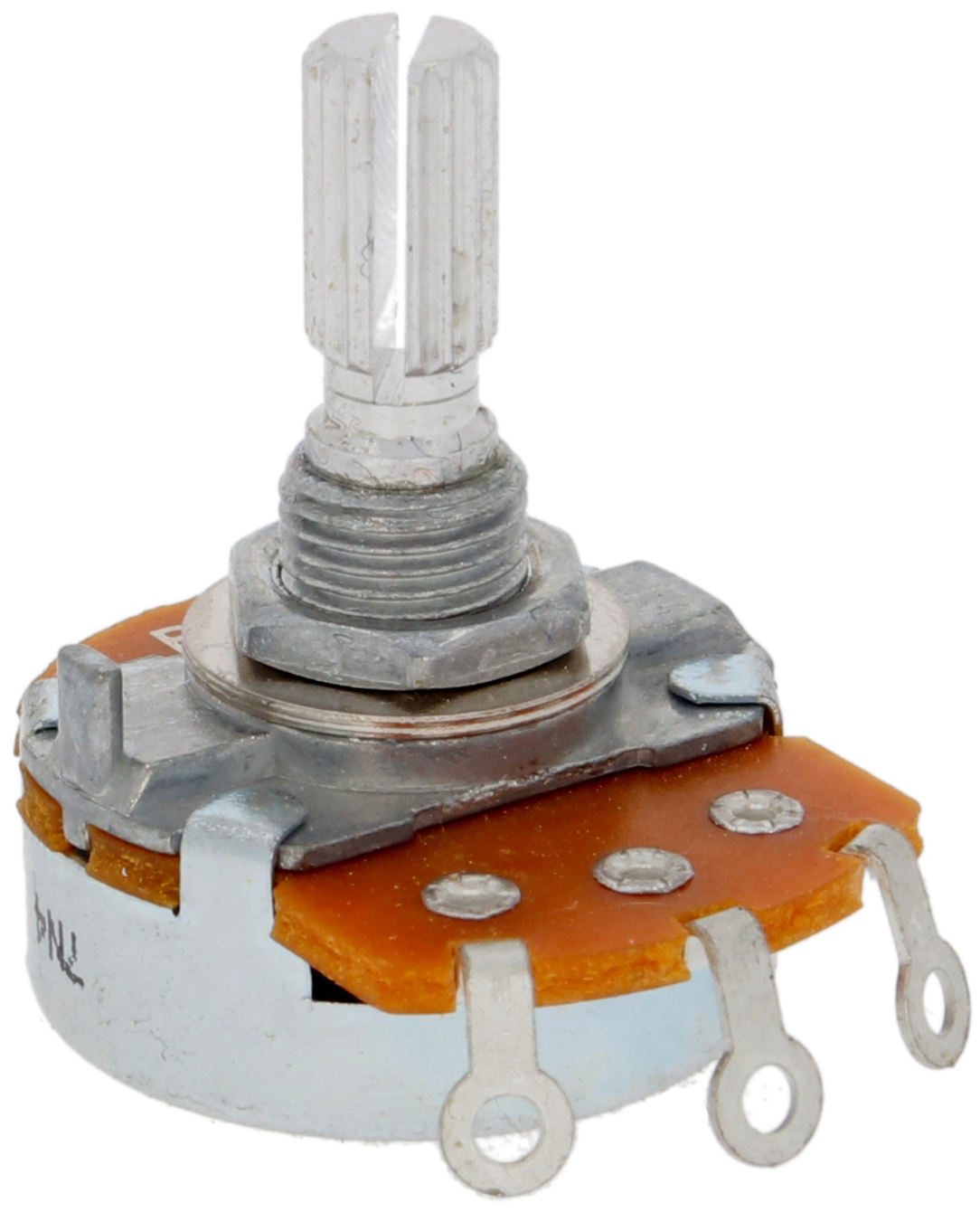

Alpha 24-LNG-KN-1k lin

Alpha 24mm, knurled split shaft, mono potentiometer with solder lugs.

Specifications:

Mono

Metal axis, knurled split shaft

Material: Carbon Composition

Terminal type: solder lugs

Body (DxH): 24x11,5mm

Power rating: 0,5W

Rated voltage: 500VDC

Tolerance: +/- 20%

Rotation angle: 300 degrees +/- 5%

Breakdown voltage: 500VAC for 1 minute

Axis length (including thread): 20,5mm

Thread length: 7mm

Thread diameter: M8 x 0,75

SKU SKU 34418

Weight 19,00 g

360 Image

Manufacturer TAIWAN ALPHA ELECTRONIC CO.,LTD., 9F., No. 1221, Zhongzheng Rd., Taoyuan Dist., Taoyuan City 330010 , Taiwan (R.O.C.), sales@taiwanalpha.com

Importer Banzai Music GmbH, Benzstr. 46-50, 12277 Berlin, Deutschland, support@banzaimusic.com

Our price: €2,61
including VAT 19% , [plus shipping]

Quantity	Price*
5-9 Items	€2,48
10-24 Items	€2,33
25+ Items	€2,21

*Note: including VAT , [plus shipping]

Delivery time: 4-5 days*
