Alpha 24-SPST-500 Ohm log

Alpha 24-SPST-500 Ohm log

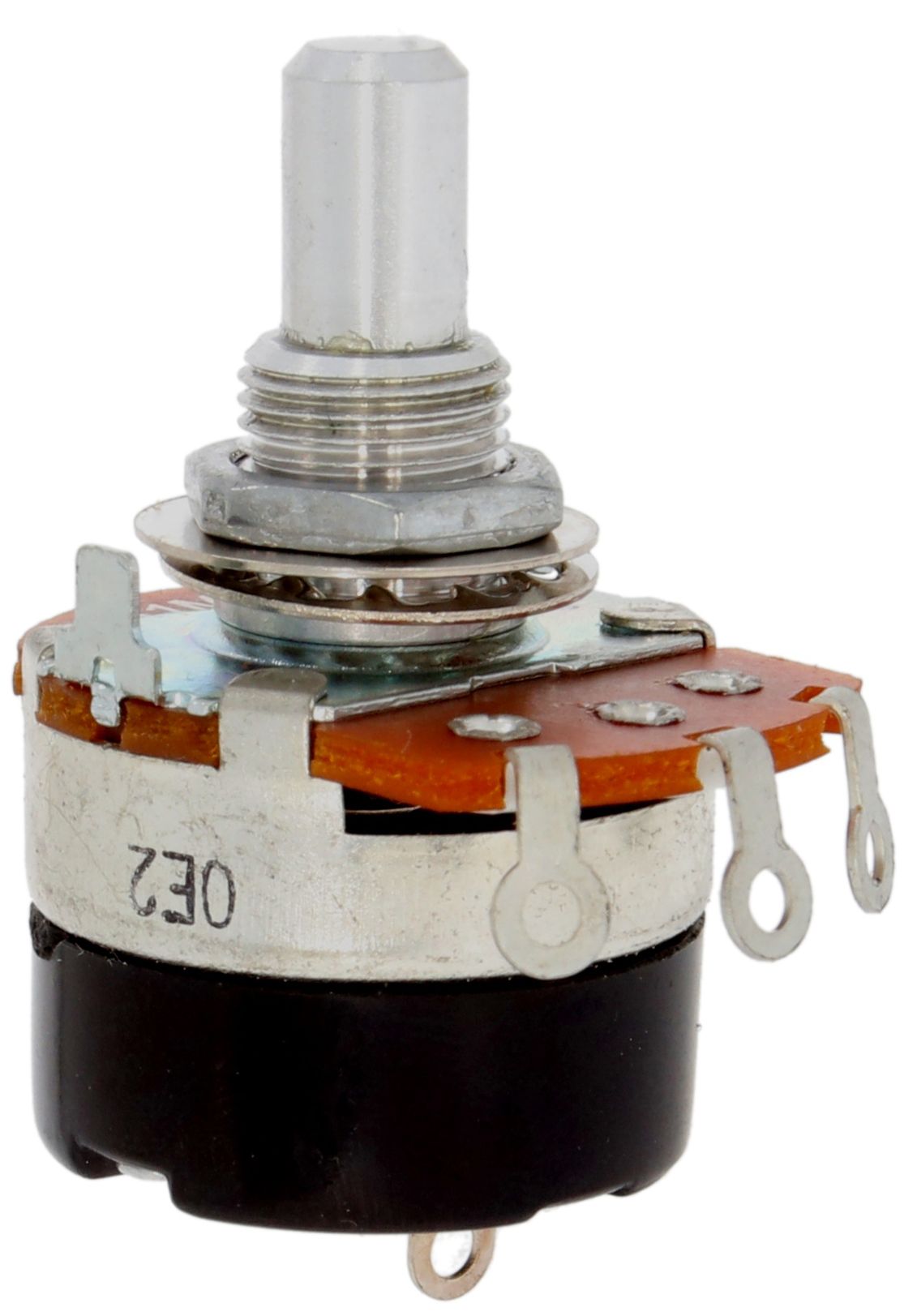

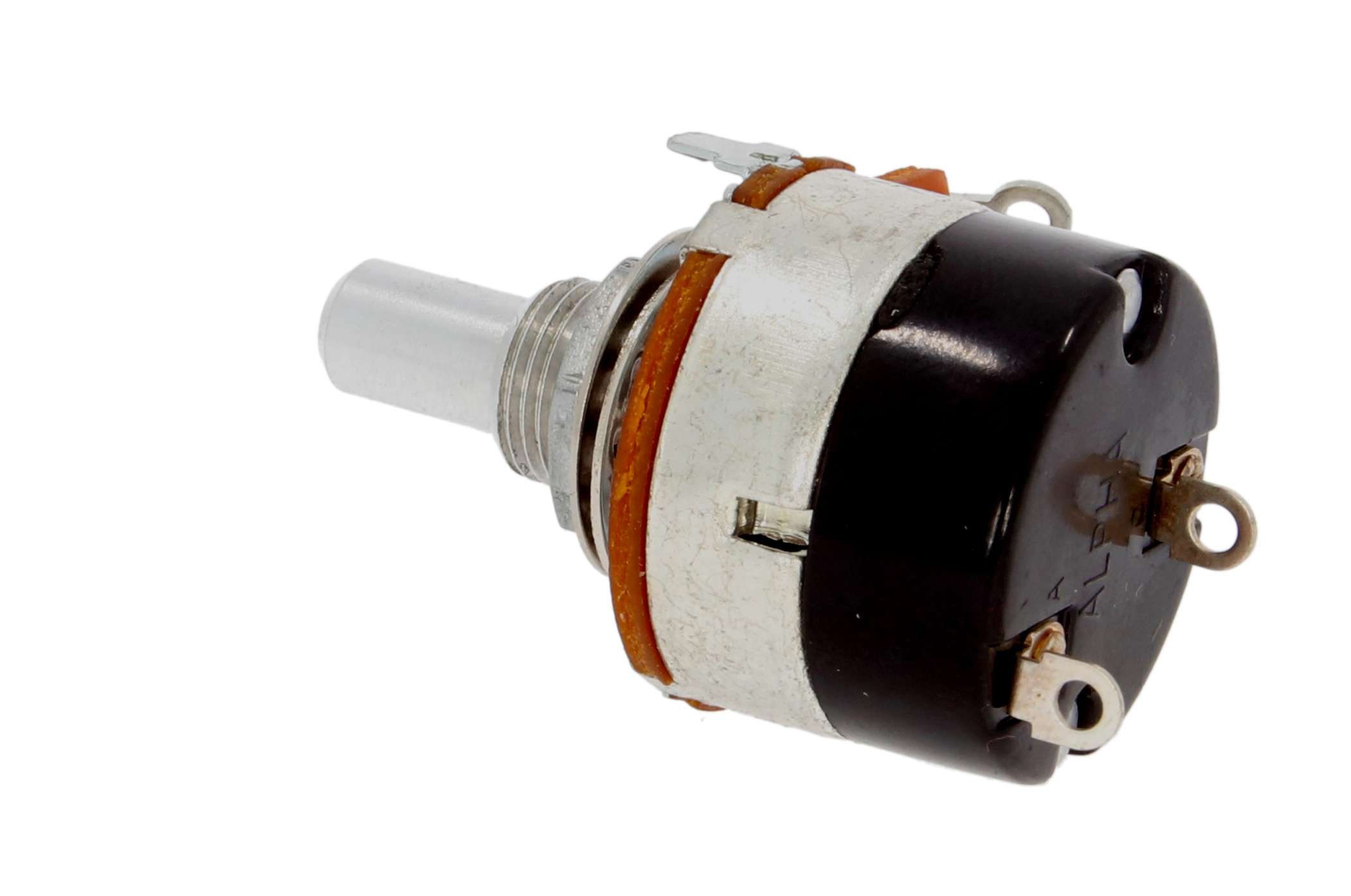

Alpha 24mm, full shaft, mono potentiometer with solder lugs and SPST turn-on switch.

Specifications:

  • Mono
  • SPST turn-on switch
  • Metal axis, full shaft
  • Material: Carbon Composition
  • Terminal type: solder lugs
  • Body (DxH): 24x20mm
  • Power rating: 0,5W
  • Rated voltage: 500VDC
  • Tolerance: +/- 20%
  • Rotation angle: 300 degrees +/- 5%
  • Breakdown voltage: 500VAC for 1 minute
  • Axis length (including thread): 15,5mm
  • Thread length: 7mm
  • Thread diameter: M8 x 0,75

    • SKU SKU 34393
    Weight 19,00 g
    360 Image 360 degrees image
    Manufacturer TAIWAN ALPHA ELECTRONIC CO.,LTD., 9F., No. 1221, Zhongzheng Rd., Taoyuan Dist., Taoyuan City 330010 , Taiwan (R.O.C.), sales@taiwanalpha.com
    Importer Banzai Music GmbH, Benzstr. 46-50, 12277 Berlin, Deutschland, support@banzaimusic.com
    Our price: €4,37
    including VAT 19% , [plus shipping]
     Delivery time: 4-5 days*
