Alpha 24-WW-20 Ohm log

Alpha 24-WW-20 Ohm log

(0 reviews)

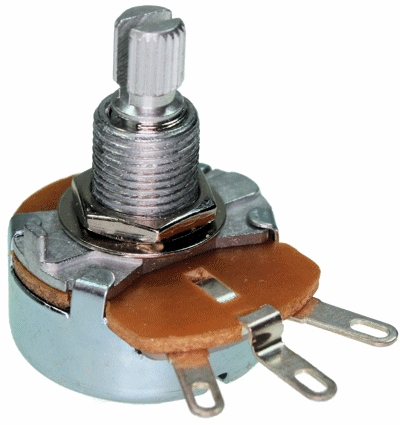

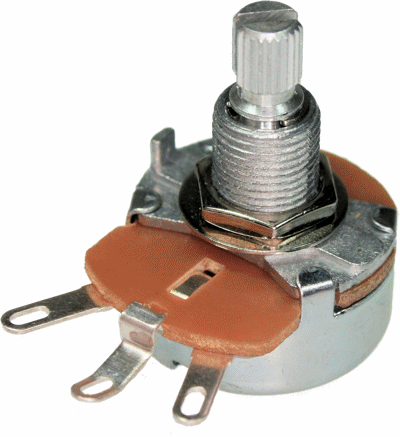

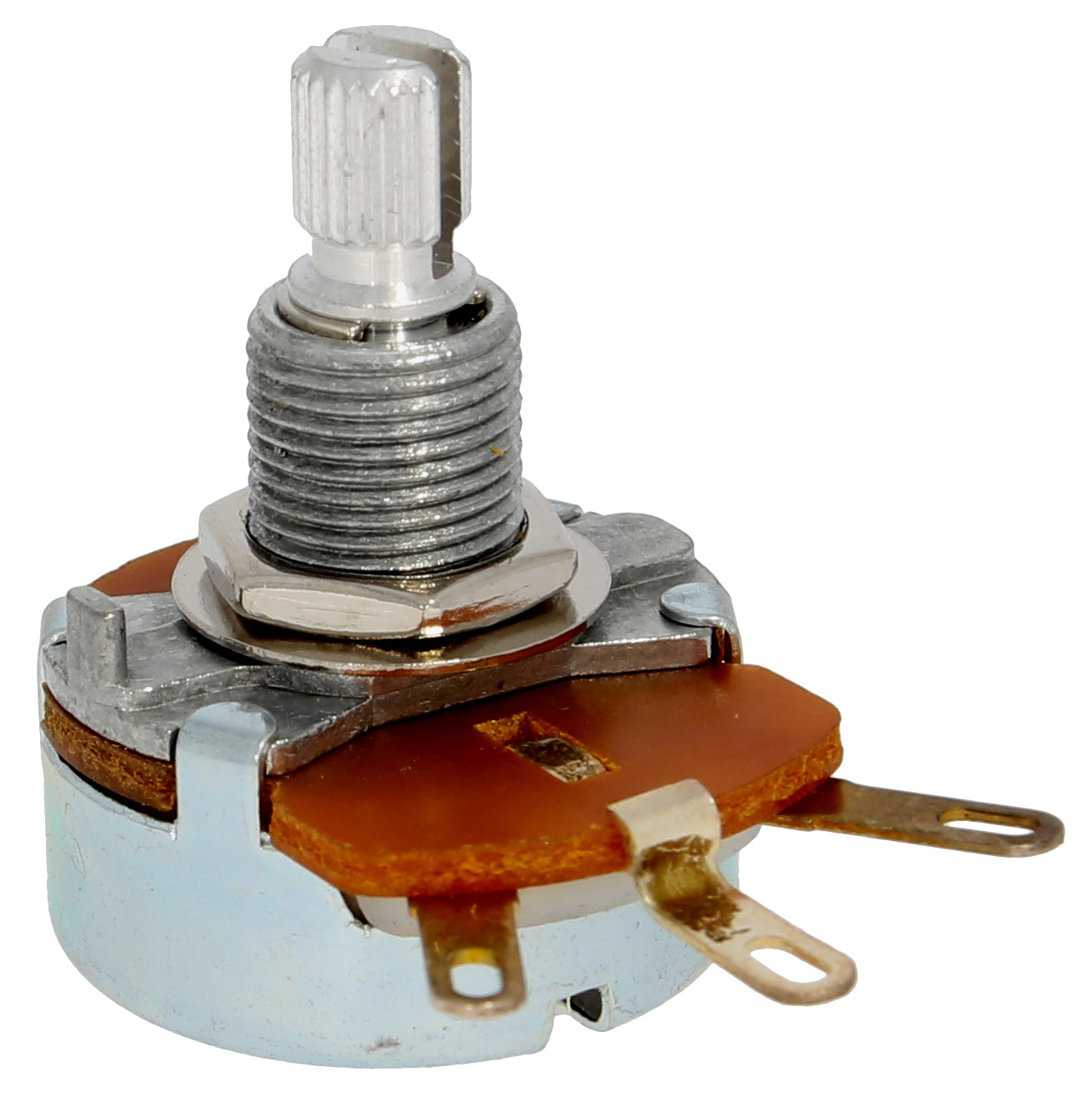

Alpha 5W wirewound potentiometer.

Specifications:

  • Mono
  • Metal axis, knurled split shafr
  • Material: Wirewound
  • Terminal type: Solder lugs
  • Body (DxH): 24x12mm
  • Power rating: 5W
  • End stop strength: 6 kg/cm
  • Rotation angle: 300 degrees +/- 5 degrees
  • Rotation torque: 30-300gf/cm
  • Axis length (including thread): 19mm
  • Thread length: 10,5mm
  • Thread diameter: 3/8 x 32 NEF

    • SKU SKU 34464
    Weight 19,00 g
    360 Image 360 degrees image
    Manufacturer TAIWAN ALPHA ELECTRONIC CO.,LTD., 9F., No. 1221, Zhongzheng Rd., Taoyuan Dist., Taoyuan City 330010 , Taiwan (R.O.C.), sales@taiwanalpha.com
    Importer Banzai Music GmbH, Benzstr. 46-50, 12277 Berlin, Deutschland, support@banzaimusic.com
    Our price: €12,20
    including VAT 19% , [plus shipping]
    Quantity Price*
    3-5 Items €11,90
    6-9 Items €11,53
    10+ Items €11,20

    *Note: including VAT , [plus shipping]

     Delivery time: 4-5 days*
