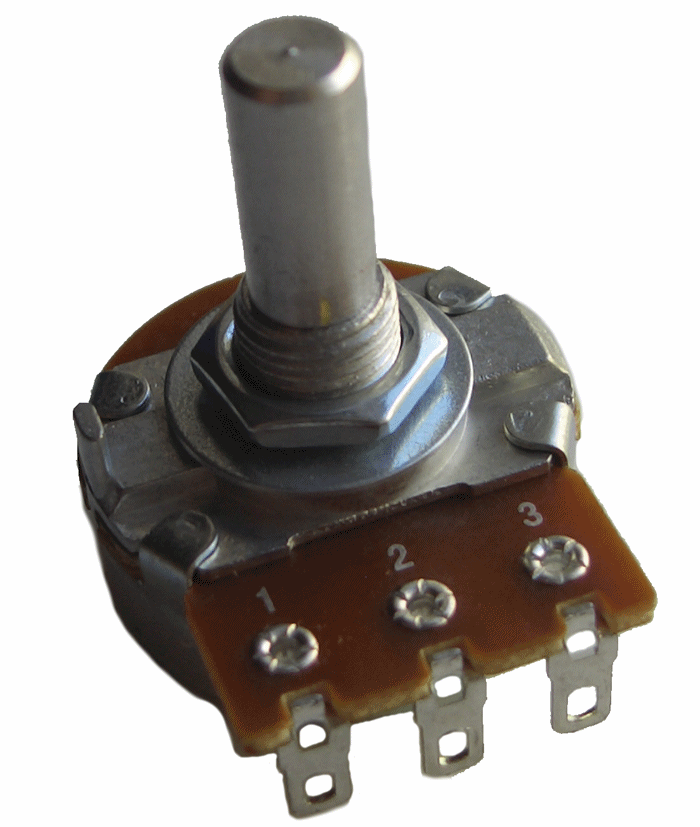

Bourns AP-FS 500k lin

		(0 reviews)

These high quality potentiometers are suitable for use in both professional and consumer applications. The most popular applications are electric guitars, sound processing equipment, and sound system amplifiers.

Standard Resistance Tolerance: ±20%

Residual Resistance: R<500K? - 10k max.

R>500K? - 0.1% max.

Operating Temperature: -10°C to °C

Power Rating: Linear (lin): 0.5W, Audio (log): 0.25W

Maximum Operating Voltage: Linear (lin): 500V, Audio (log): 250V

Rotational Noise: 150mV max.

Mechanical Angle: 300°±5°

Rotational Torque: 20 to 200g-cm

Stop Strength: 8kg-cm. min

Rotational Life: Standard: 15,000 cycles min.

Soldering Condition: Manual: 300°C within 3 sec. Wave: 260°C within 3 sec.

Hardware: one flat washer and mounting nut supplied per potentiometer with bushing

Features:

High rotational life

Metal shaft styles

Carbon element

Wide range of resistance tapers

RoHS Compliant

Applications:

Electric guitars

Sound processing equipment

Guitar and sound system amplifiers

SKU SKU 24495

Weight 19,00 g

360 Image

Our price: €3,78
including VAT 19% , [plus shipping]

Quantity	Price*
10-24 Items	€3,72
25+ Items	€3,63

*Note: including VAT , [plus shipping]

Delivery time: 4-5 days*
