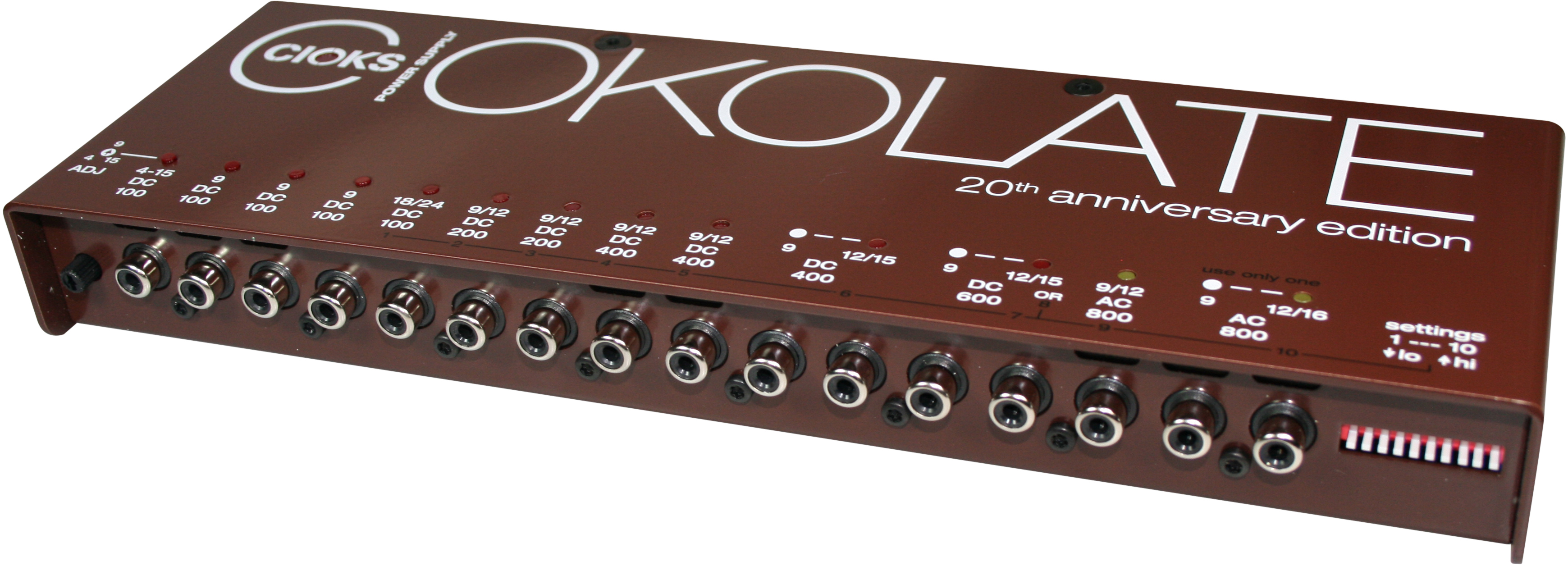

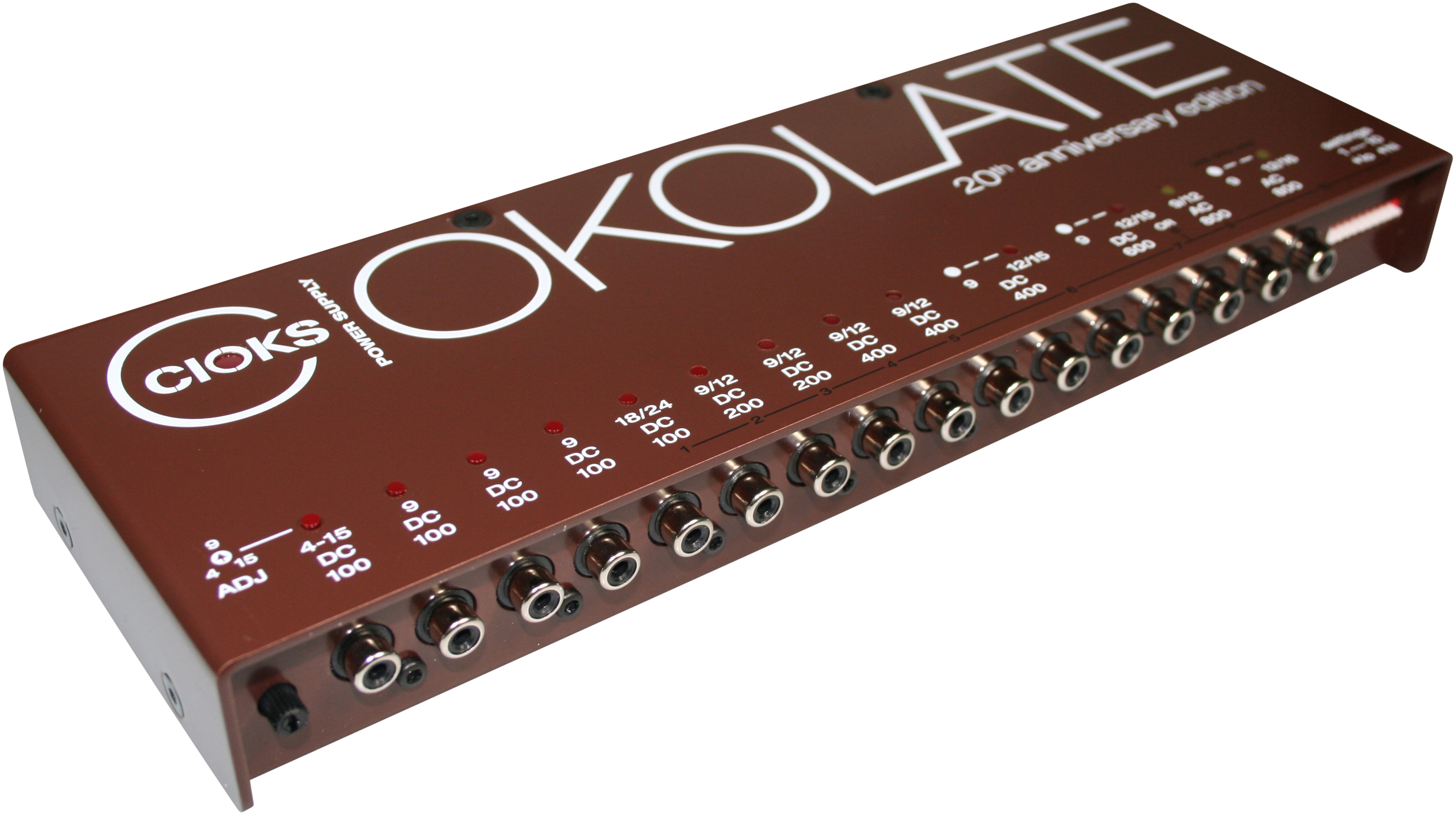

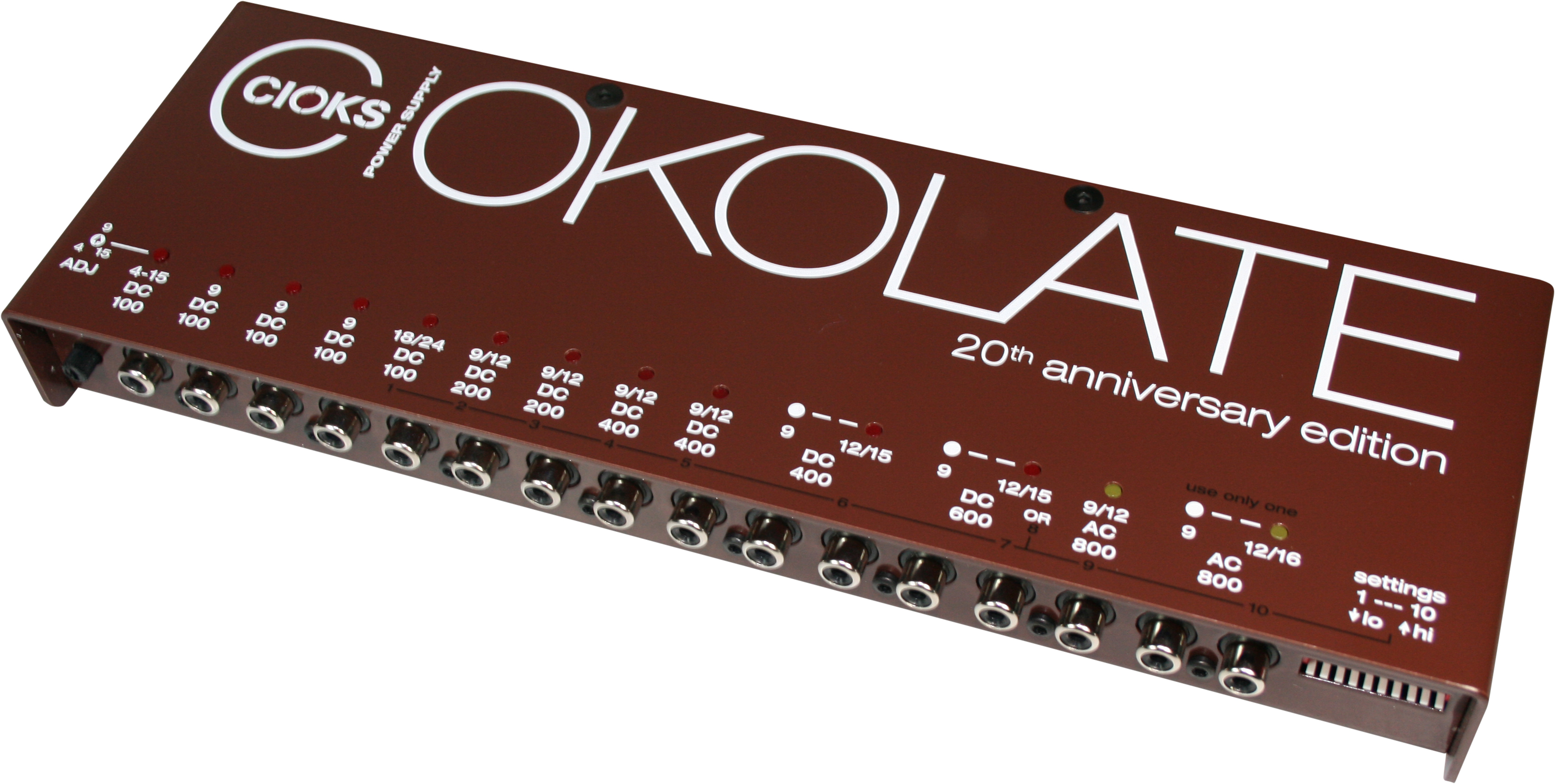

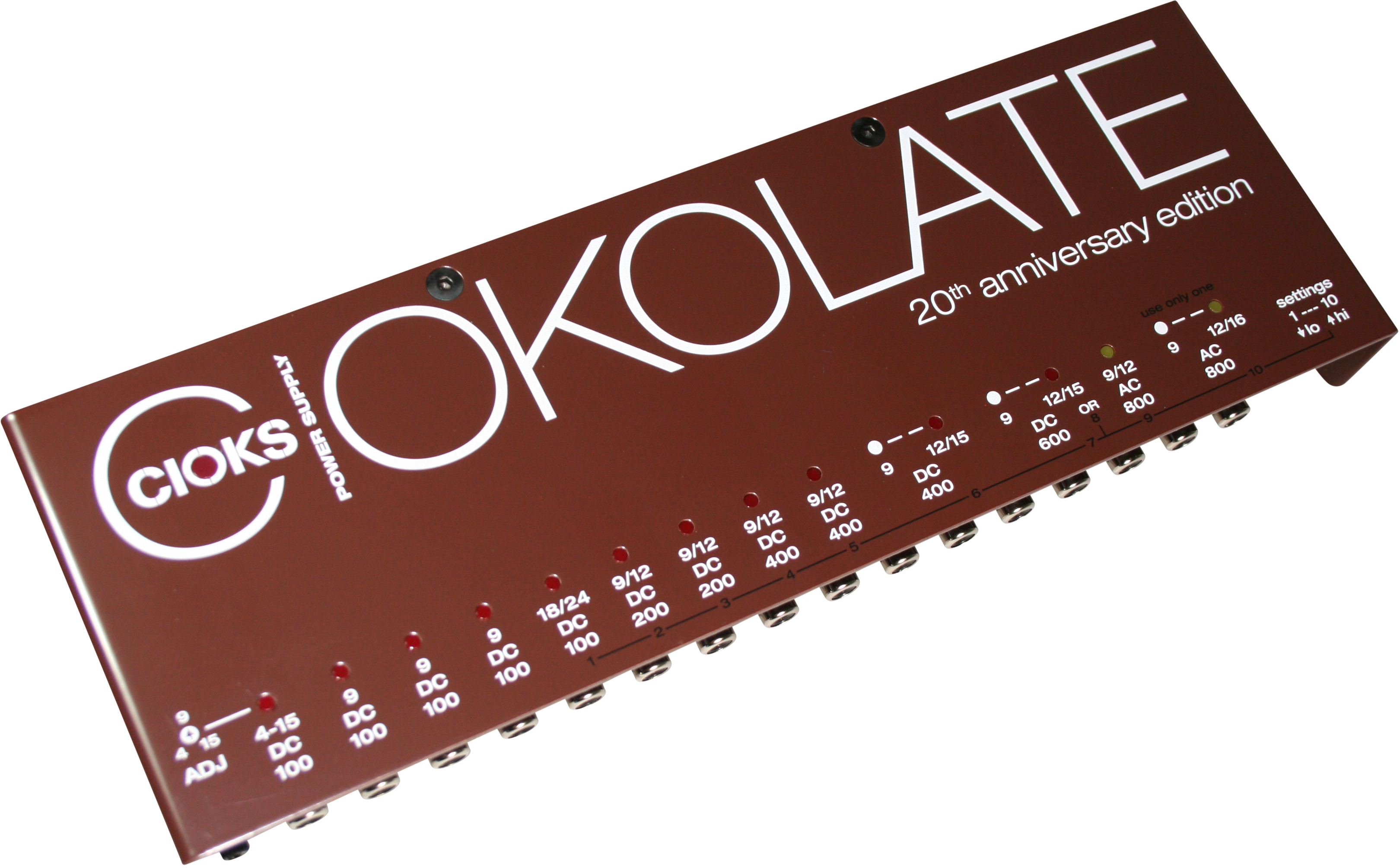

Cioks Ciokolate

Loads of power, almost endless compositions of different voltages and a great selection of included Flex cables make this power supply a really strong tool for powering big pedal boards with many different pedals. CIOKS CIOKOLATE power supply will power several high current digital pedals, high voltage 18, 24 or even 40V pedals, one or two AC pedals, one or two Radial Tonebone pedals or simulating a dying battery it will power your old favourite fuzz or overdrive. On top of that it will of course also power all your standard 9V pedals from its many isolated outlets.

Features:

16 outlets configured in 12 isolated sections

two toroidal transformers with additional magnetic field shielding

four powerful DC sections, three with 400mA each and one with 600mA

two powerful AC sections with 800mA each and voltages 9, 12 and 16V AC

two 15V outlets for Radial Tonebone pedals

possibility of 18 or 24V from a single outlet

will power a 40V pedal with Stack Flex

one outlet with adjustable voltage in the range 4-15V

short circuit protection of all outlets

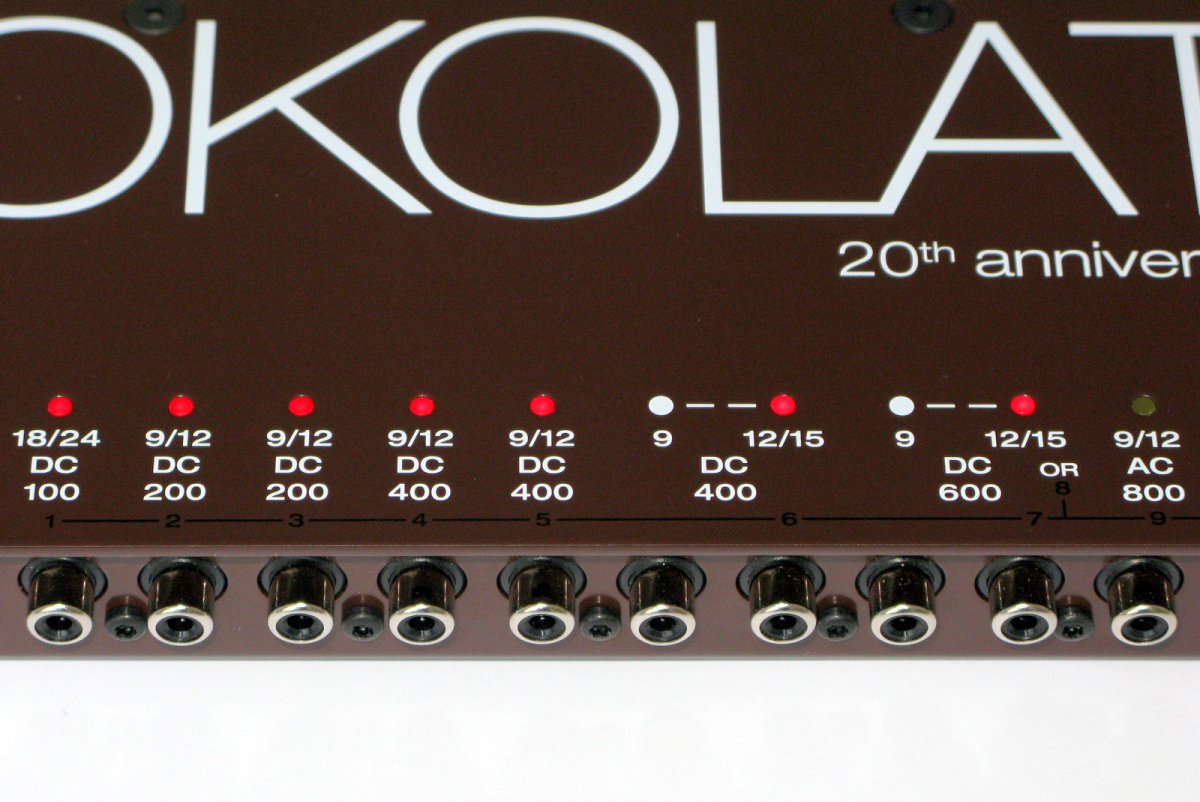

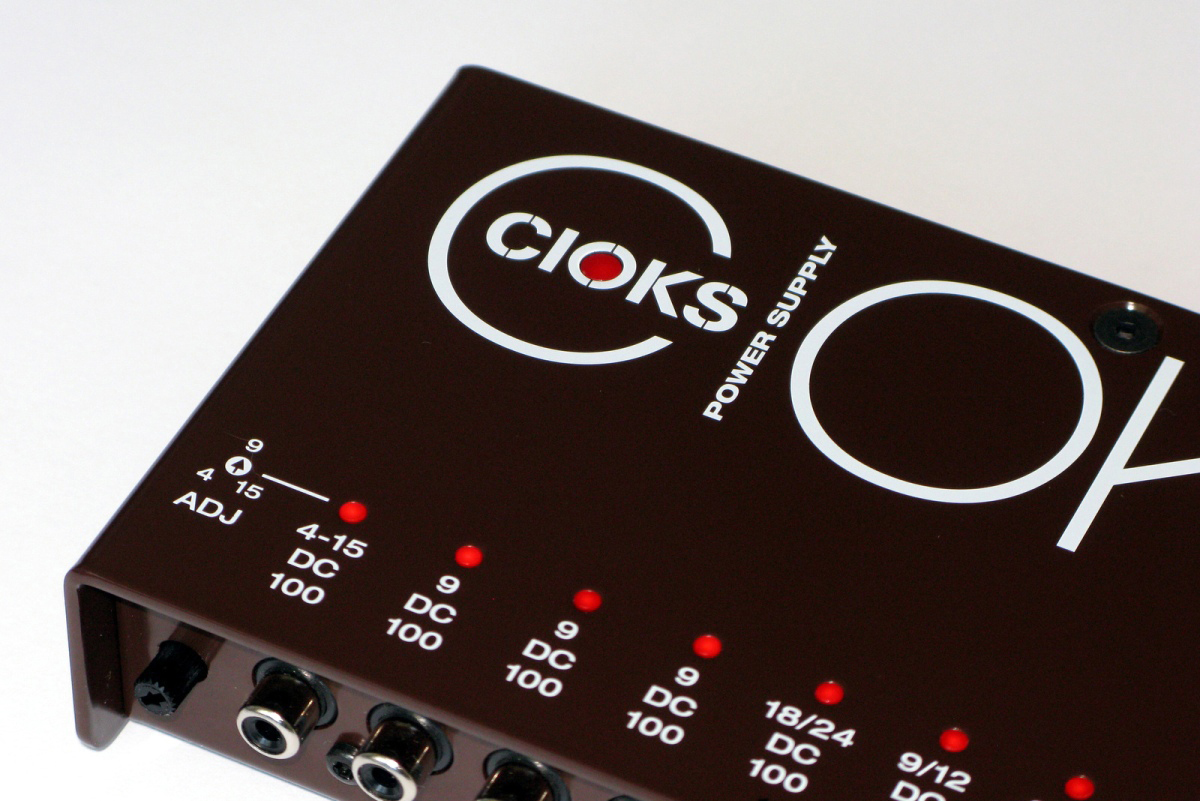

advanced LED monitoring of each section

temperature monitoring

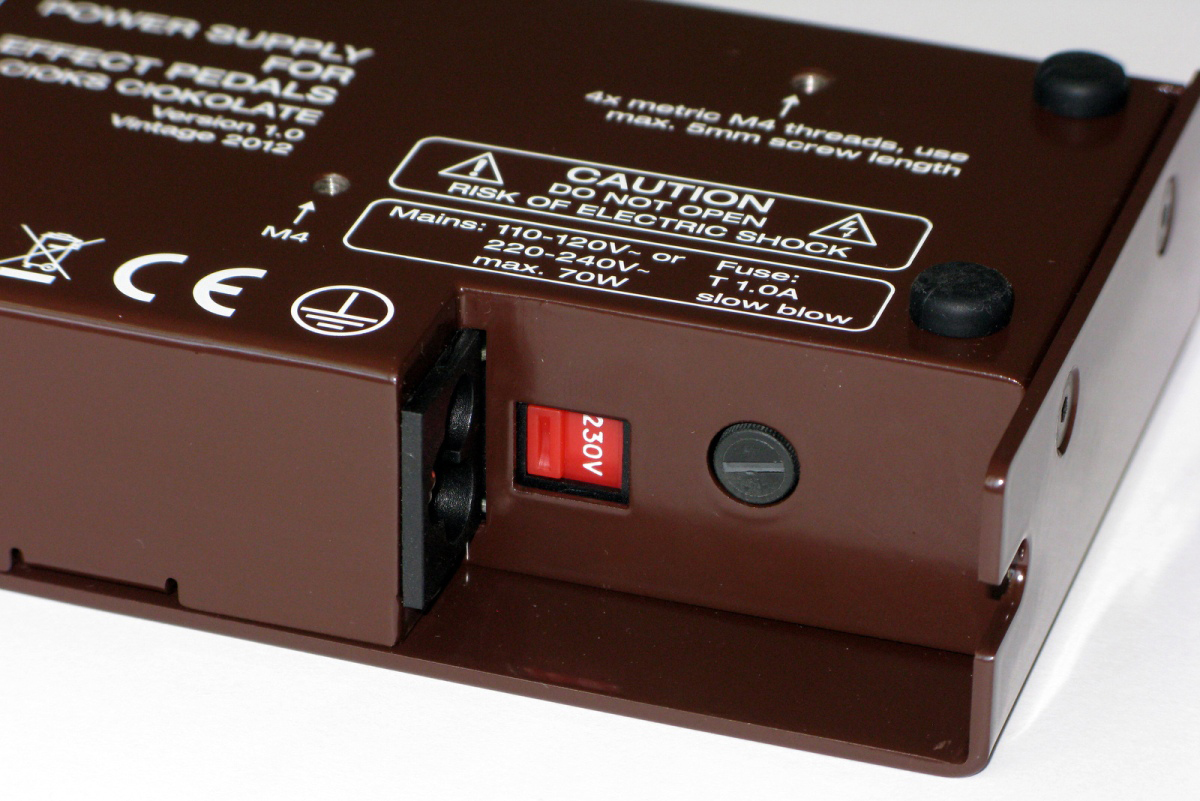

120 or 230V mains voltage operation

a total of 24 Flex cables included

Split Flex and 3-way Daisy chain Flex both for powering more than one pedal of a single outlet included

Stack Flex and Serial Adapter Flex for powering a 18, 24 or 40V pedals using two isolated outlets included

Flex cable for Electro-Harmonix vacuum tube pedals included

durable enclosure with bottom made of 1.3mm steel for stability and 2.0mm aluminium top for better cooling and lower weight

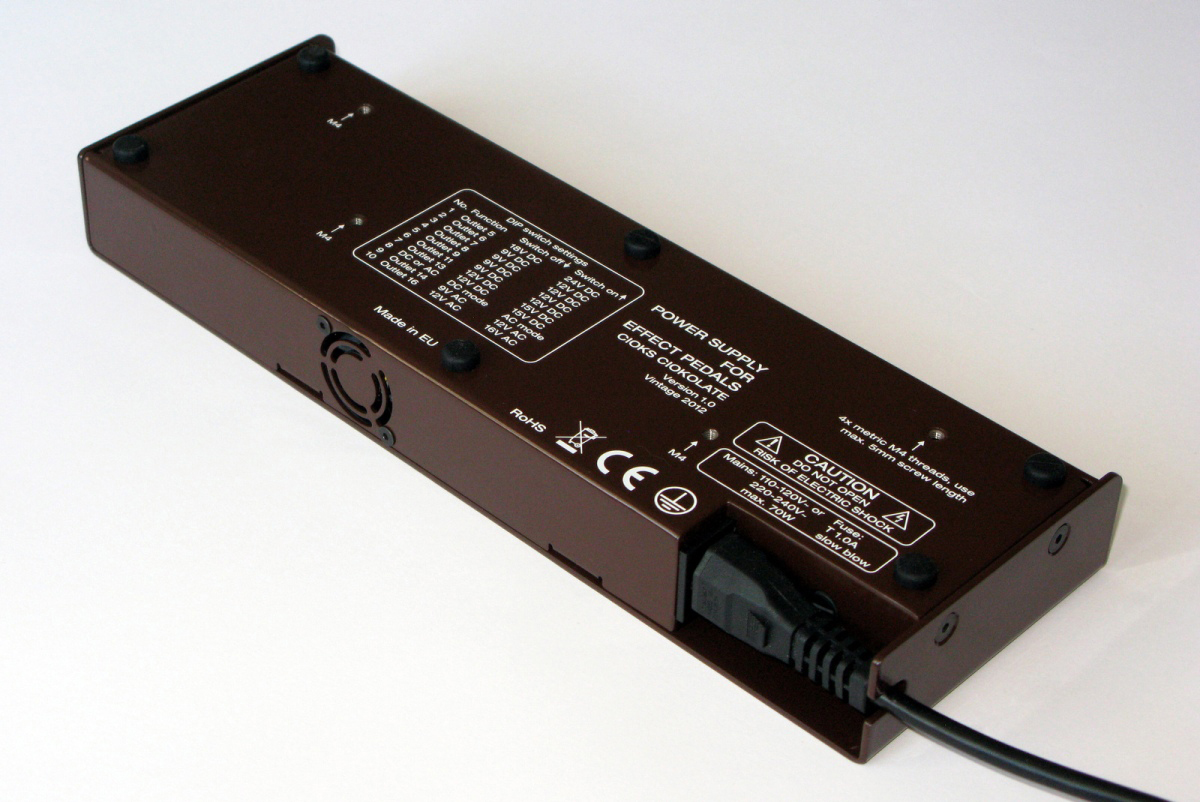

silent microprocessor controlled fan to ensure optimal operating temperature for long term reliability

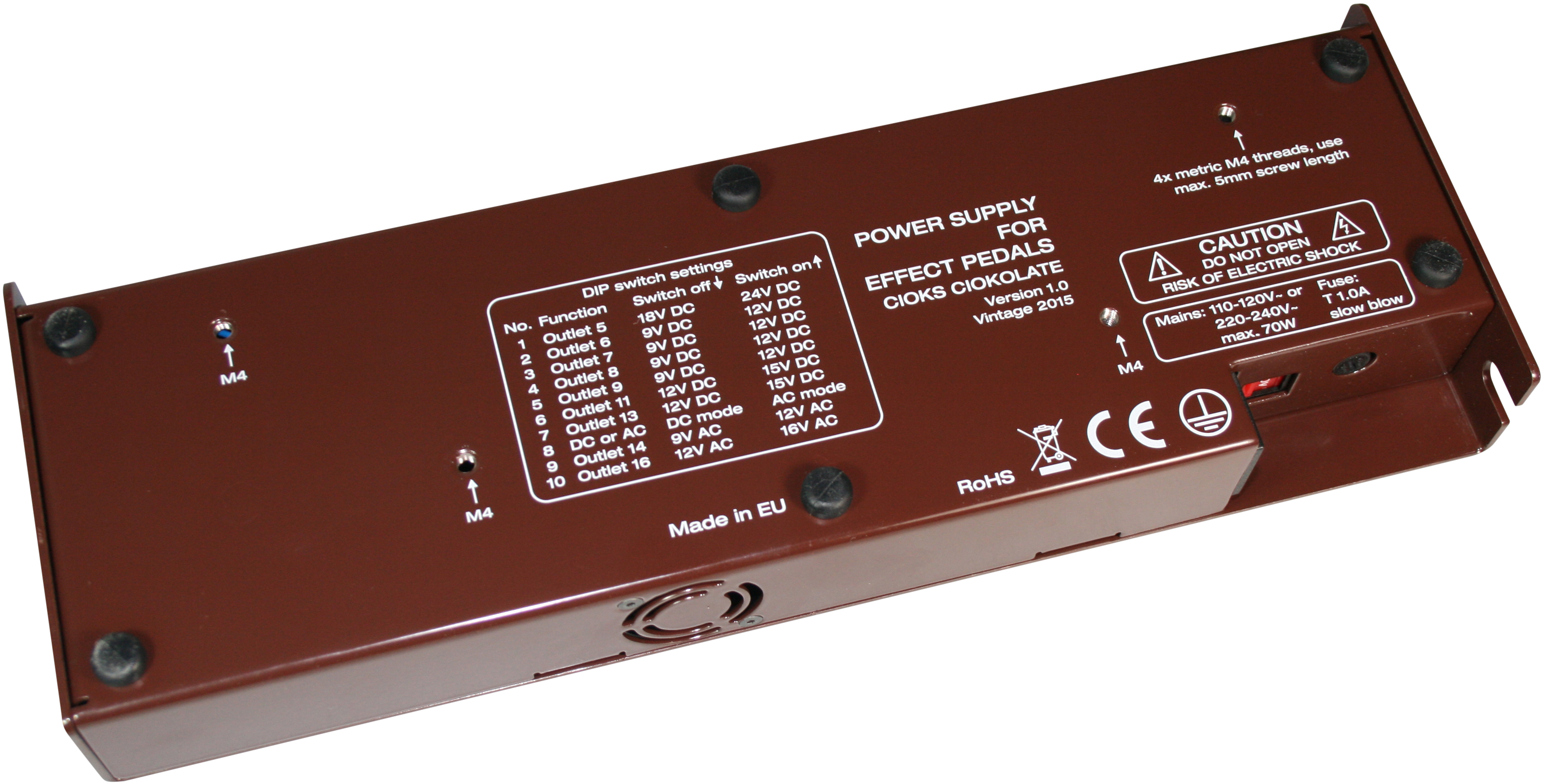

complete mounting kit for pedal boards included (two mounting brackets and all the needed screws are included, no need for taller feet with PT-3 or PT-PRO)

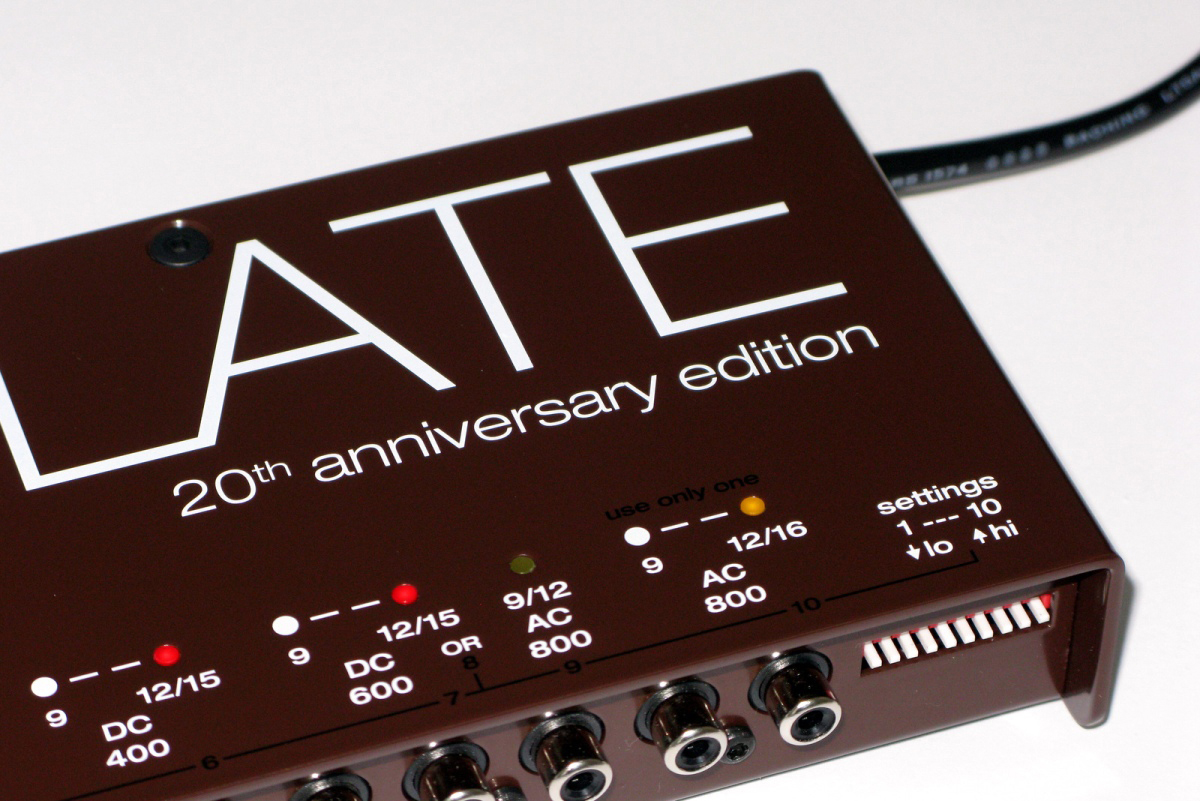

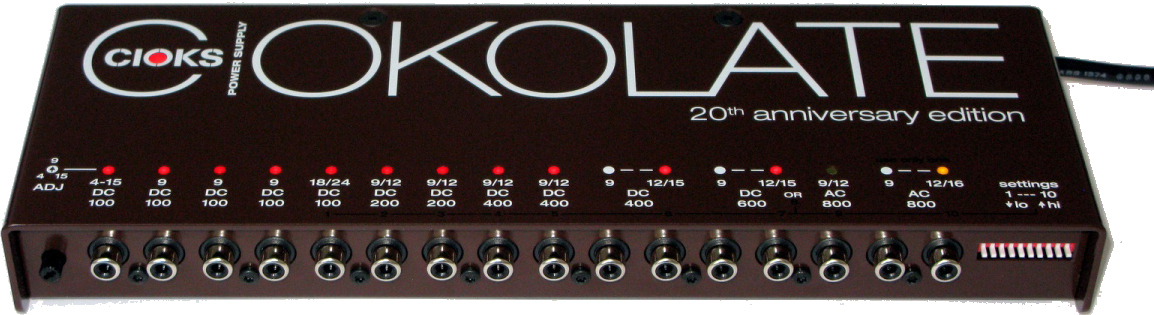

Specifications:Outlet 1: 4-15V DC adjustable / 100mA

Outlet 2-4: 9V DC / 100mA each

Outlet 5: 18 or 24V DC / 100mA

Outlet 6-7: 9 or 12V DC / 200mA each

Outlet 8-9: 9 or 12V DC / 400mA each

Outlet 10-11: 9 and 12 or 15V DC / 400mA

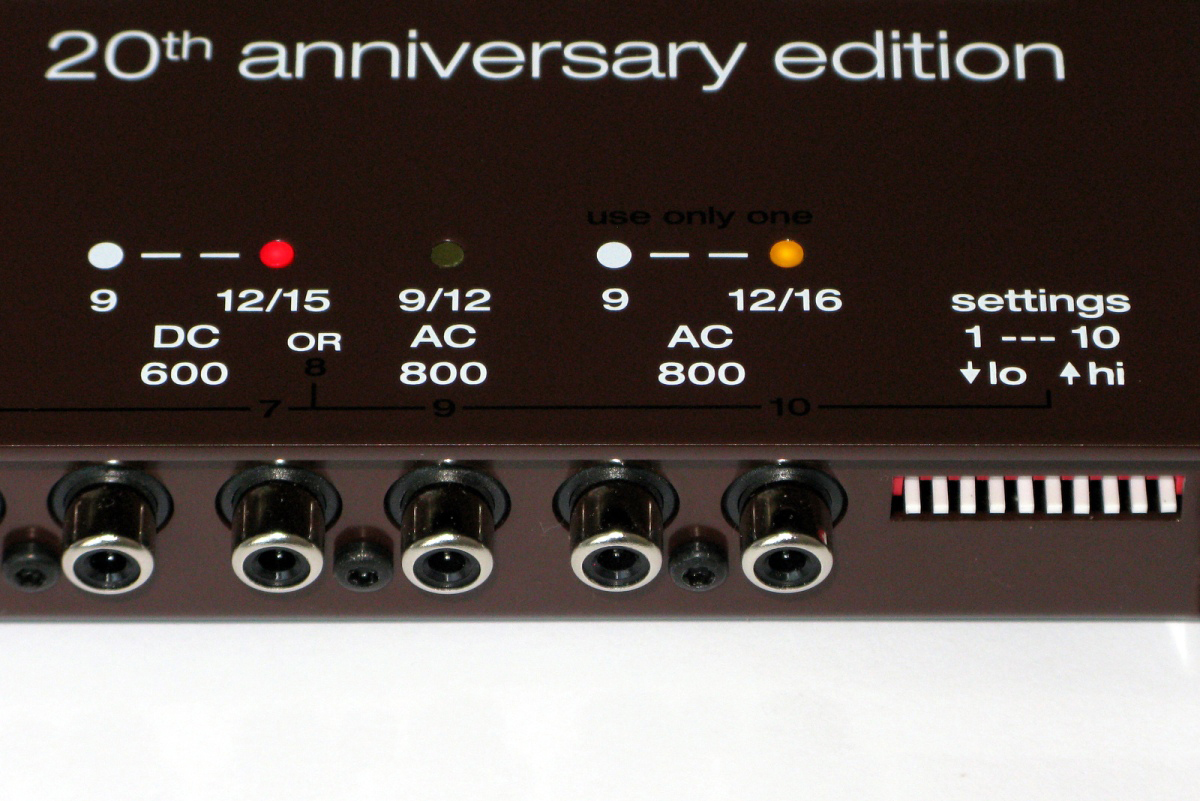

Outlet 12-13: 9 and 12 or 15V DC / 600mA* (only one of these two sections can be used)

Outlet 14: 9 or 12V AC / 800mA* (only one of these two sections can be used)

Outlet 15-16: 9, 12 or 16V AC / 800mA

Size: 292x98x35mm (excl. rubber feet)
