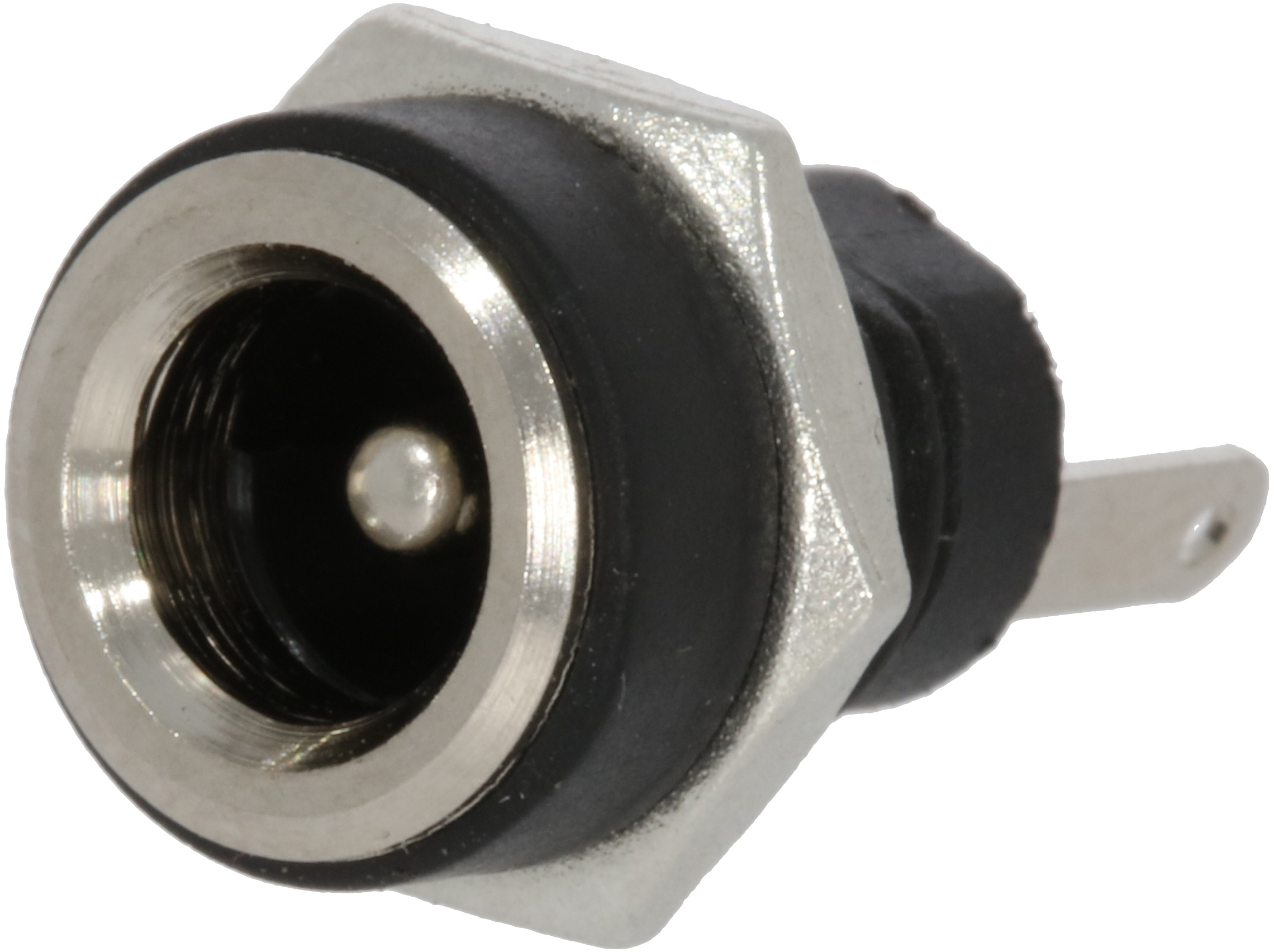

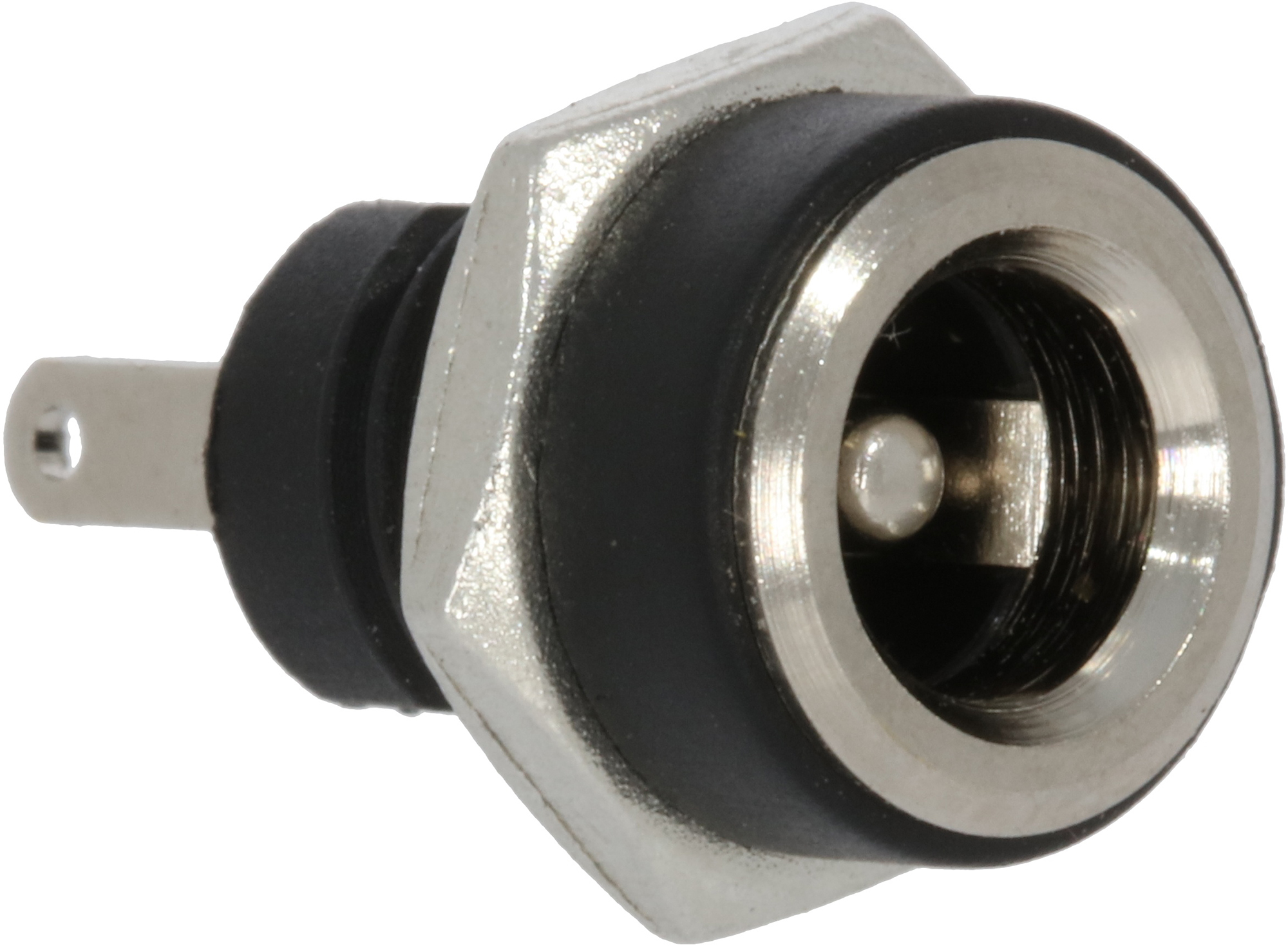

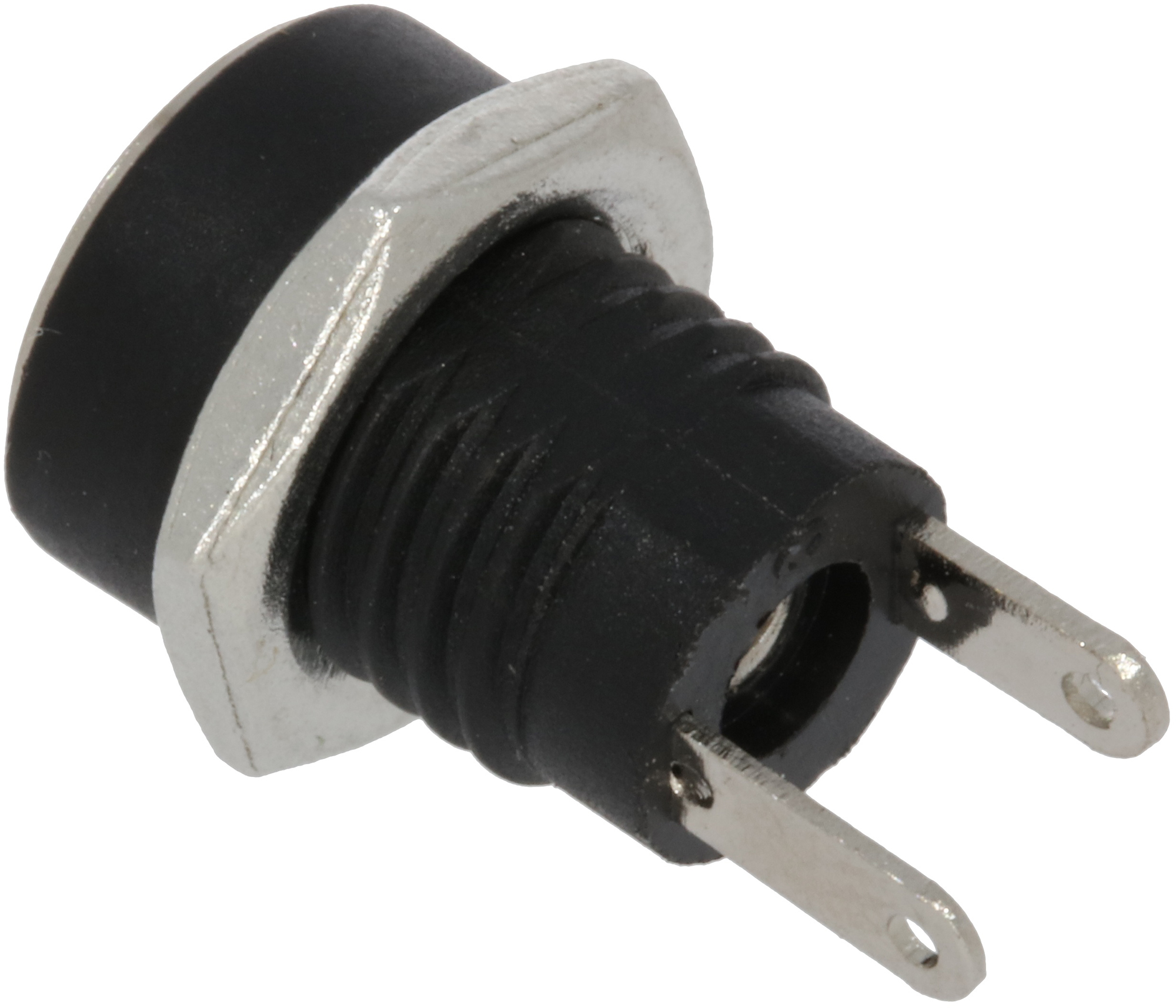

Lumberg PSU 1614-23

Lumberg PSU 1614-23
Chassis mount power supply jack with solder lugs

Specifications:

  • Temperature range -20 °C..+70 °C
  • Body material: PA
  • Contact pin material: CuZn, nickeled
  • Contact spring material: CuSn, nickeled
  • Solder contact material: CuZn, nickeled
  • Nut material: steel, nickeled
  • Diameter opening: 5,7 mm
  • Diameter center pin: 2,0 mm
  • Insertion force: 30 N
  • Withdrawal force: 3–30 N
  • Mating with power supply plugs of 2,1mm center hole diameter
  • Mating cycles: ? 5000
  • Contact resistance: 30 M Ohm
  • Nominal power: 0,5 A
  • Nominal voltage: 12 V DC
  • Test voltage: 500 V/60 s
  • Insulation resistance: 108 Ohm

    • SKU SKU 31274
    Weight 3,00 g
    360 Image 360 degrees image
    Manufacturer Lumberg Holding GmbH & Co. KG, Im Gewerbepark 2, 58579 Schalksmühle, Deutschland, info@lumberg.com
    Our price: €1,26
    including VAT 19% , [plus shipping]
    Quantity Price*
    5-9 Items €1,23
    10-24 Items €1,13
    25-49 Items €1,07
    50-99 Items €1,01
    100-249 Items €0,95
    250-499 Items €0,89
    500+ Items €0,83

    *Note: including VAT , [plus shipping]

     Delivery time: 4-5 days*
