SCR Audio PA-5,6uF 250V

SCR Audio PA-5,6uF 250V

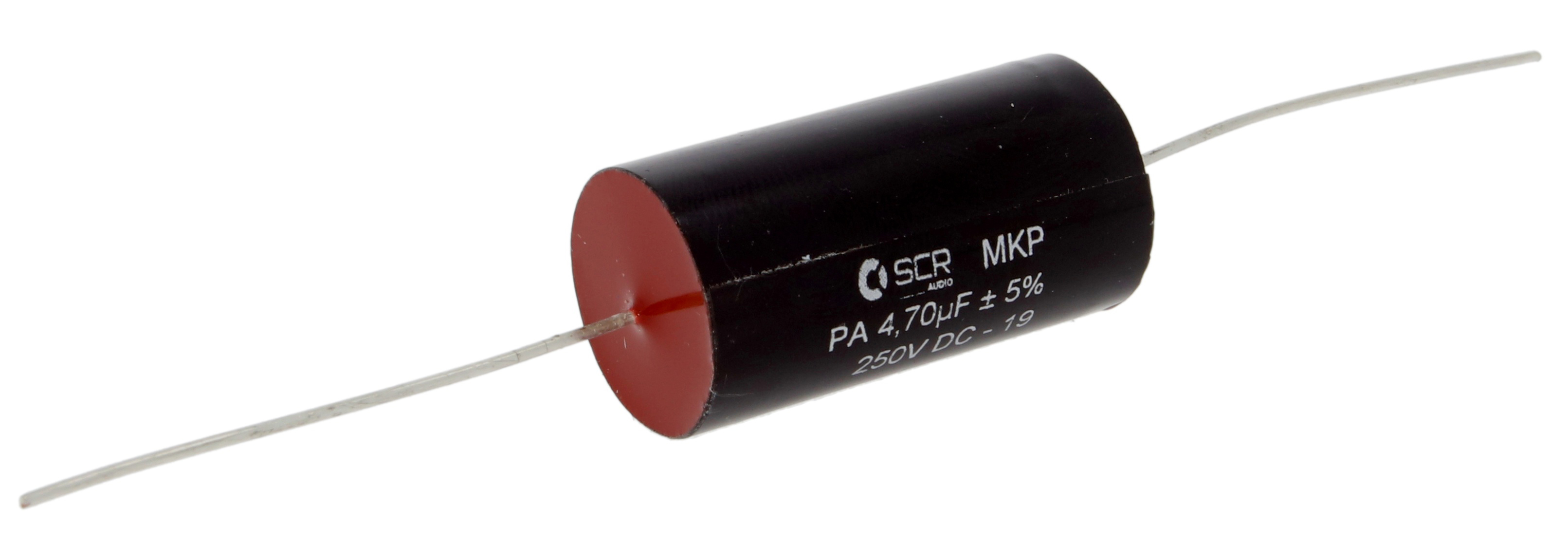

SCR audio capacitors are self healing and non inductive capacitors with a small dimensions. The axial construction significantly enhances their performance and reduces their loss factor. They are ideal for high fidelity audio (such as high-end loudspeakers and tube amplifiers).

Specifications:

  • Dielectric : metallized polypropylene MKP
  • Housing : axial leads, wrapped with PVC insulating tape, sealed at the ends with resin.
  • Terminals : tinned copper wires
  • Operating temperature : -25' to +85'C
  • Standard: in accordance with IEC 60384-1
  • Capacitance: 5,6uF
  • Dimensions (LxD): 32x18mm

    • SKU SKU 32646
    Weight 10,00 g
    360 Image 360 degrees image
    Our price: €8,33
    including VAT 19% , [plus shipping]
     Delivery time: 4-5 days*
