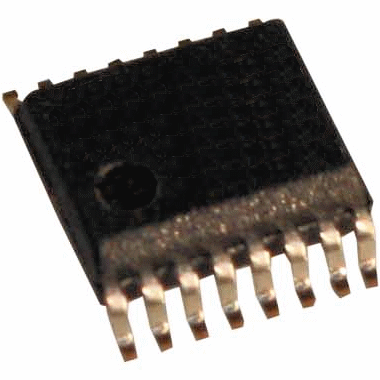

THAT 1606Q16-U

The THAT 1606 and 1646 are a new generation of monolithic audio differential line drivers offering improved performance over conventional cross-coupled designs. Based on a high-performance, fully differential opamp and laser-trimmed thin-film resistors, both families exhibit low noise and distortion, high slew rate, and wide output swing. The parts are stable when driving difficult loads, and have short-circuit protected outputs

Specifications:

Balanced, transformer-like floating output

OutSmarts technology improves clipping into single-ended loads

Stable driving long cables and capacitive loads

High output: 18Vrms into 600

Low noise: -101 dBu

Low distortion: 0.0007% @ 1kHz

Industry-standard pinout
