THAT 2162Q16-U

THAT 2162 contains two high-performance Blackmer voltage-controlled amplifiers (VCAs). With two opposing-polarity, voltage-sensitive control ports, they offer wide-range exponential control of gain and attenuation with low signal distortion. Both VCAs are trimmed at wafer stage to deliver low distortion and control-voltage feedthrough without further adjustment. However, external symmetry adjustment is possible to further optimize distortion and control feedthrough for critical applications.

Specifications:

Two Independent Channels

Wide Dynamic Range: >118 dB

Wide Gain Range: >130 dB

Exponential (dB) Gain Control

Low Distortion: 0.05% typ.

Wide Supply Voltage Range:+/-2.25V ~+/- 16V

Low Supply Current: 5.2 mA typ. (+/- 15V) 3 mA typ. (+/-5V)

Dual Control Ports (pos/neg)

Low Cost

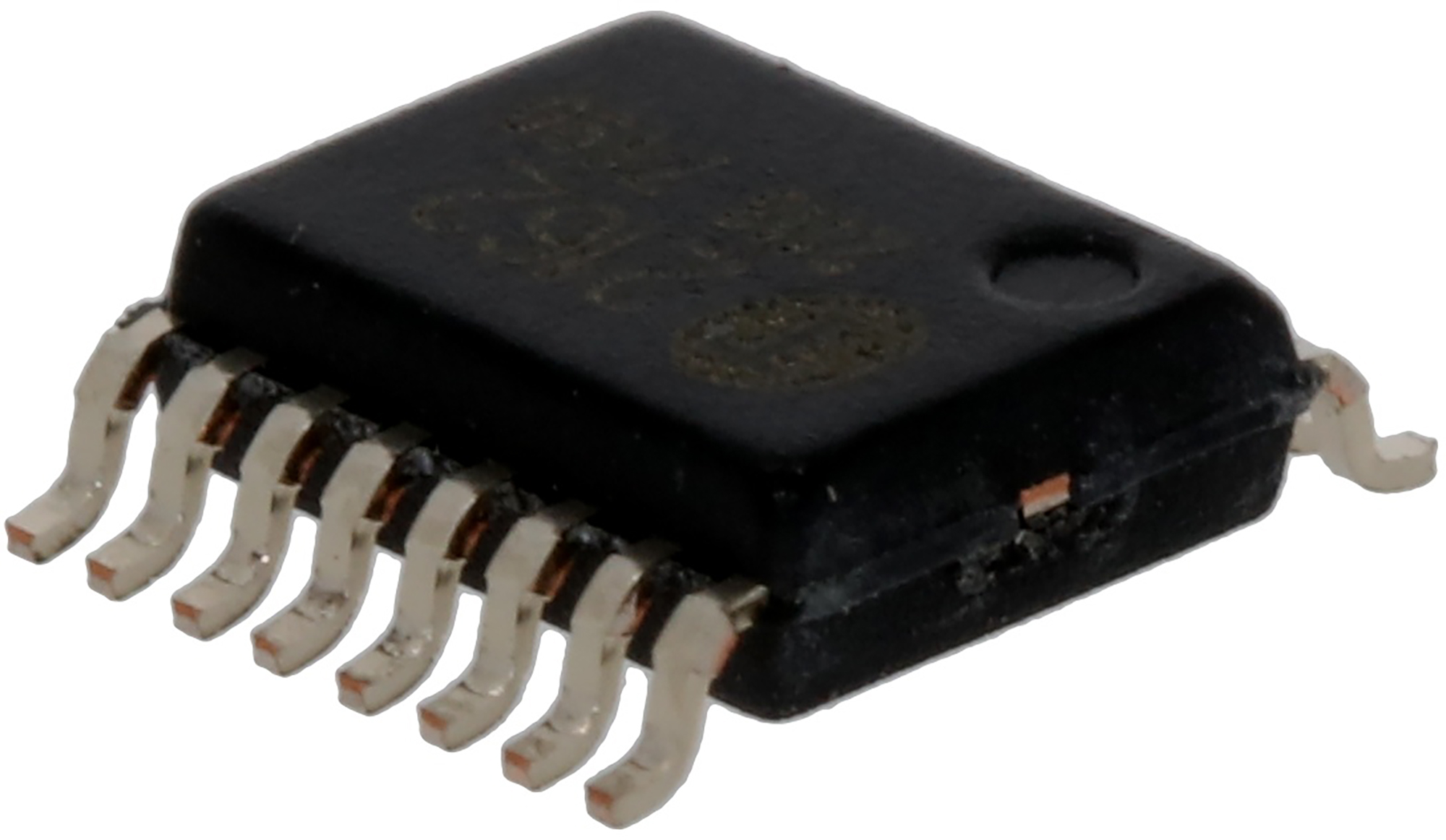

Small Package (16-pin QSOP)
