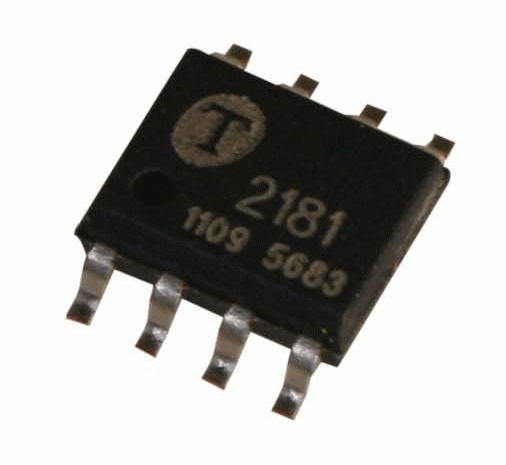

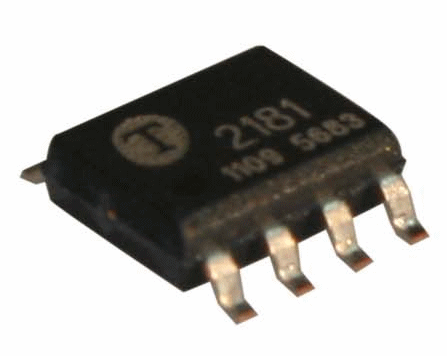

THAT 2181CS08-U

THAT 2181CS08-U

(0 reviews)

THAT 2181 Series integrated-circuit voltage controlled amplifiers (VCAs) are very high performance current-in/current-out devices with two opposing-polarity, voltage-sensitive control ports. They offer wide-range exponential control of gain and attenuation with low signal distortion. The parts are selected after packaging based primarily on after-trim THD and control-voltage feedthrough performance.

Specifications:
  • Wide Dynamic Range: >120 dB
  • Wide Gain Range: >130 dB
  • Exponential (dB) Gain Control
  • Low Distortion: ~ 0.0025 % (typical 2181A)~ 0.005 % (typical 2181C)
  • Wide Gain-Bandwidth: 20 MHz
  • Dual Gain-Control Ports (pos/neg)
  • Pin-Compatible with 2150-Series

  • SKU SKU 43313
    Weight 0,45 g
    Our price: 11,31
    including VAT 19% , [plus shipping]
    Quantity Price*
    3-5 Items 11,01
    6-9 Items 10,71
    10+ Items 10,53

    *Note: including VAT , [plus shipping]

     Delivery time: 2-3 weeks*
