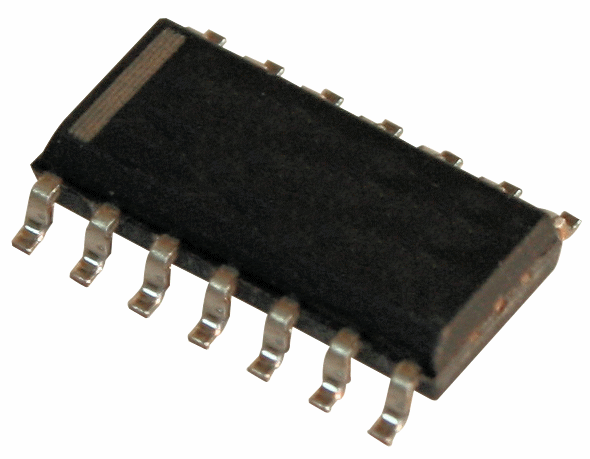

THAT 340S14-U

The THAT 300, 320 and 340 are large geometry, 4-transistor, monolithic NPN and/or PNP arrays. They exhibit both high speed and low noise, with excellent parameter matching between transistors of the same gender. Typical base-spreading resistance is 25ohms for the PNP devices (30ohms for the low gain NPNs), so their resulting voltage noise is under 1 nV/Hz. This makes the 300 series ideally suited for low-noise amplifier input stages, log amplifiers, and many other applications.

Specifications:

4 Matched NPN Transistors

4 Matched PNP Transistors

2 Matched PNP and 2 Matched NPN Transistors

Low Voltage Noise

High Speed

500u V matching between devices

Dielectrically Isolated for low crosstalk and high DC isolation

36V V CEO
