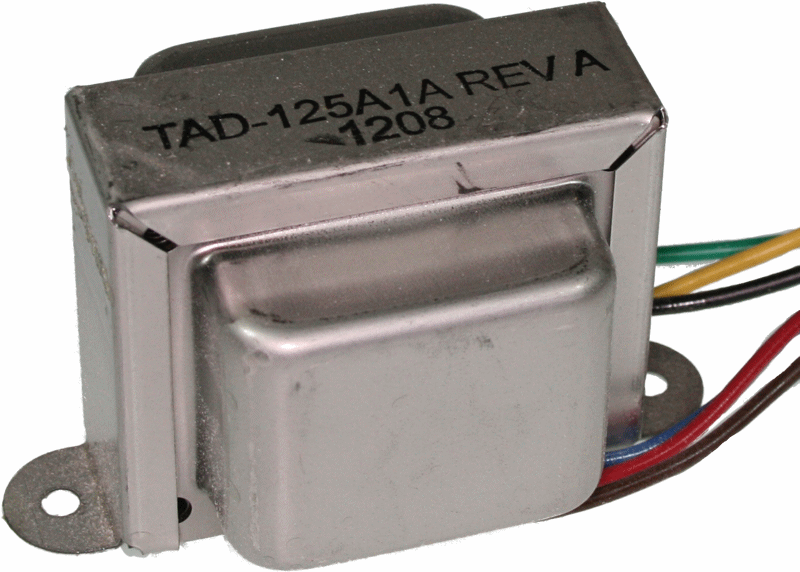

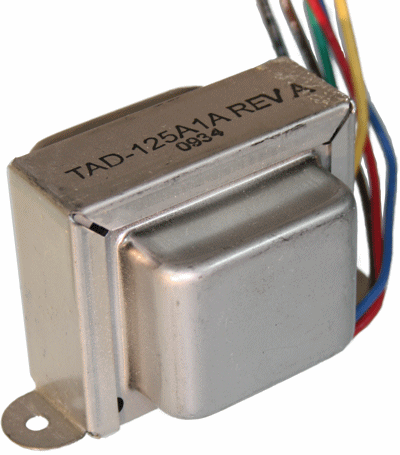

Transformer T-OP-125A1A

Transformer T-OP-125A1A
Direct replacement Output Transformer, 20W. Impedance: 8 Ohm. Tubes: 2 x 6V6GT. Application: Fender Deluxe Tweed (until model 5E3 - 1959).

Primary:
A1 Blue
B+ Red
A2 Brown

Secondary:
8 Ohms Yellow
0 Ohms Black

  • Lamination: 2 5/8 inch
  • Stack:23/32 inch
  • Primary impedance: 6,7kOhm

    • SKU SKU 30373
    Weight 4.000,00 g
    Manufacturer Tube Amp Doctor Musikhandels GmbH, Weinbrennerstr. 1, 67551 Worms, https://www.tubeampdoctor.com/
    Our price: €75,54
    including VAT 19% , [plus shipping]
     Delivery time: 4-5 days*
