Transformer T-OP-HW100A

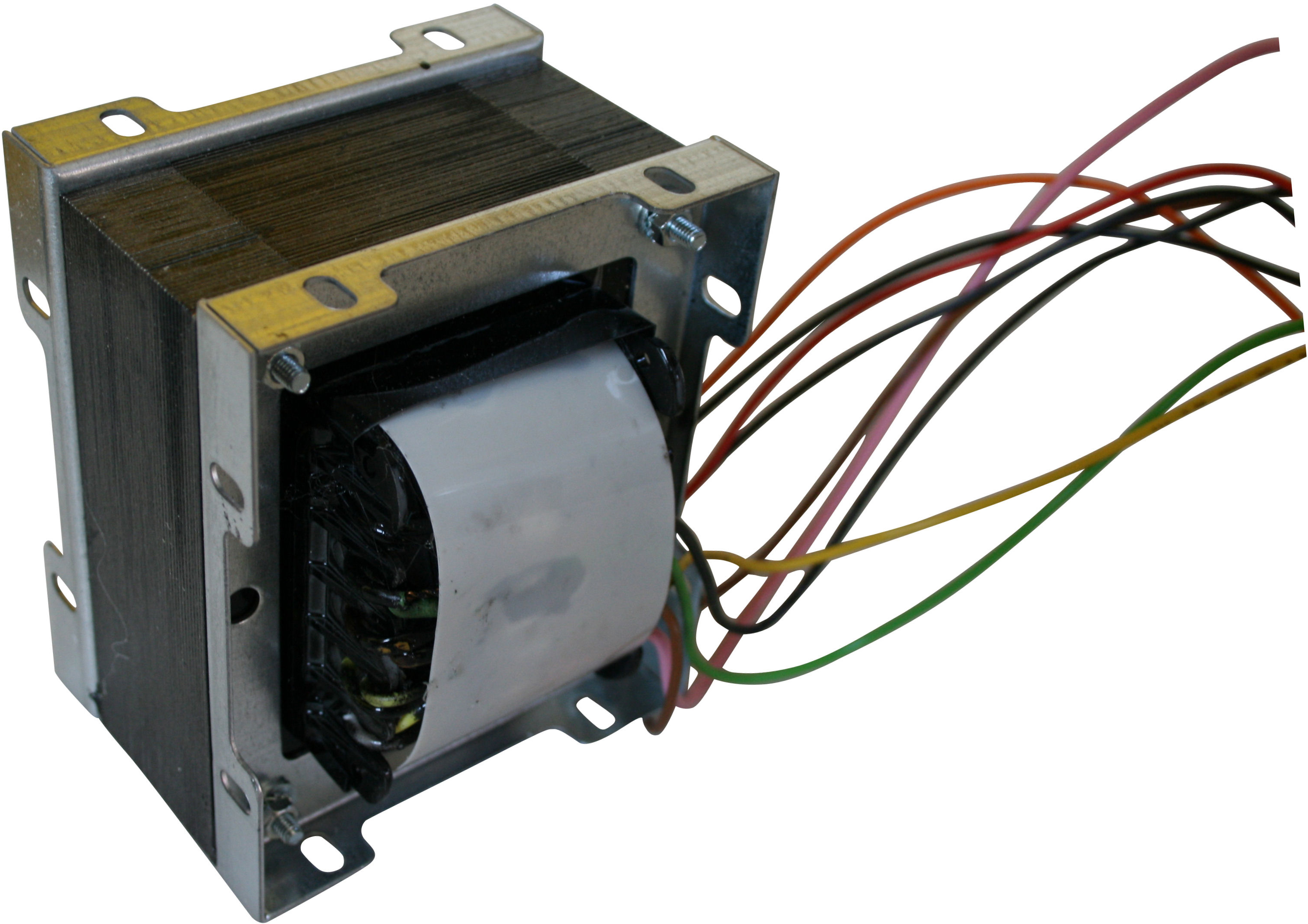

Direct replacement Output Transformer, 100W. Impedance: 4, 8, 16 Ohm. Tubes: 4 x EL34. Application: Hiwatt Custom 100, TG5479, with 100V Output.

Output Transformer for: Hiwatt Custom 100, DR103, TG5479 includes the 100V output winding.
perfect Partridge clone

NEW VERSION:

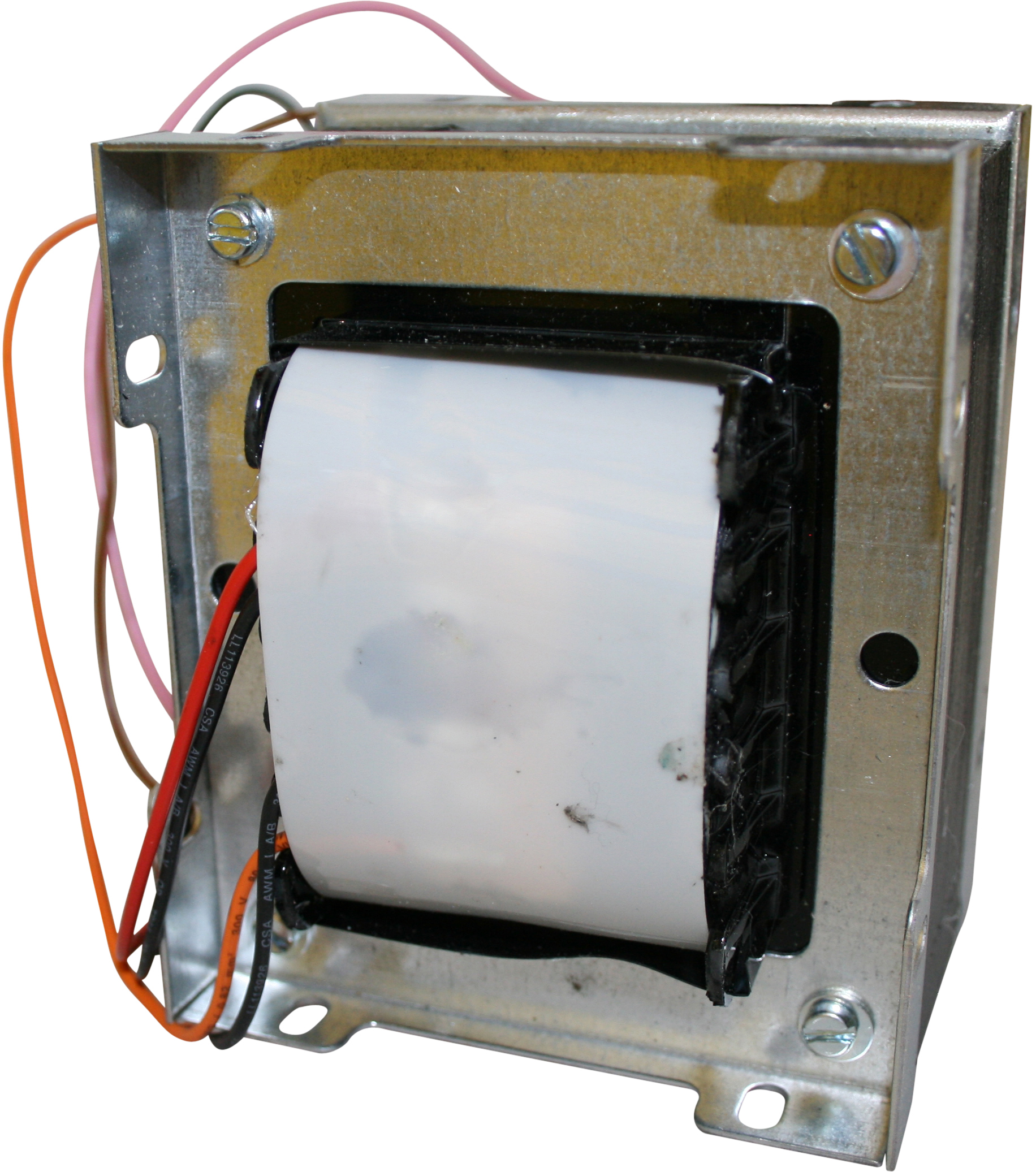

with mounting bracket and correct lamination size of 4 1/2 inch
mounting on 63.5mm x 57.5mm

Custom made by Dagnall!

Raa approx. 1.8k ohms


Primary:
A1 Red
B+ Black
A2 Orange

Secondary:
100V Pink
16 Ohms Yellow
8 Ohms Brown
4 Ohms Green
0 Ohms Black
