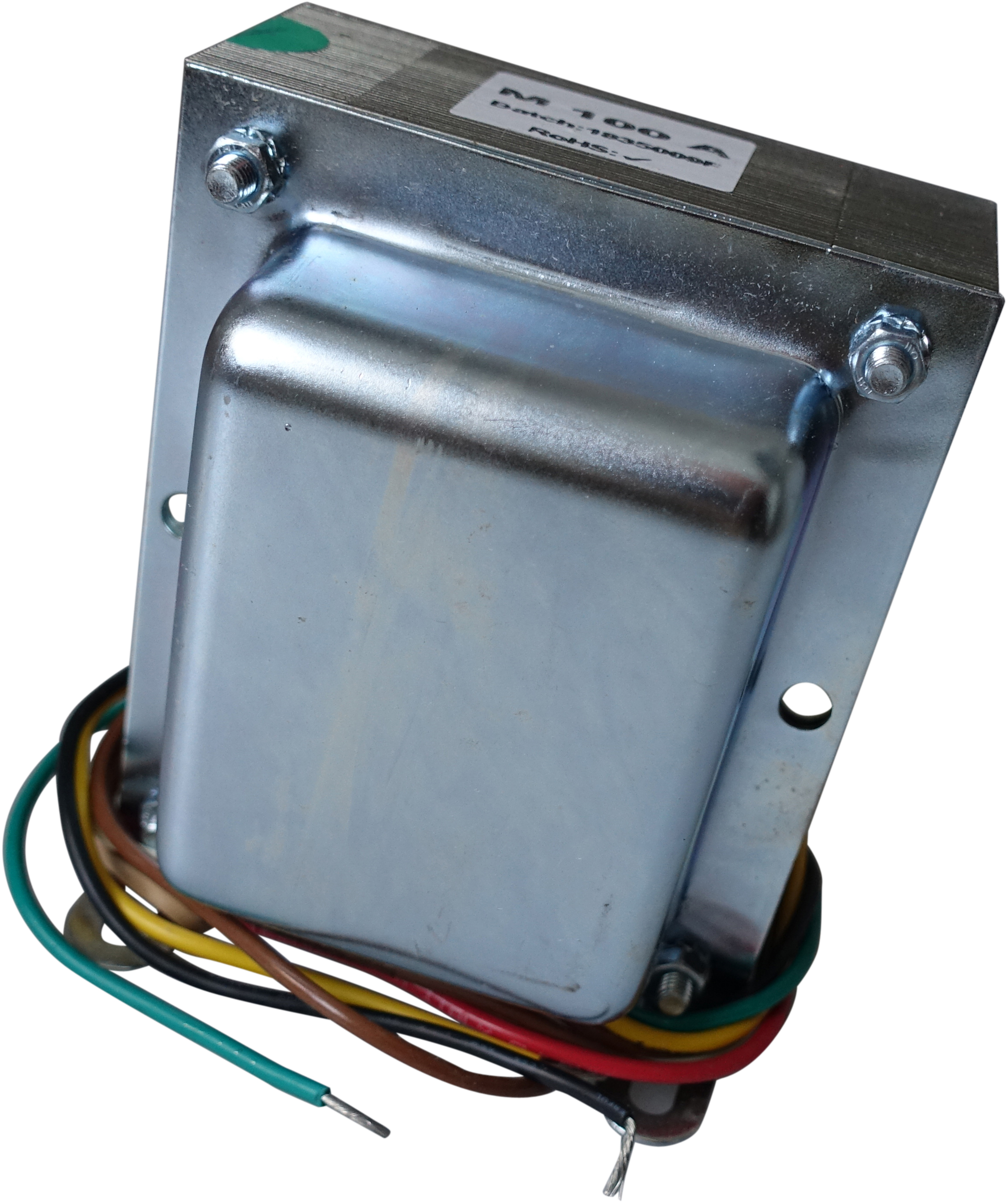

Transformer T-OP-M100A

Output Transformer for 4x EL34 to 4, 8, 16 Ohms, suitable for all 100W models from 1966 on. JMP 100W models, JCM800 (2203, 2210, 1959) and 6100 Heads. Modeled after an original Transformer from a 68 Super Lead.

Also replaces C2668 and C1998. Suitable for Marshall 1959HW (Handwired Series). Mounting on 78.5mm x 67mm

Primary:
A1 red
HT white
A2 brown

Secondary:
0 Ohm brown
4 Ohm black
8 Ohm yellow
16 Ohm green
