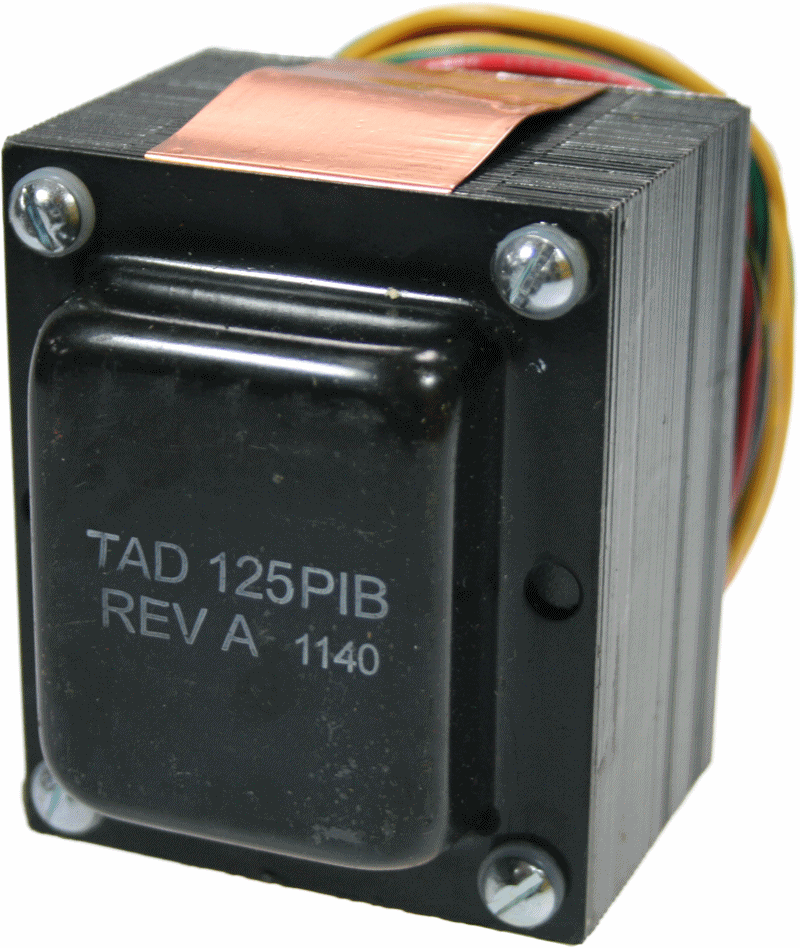

Transformer T-PWR-125P1B

Direct replacement Power Transformer. Application: Fender Bronco, Champ , Vibro-Champ (alle AA764 Modelle), Princeton Reverb. Made in USA.

125P1B (=020873/022772) Mainstranformer for Fender Bronco, Champ, Vibro-Champ (CBS models), Princeton Reverb (AA1164, B1270), Princeton Amp (6G2, AA964)
fits also 65 Princeton Reverb Reissue and '68 Custom Princeton Reverb (007-5167-000)
Replaces 014077 and 010020
Can also be used for the obsolete 66079-B power transformer (Tweed Vibrolux 5E11, 5F11). Please change bias resistor to 100K/2W when replacing the 66079-B with 125P1B.
Upgrade for Hammond 290AEX
For the Tweed Champs like 5F1 etc. please use the 6500 transformer!
Improved Version with fatter Stack and high quality lamiantion!
comes without mounting nuts, but originals will fit!
Lamination 3 inch, Stacking 2 1/16 inch
Mounitng on 2 inch x 2 1/2 inch
Supports 6L6 tubes in Princetons too! CUSTOM MADE IN USA

Primary: #73927
0V Black
220V Black/Yellow
230V Green/Black
240V Red/Black

Screen: Orange (connect to ground)

Secondary:
325V@90mA Red
0V Red/Yellow
325V Red

3,15V@3A Green
0V Green/Yellow
3,15V Green

5V@3A Yellow
0V Yellow
