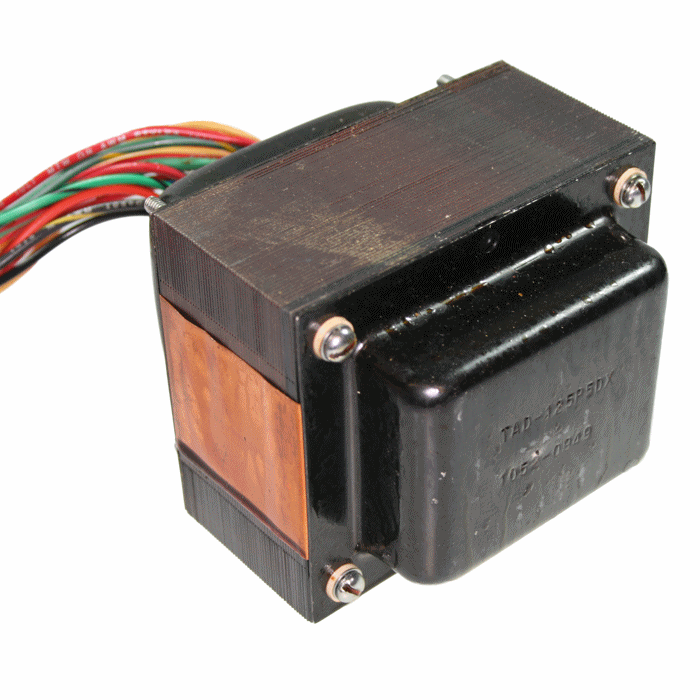

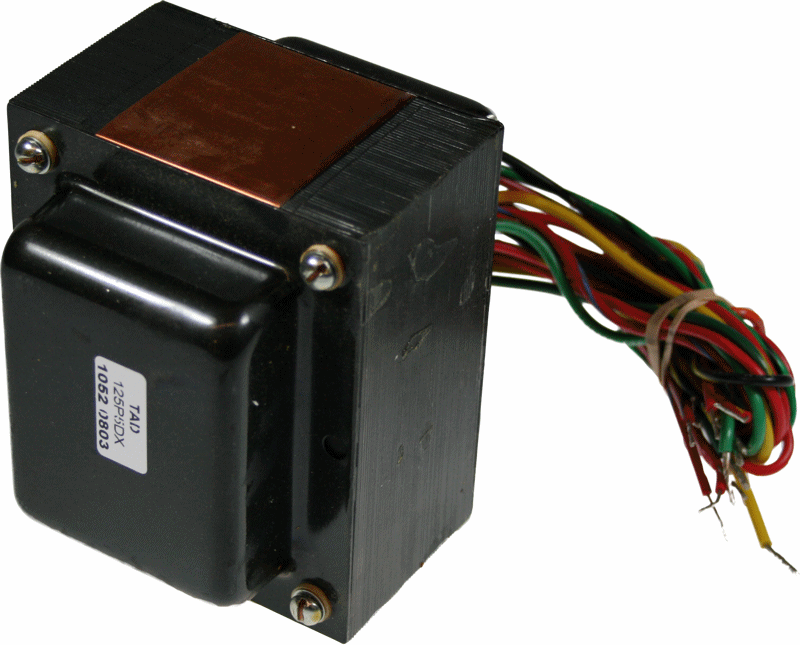

Transformer T-PWR-125P5DX

Direct replacement Power Transformer. Application: Fender Super Reverb, Pro Reverb, Bassman 50, Pro Amp.

Mains transformer for:
Fender Super Reverb (Blackface and Silverface with 45W)
Fender Vibroverb
Fender Pro Reverb (Blackface and Silverface with 45W)
Fender Bassman 50
Fender Bassman TEN (50W Version)
Fender Bassman 6G6, 6G6-A, 6G6-B, AA165, AA864, AB165, AC568, AA371
Fender Bandmaster Reverb, TFL5005 etc.

fits also Fender 64 Vibroverb Custom and 65 Super Reverb Reissue (replaces 005-6920-000)

can also be used as an replacement for Fender transformer #68249 in Fender Bandmaster 6G7and 6G7-A (HV: use 365V winding of the 125P5DX)
substitutes also the 125P7DX for the Fender Bassman 6G6-A

Mesa Boogie 60W Models: Mk I, II, III without Fan. (571060).
Replacement for 120V transformer (561060) 00-162310 and X62-162318

replaces also 022806 + 022822 (125P7DX)

Supports the Fender 30 014955 transformer: use P7 tap for the 5U4 rectifier tube!
Does NOT fit Fender Super Reverb and Pro Reverb with 70W, please look for transformer 013917

comes without mounting nuts, originals will fit!
Lamination: 4 1/8 inch, Stacking 2 inch
US-made!

Primary:
0V BLACK
220V BLACK/YELLOW
230V GRN/BLK
240V RED/BLK

Screen: Orange

Secondary:
365 V(P5)@170mA RED
335(P7)@170mA RED/ORG
55V RED/BLU
CT RED/YEL
335V(P7) RED/ORG
365V (P5) RED

3,15V GRN @4A
CT GRN/YEL
3,15V GRN

5V (P5) YEL @3A
0V YEL

Mounting on 2 3/4 inch x 3 7/16 inch

Very versatile due to the two seperate HV windings!
The P7 winding can also be used in conjunction with a tube rectifier (5U4GB) to generate a very low B+ of about 400V
