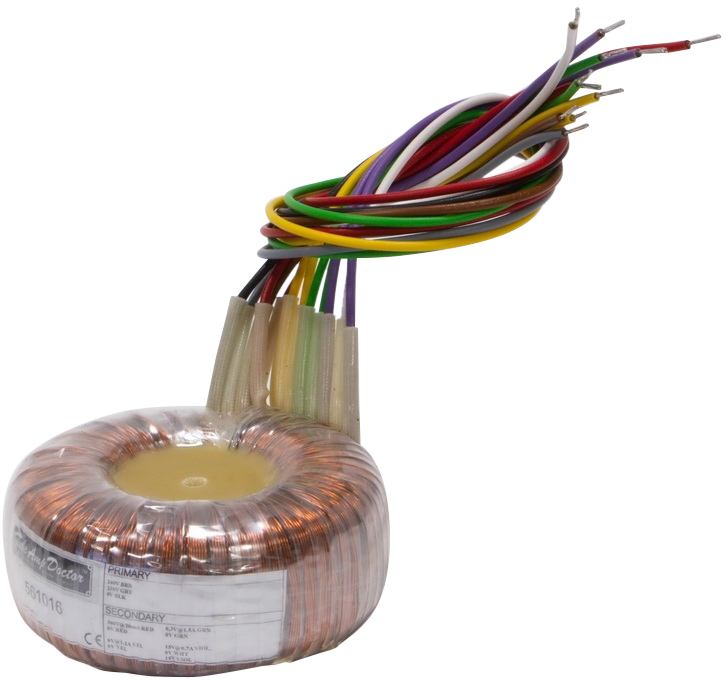

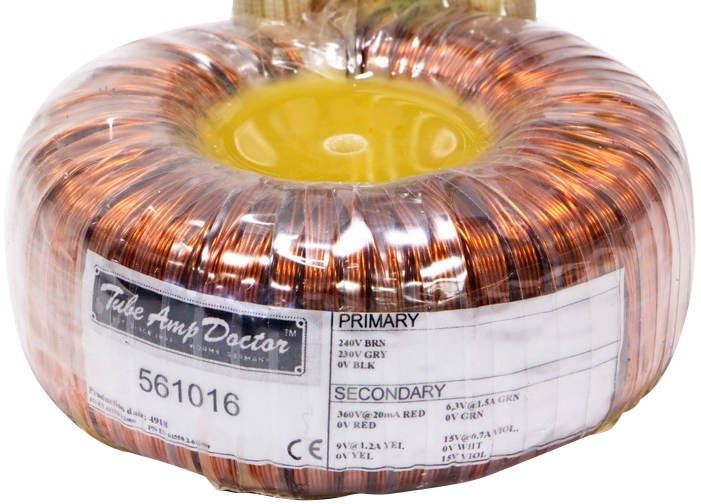

Transformer T-PWR-561016

Direct replacement Power Transformer. Application: Mesa Boogie Triaxis.

Export version, replaces the 120V domestic version (561011)
diameter approx. 80mm, height approx. 36mm

primary:
240V BROWN
230V GREY
0V BLACK

Secondary
360V@20mA RED
0V RED

9V@1.2A YELLOW
0V YELLOW

6,3V@1.5A GREEN
0V GREEN

15V@0.7A VIOLET
0V WHITE
15V VIOLET

For conversion of a 120V unit You must change the fuse, the MOV and both blue primary capacitors (47nF)
