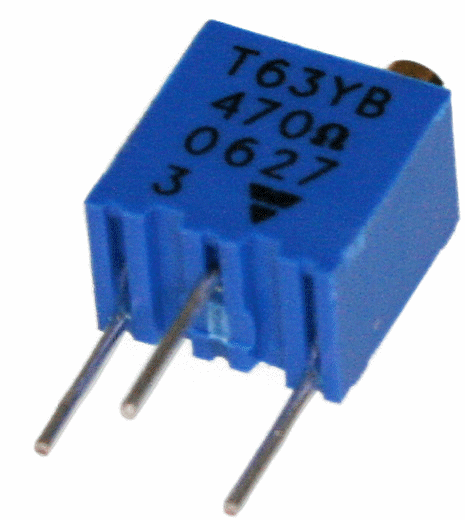

Trimpot T63-YB 100k

Trimpot T63-YB 100k

(0 reviews)

Precision trimpot, made by Vishay.

  • Dimensions: 6,8x6,8x5,0mm
  • Resistance tolerance: 10%
  • Material: Cermet
  • Protection class: IP67

  • Number of mechanical turns: 15 (5)
  • Actuation force, max.: 1,0Ncm
  • Weight, max.: 0,5g

  • Taper: linear
  • Power rating (70' Celsius): 0,25W
  • maximum voltage: 250V
  • Break-through-voltage (RMS): 1000V
  • Isolation resistance (500V DC): 10 x exp(6) MW
  • Temperature coefficient: 50ppm/' Celsius
  • Temperature range: -55..?' Celsius
  • Climate category: 55/125/56
  • Number of turns (electrical): 13 (2)
  • Norms: CECC41100, MIL-R_22097

    • SKU SKU 25507
    Weight 0,50 g
    360 Image 360 degrees image
    Our price: €2,21
    including VAT 19% , [plus shipping]
    Quantity Price*
    10-24 Items €2,13
    25-49 Items €2,05
    50+ Items €1,98

    *Note: including VAT , [plus shipping]

     Delivery time: 4-5 days*
