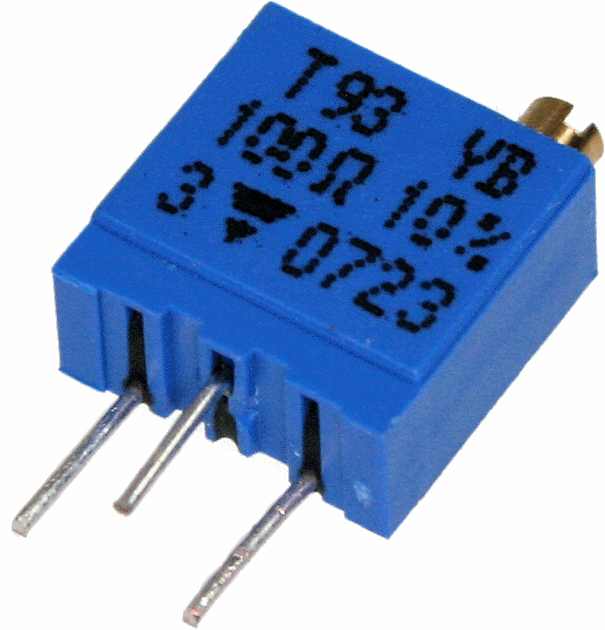

Trimpot T93-YB 10 Ohm

Trimpot T93-YB 10 Ohm

(0 reviews)

Precision trimpot, made by Vishay.

  • Dimensions: 9,7x9,7x4,8mm
  • Series: E3
  • Resistance tolerance: 10%
  • Material: Cermet
  • Protection class: IP67

  • Number of mechanical turns: 22 (5)
  • Actuation force, max.: 1,5Ncm
  • Weight, max.: 1,2g

  • Taper: linear
  • Power rating (70' Celsius): 0,5W
  • maximum voltage: 250V
  • Break-through-voltage (RMS): 1000V
  • Isolation resistance (500V DC): 10 x exp(6) MW
  • Temperature coefficient: 70ppm/' Celsius
  • Temperature range: -55..?' Celsius
  • Climate category: 55/100/56
  • Number of turns (electrical): 19 (2)
  • Norms: CECC41100, MIL-R-22097, LN

    • SKU SKU 25469
    Weight 1,20 g
    360 Image 360 degrees image
    Our price: €1,64
    including VAT 19% , [plus shipping]
    Quantity Price*
    10-24 Items €1,52
    25-49 Items €1,39
    50+ Items €1,27

    *Note: including VAT , [plus shipping]

     Delivery time: 4-5 days*
