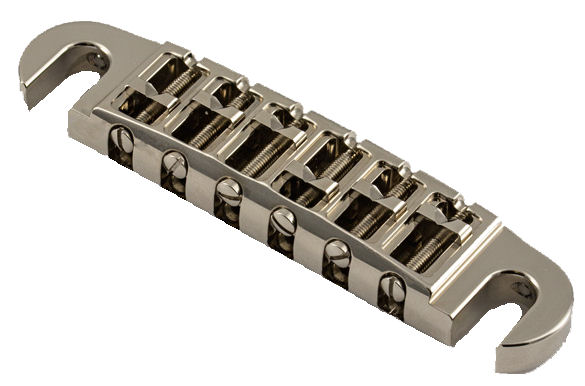

ABM 3024n aged

The professional adjustable Wraparound with a wide intonation range. String spacing: 52 mm, 82 mm pin spacing, 12 inch radius, 5/16 inch bolts with large heads. Using adjustable saddles lets you achieve a perfect intonation. In addition, it is possible to extend the entire intonation range by turning two allen screws. Due to the small height and further intonation range, the bridge is compatible with the Gibson Melody Maker and LP Junior. The wraparound 3024 can be used for both an angled, as for a straight installation. Milled from bell brass, nickel aged.

Notes:

ABM ships their 3024 wraparound bridges with 5/16 inch bolts/sleeves, since this is what is found on US made guitars. For Asian guitars, however, the M8 variant may be required (please see product ABM 30208-L).

Please use ABM studs with an ABM tailpiece! Third party studs may cause problems.

Usually do not try to replace the sleeves from existing guitars. If you do not have a suitable tool, this action can be difficult. In addition, the sleeves are often laquered in, therefore removal could result in lacquer cracking. The ABM bushings have a standard outer diameter of 13mm. This can greatly vary in an existing guitar (between 11 and 13mm). So please first check compatibility. The sound difference is already significant without a socket replacement.

r effect by a perfect string contact. String spacing: 52 mm, 81 mm pin spacing, 10 inch radius, 5/16 inch large head bolts, intonation fine setting by two allen screws possible so that the wraparound can be used for an angled or straight mounting.
