ABM 3710g

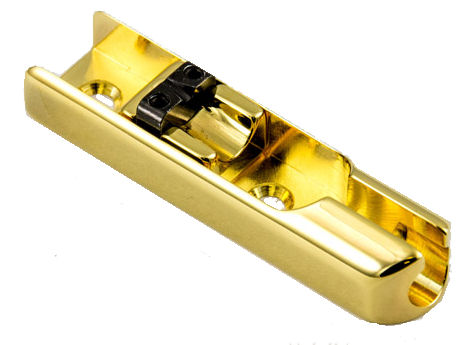

3D- Single Bridge for bass. The model 3710 is simple elegance in the functional core. The free arrangement can be easily multi-stringed instruments equip as desired. The bridge consists of the base body, which allows both strings mounting types: top load and string-thru-body. String spacing: Min. 15mm per single bridge. Made of Bell Brass, Gold.

The saddle is adjusted by an angle introduced lock screw for the intonation setup. The intonation range is more than adequate and the built-in height adjustment allows an adjustment path of +/- 2,25mm.
For the use of down-tunings and fanned frets scales with more than 7 strings can an offset mounting is required!
For installation as a string-thru model you will still need a corresponding number of string ferrules (item ABM 7885). The maximum string thickness must not exceed 3,5mm.
