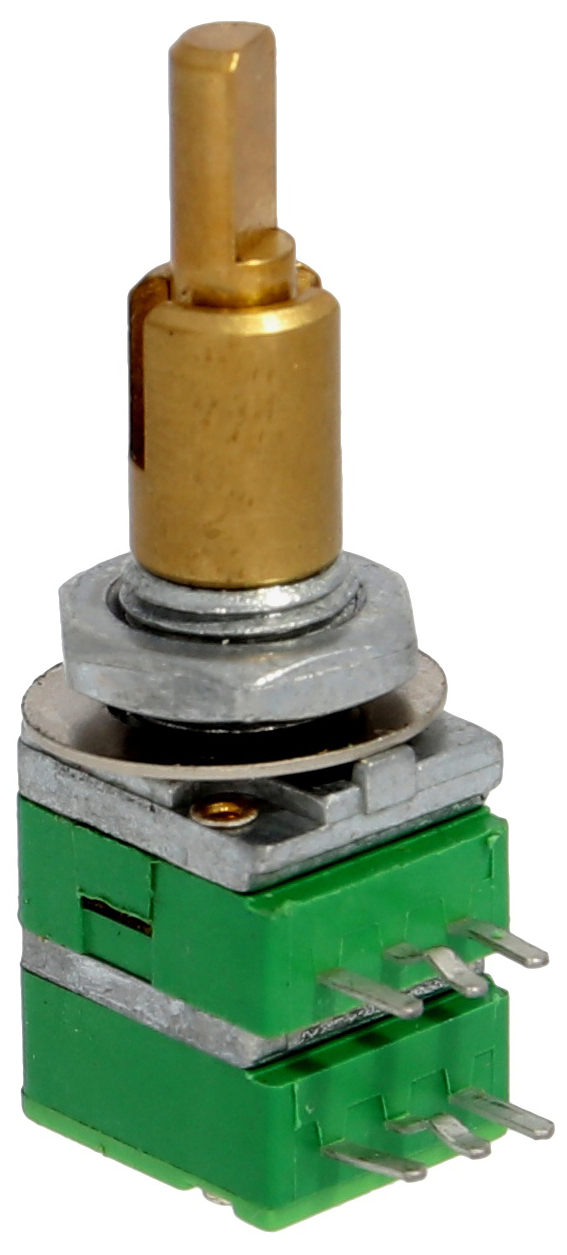

Alpha 9-PC-DCON-25k lin

Alpha 9-PC-DCON-25k lin

(0 reviews)

  • Type: Stereo, concentric
  • Metal axis diameter: 6,0/4,0mm
  • Body diameter: 9mm
  • Mounting hole diameter: 7,5mm
  • With PC mount terminals
  • Rated wattage: 0,05W
  • Rated voltage: 50VAC
  • Rotation angle: 300 degrees +/-10%
  • Tolerance: +/-20%
  • Insulation resistance: 100M Ohm at 250V DC
  • Breakdown voltage: 300VAC for 1 minute
  • Body size (LxWxH): 9x9x7,6mm
  • Thread: M7
  • Length (thread): 5mm
  • Length (axis and thread): 15mm
  • Full shaft fits 6,0/4,0mm stacked knobs.

    • SKU SKU 59253
    Weight 12,00 g
    360 Image 360 degrees image
    Our price: €3,59
    including VAT 19% , [plus shipping]
     Delivery time unknown*
