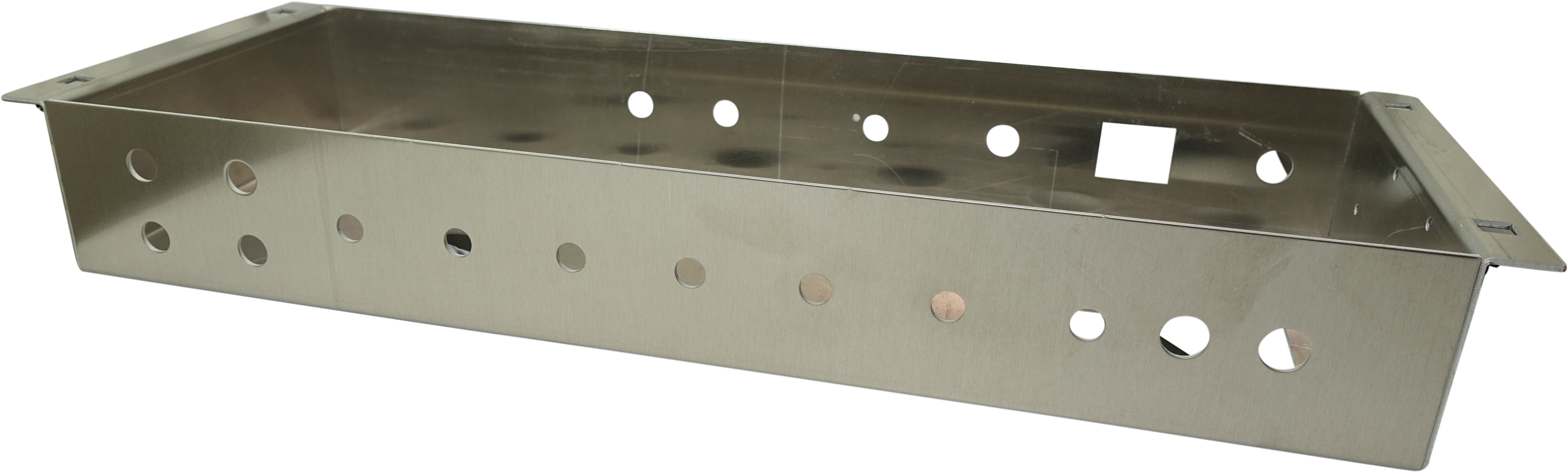

Amp-Chassis JTM45

Amp Chassis, fits JTM45 small boc head and also 1x12 or 2x12 combo cabinets.

Material: Aluminium, hardened, 2mm / 5/65 inch

drilled/cut-outs for:
3x Octal sockets, d=25mm (for EL34 + GZ34)
3x Noval sockets, d=19mm (for ECC83)
2x holes for radial caps like V-3232500R
1x lay-down mains transformer
several holes for upright standing outputtransformer, cables etc.

Frontside:
2x Mains switch
4x Input jacks
6x Potentiometer
1x Indictor / Pilot Light

Rear side:
2x Fuseholders
1x IEC-AC-Jack
1x Impedance Selector Switch
2x Speaker jacks

Dimensions: H: 64mm W: 435mm D: 165mm
Cut out for lay-down mains transfomer with vintage correct lamination (4-1/2 inch)
