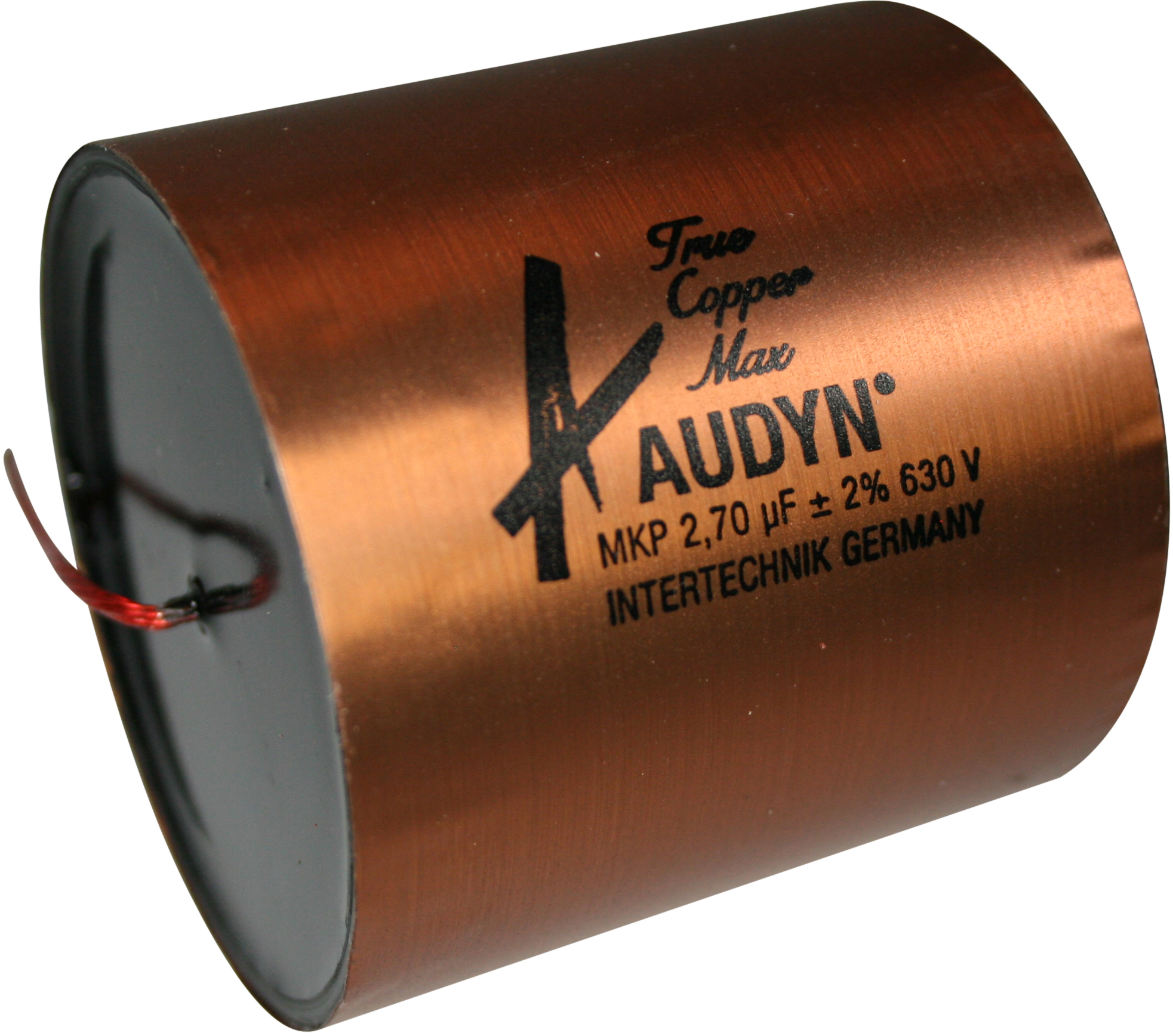

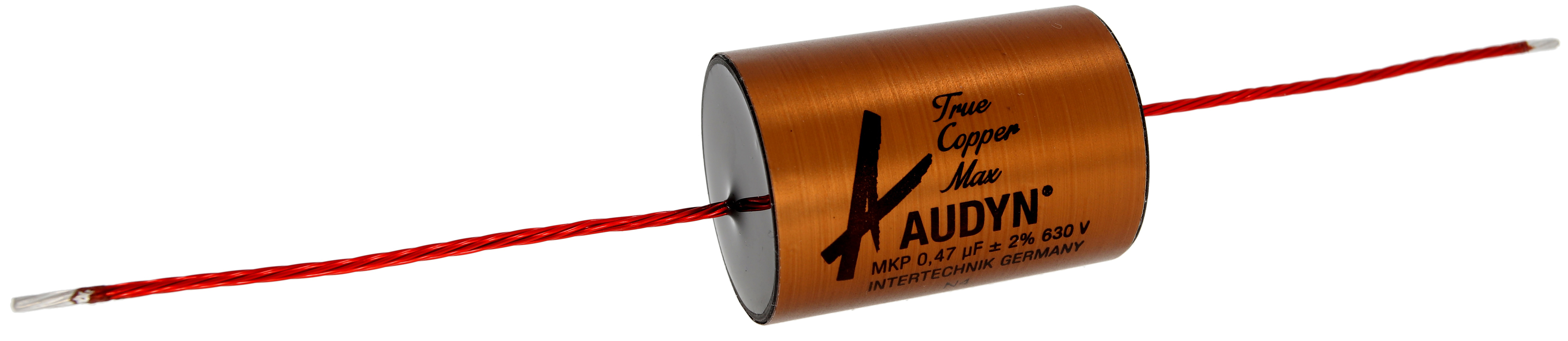

Audyn True Copper Max 3,3uF 630V

Audyn True Copper Max 3,3uF 630V

(0 reviews)

Audyn's third generation copper cap, the True Copper MAX, combines the acoustic and technical properies of the True Copper series, the Plus and the Reference series. Full OFC copper-foil-copper-polypropylene capacitor for exacting and high quality loudspeaker applications. Specifications:

  • Size (DxL): 63x60mm
  • No contamination of the component with mixtures of various metals or fairylike oils
  • The Audyn True Copper Cap does not have a seperate sound or sound picture. Absolutely exact, accurate and honest reproduction of the signals that enter
  • Full OFC copper-foil-copper-polypropylene capacitor for exacting and high quality loudspeaker applications
  • Full OFC Copper foil
  • Copper metallized foil dielectric
  • non inductive
  • selfhealing construction
  • Tritec 7x0.5 mm tinned wire leads gives bigger surface by flexible connections
  • 630 VDC
  • Tolerance : 2%
  • Temperature: -25 C to + 70 C
  • IEC60384-1, EN130000
  • Ris >30000/C(Mohm,uF)
  • Test V between terminals: Ur:630VDC, Ut:650VDC 1min. at 25C
  • Test V between short connected terminals and case: 1000VDC, 1min at 25C
  • It is a True Copper-Copper-Capacitor
  • Made for passive crossover network for loudspeakers

    • SKU SKU 53999
    Weight 300,00 g
    360 Image 360 degrees image
    Our price: €399,76
    including VAT 19% , [plus shipping]
     Delivery time: 4-5 days*
