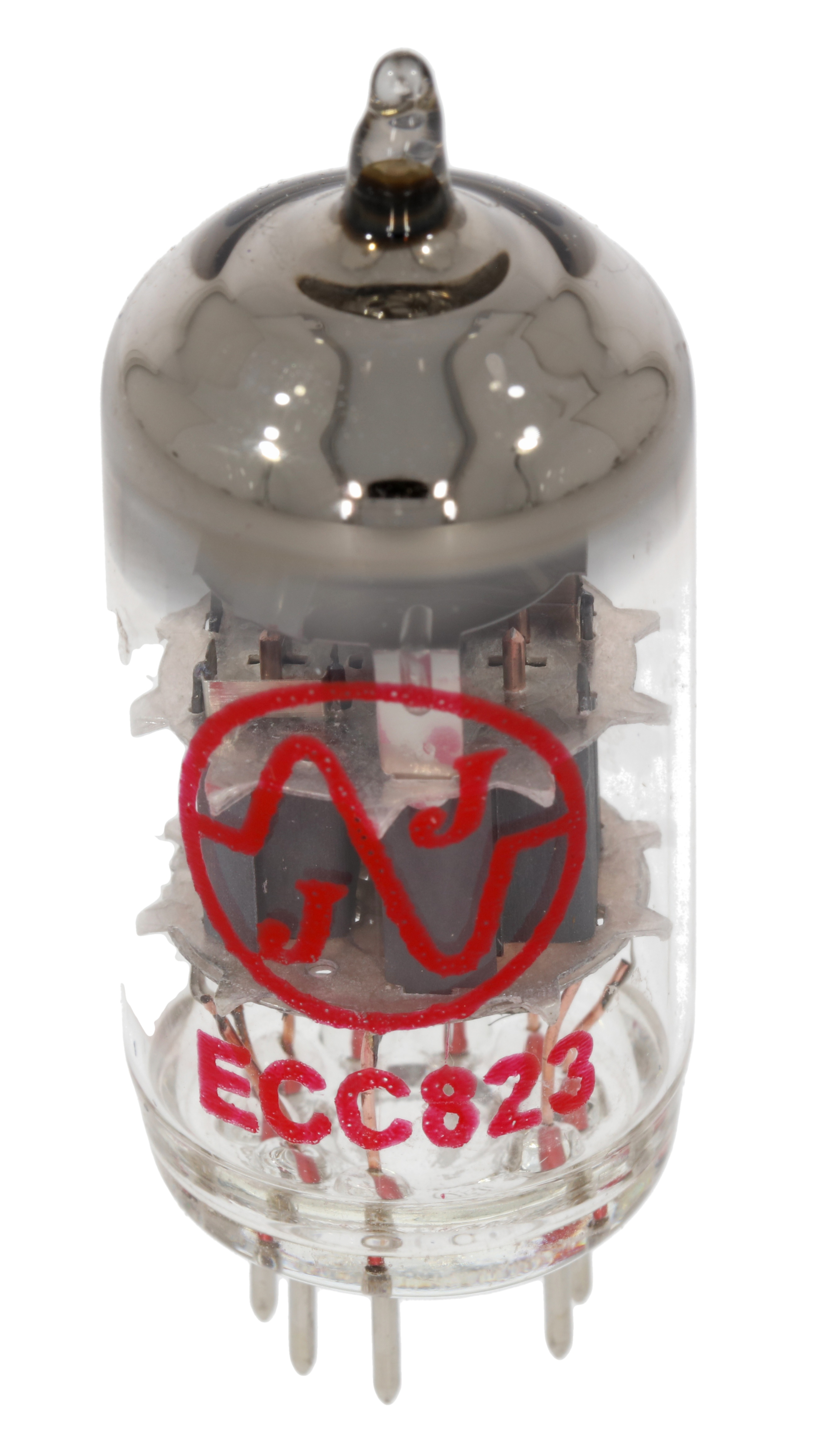

ECC823 JJ

ECC823 JJ
The ECC823 is a special tube to reduce gain. It replaces ECC83 / 12AX7 / 7025. The ECC823 consists of a triode ECC83 (pin 1-3) and a triode ECC82 (pin 6-8).The ECC82 side has significantly less gain than the ECC83 side. The ECC823 is therefore used to bring amplifiers with excessive gain down to a normal level. Many manufacturers (e.g. Fender, Marshall etc.) use the triode pin #6-8 as the input side, so that the ECC823 reduces the gain here.

SKU SKU 76898
Weight 40,00 g
360 Image 360 degrees image
Manufacturer JJ Electronic, A. Hlinku 3, 022 01 ČADCA, Slowakei, info@jj-electronic.com
Our price: 22,12
including VAT 19% , [plus shipping]
 Delivery time: 4-5 days*
