Electric Druid DIGIDELAY board and chipset

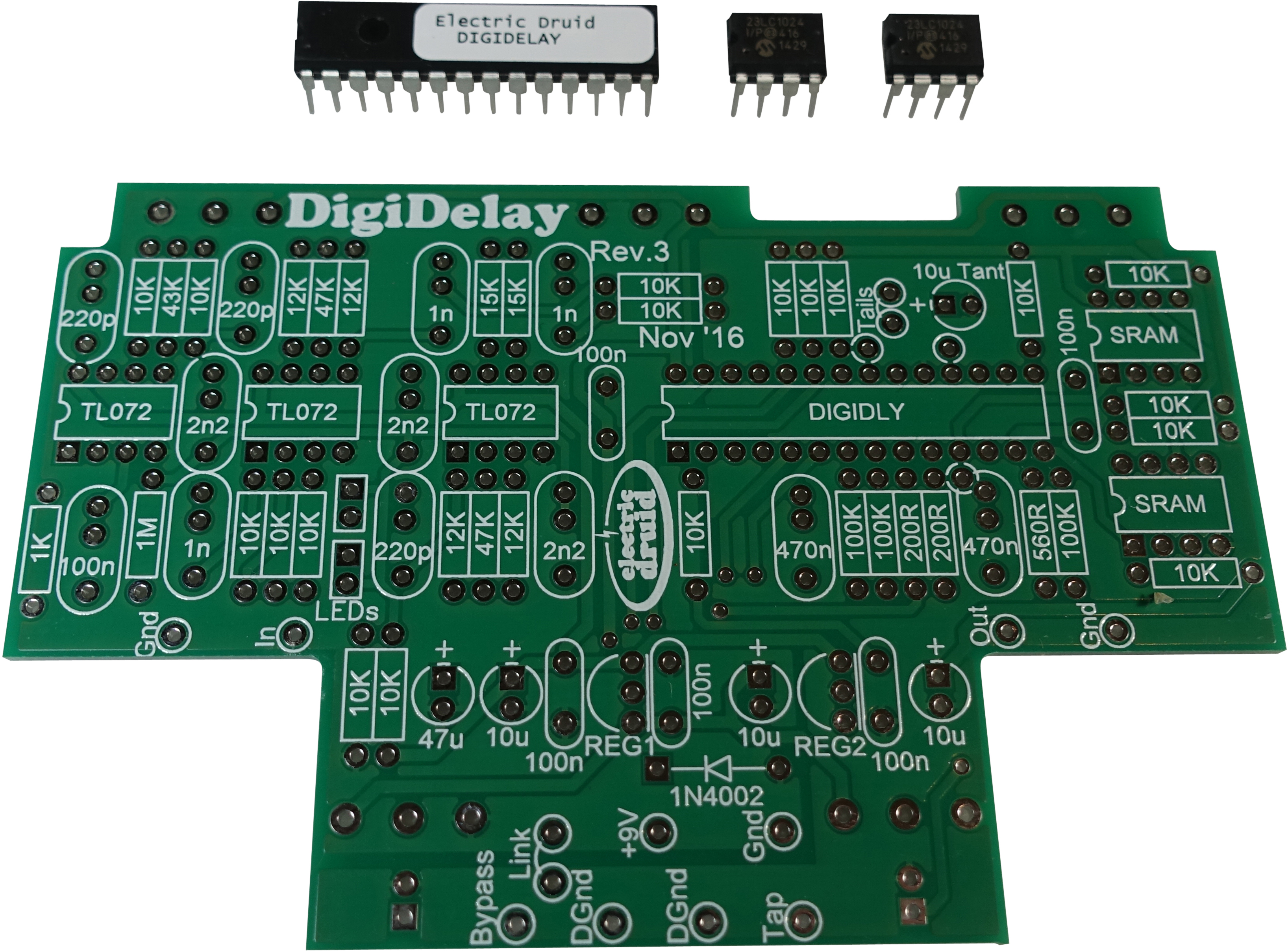

The Electric Druid DIGIDELAY PCB Board set is for the Electric Druid DigiDelay 4 second digital delay project. It includes one PCB, one DIGIDELAY delay processor chip and two 128kB SRAMs. The PCB is designed to fit into a Hammond 1590BB enclosure in landscape format, and can be used with PCB mounting pots for a simple, reliable construction.

The PCB is FR4 fibreglass for strength, with plated through-holes and green soldermask and white screen print on both sides. The PCB layout can accept film capacitors with either 5mm/0.2 inch or 7.5mm/0.3 inch lead spacing, so you
