Electric Druid Stomp LFO

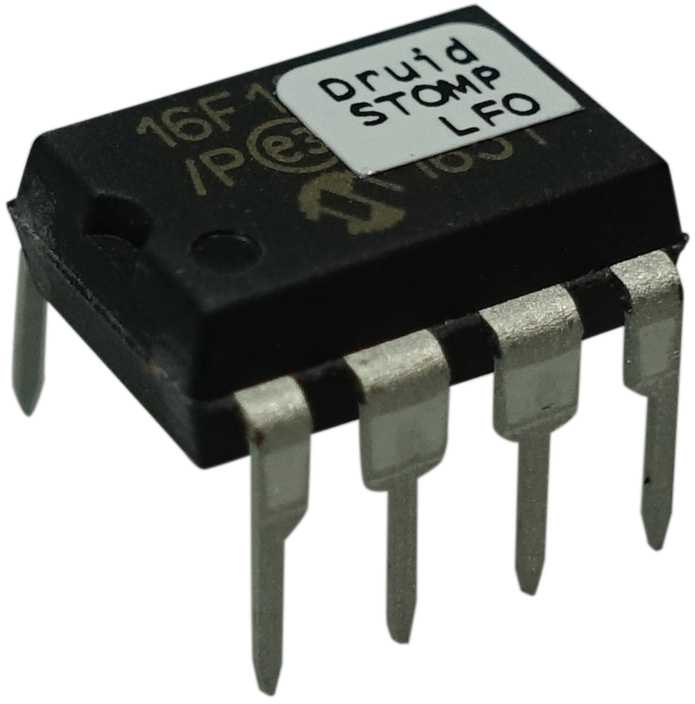

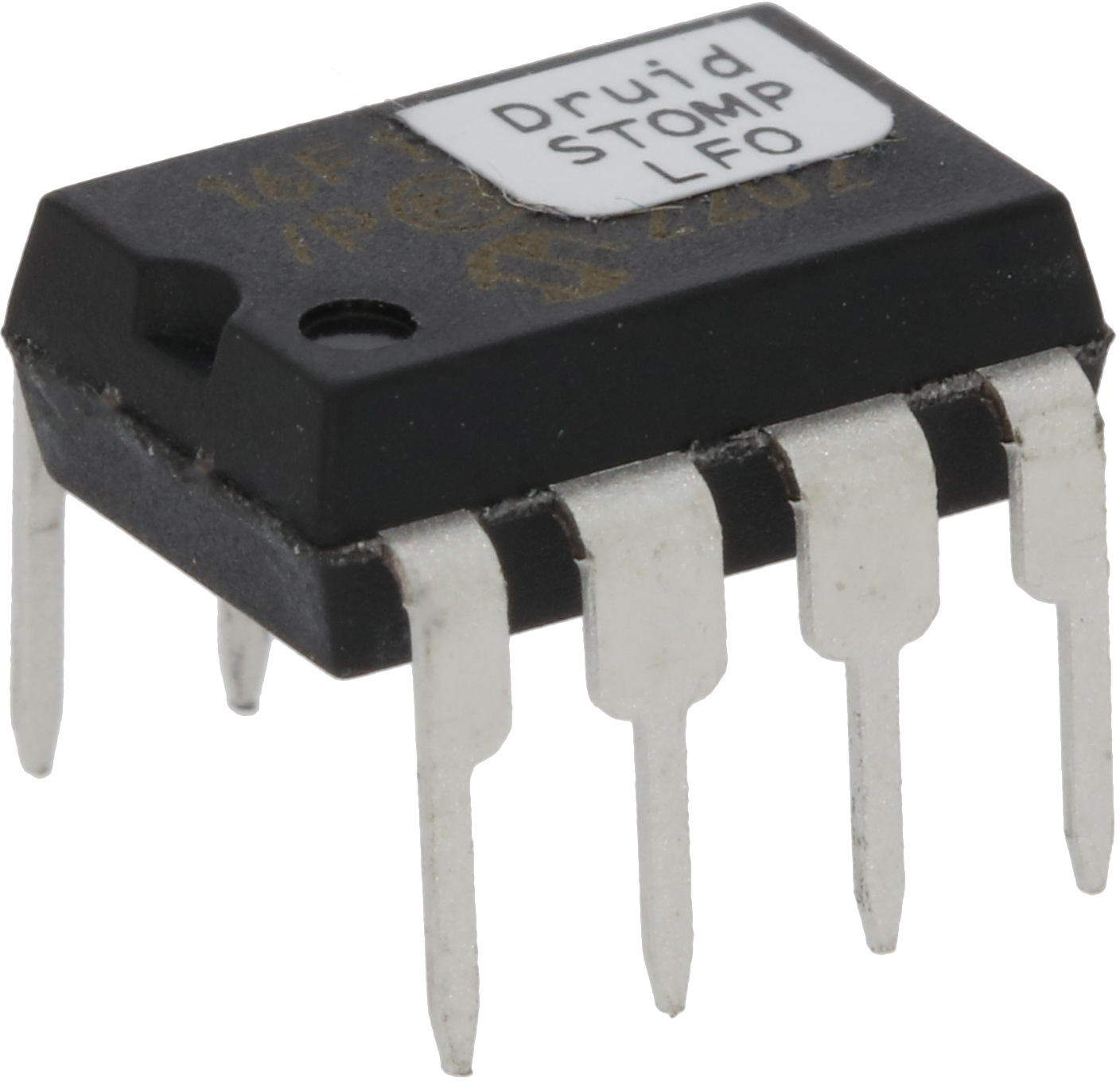

The Elec Druid STOMPLFO 8-pin tap tempo LFO is perfect for smaller environments like pedals. It can replace the typical dual op-amp Schmitt trigger/integrator LFO design. It uses Pulse Density Modulation (PDM) instead of Pulse Width Modulation (PWM) for the output. This enables the output frequency to be much higher (2MHz instead of 10's of KHz) and that means simple RC filters can smooth the output easily without losing any waveform detail. DIP8.

Waveset:

Ramp Up

Ramp Down

Pulse

Triangle

Sine

Sweep

Random Levels

Random Slopes
