Fender 250K pan pot

Fender 250K pan pot

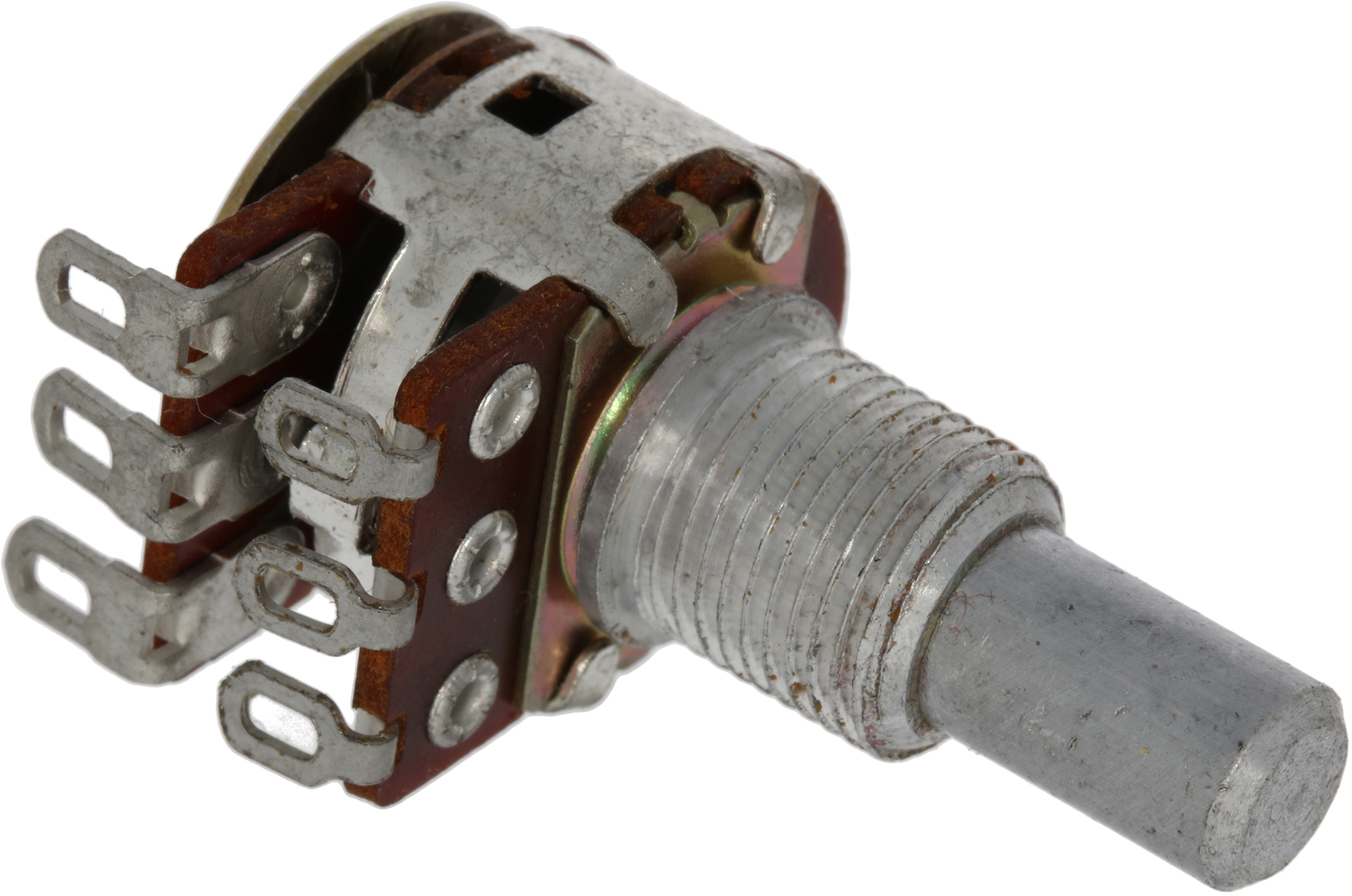

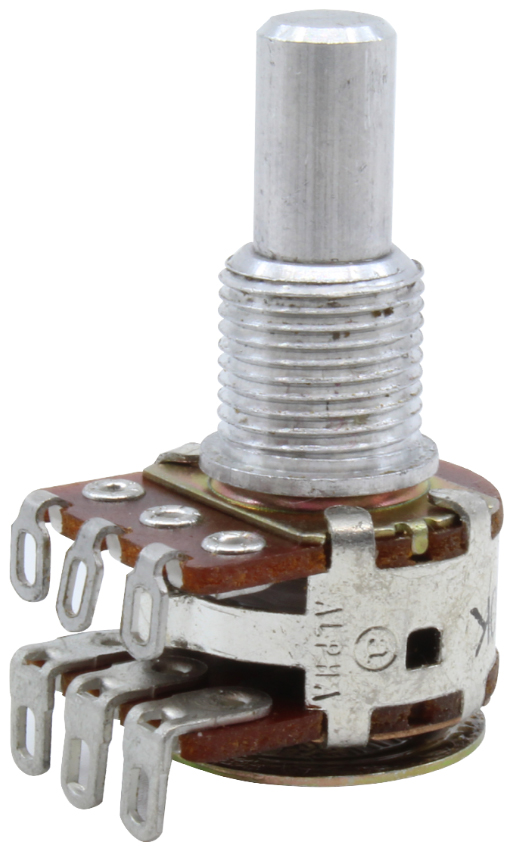

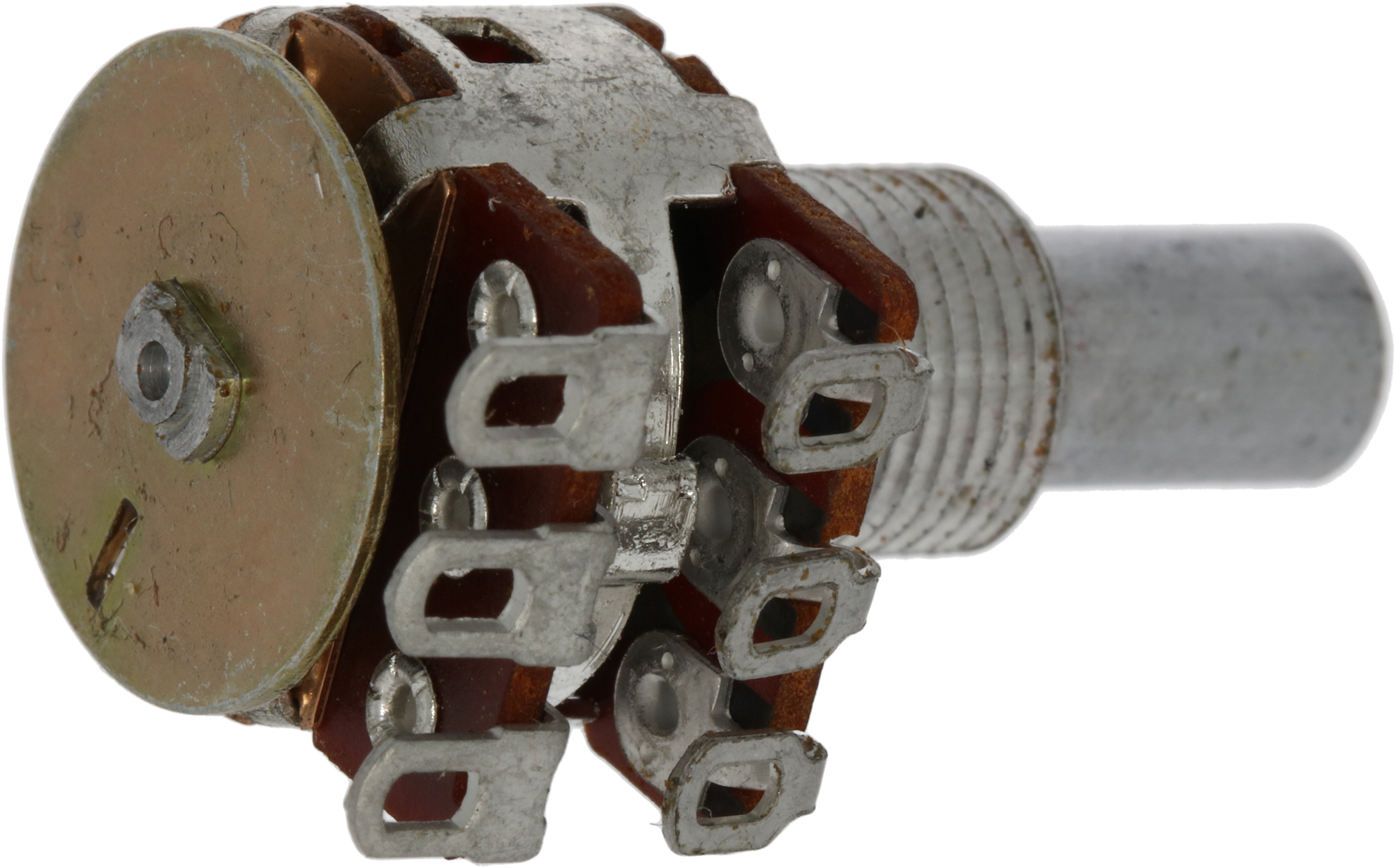

Genuine Fender 250K pan pot with center detent. MN taper. Pan pots are also known as balance pots. Solid shaft with 3/8 inch bushing. Mounting hardware not included. See SKU35797 for a compatible nut and washer.

M taper: 0% to 100% output voltage from 0% to 50% rotation (linear). 100% ouput voltage from 50% to 100% rotation.

N taper: 100% output voltage from 0% to 50% rotation. 100% to 0% ouput voltage from 50% to 100% rotation (linear).

Full output for both outputs at 50% rotation (center detent).

SKU SKU 75381
Weight 8,00 g
360 Image 360 degrees image
Manufacturer Fender Musical Instruments Europe ltd., Leo House, Birches Industrial Estate, East Grinstead, West Sussex, RH19 1QZ, Grossbritannien, www.fender.com
Importer Banzai Music GmbH, Benzstr. 46-50, 12277 Berlin, Deutschland, support@banzaimusic.com
Our price: 7,39
including VAT 19% , [plus shipping]
 Delivery time: 4-5 days*
