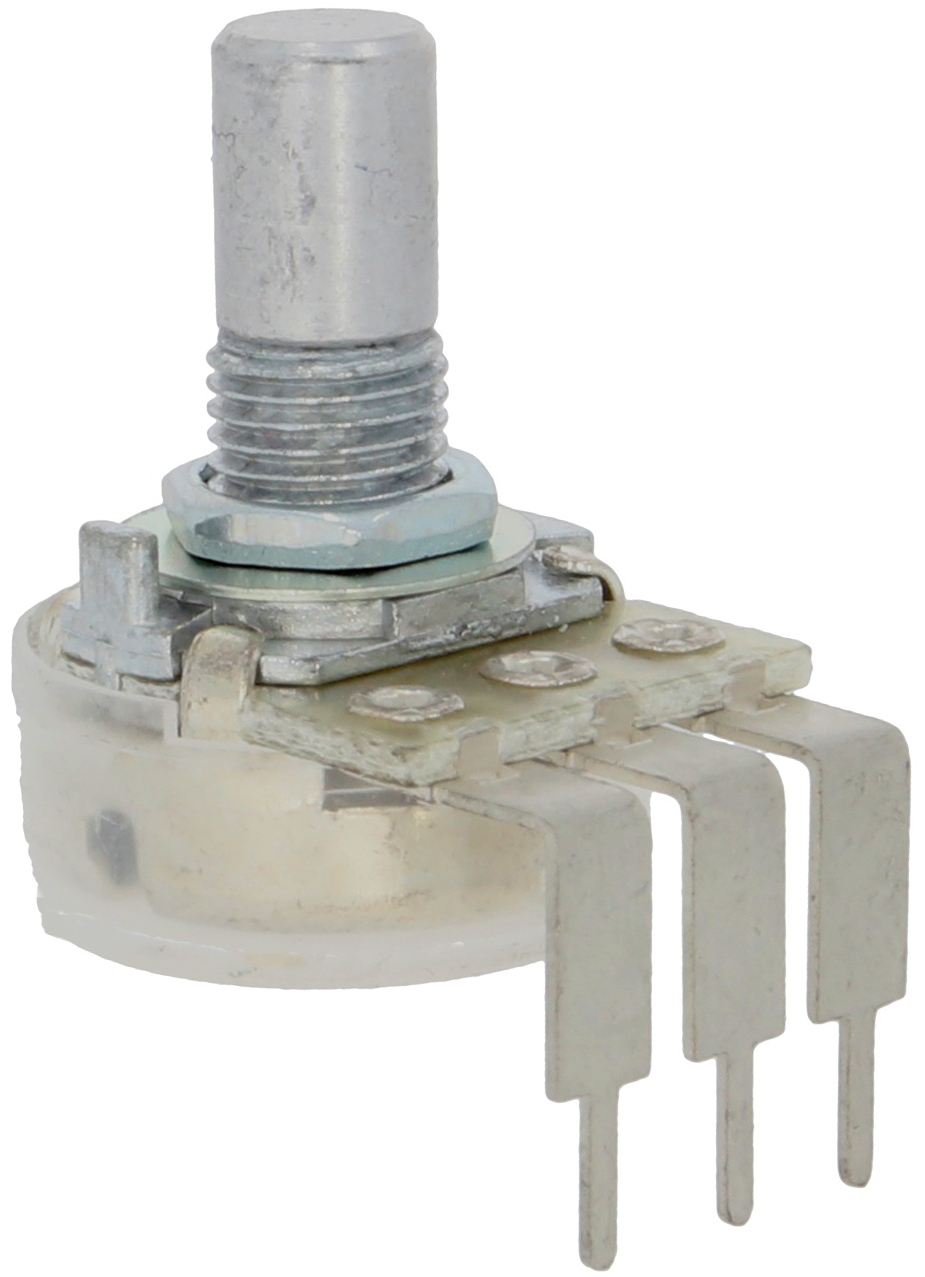

Gorva 16-PC-ANG-25k lin

High-quality Right-angle PCB mount 16mm pot from Gorva Design. Dust cover and mounting hardware included.

Gorva Design left no boxes unchecked when engineering their potentiometer lineup. Every element was carefully designed to offer builders an exceptional potentiometer with high durability and tight tolerances. Gorva potentiometers are made with stompboxes in mind but offer the same advantages to amplifiers, synthesizers, studio equipment and other electronics. Dust cover and mounting hardware included.

Features:

Body Depth: 0.41 in.

Body Diameter: 0.715 in.

Bushing Length: 0.25 in.

Bushing threading: M7x0.75

Pin Spacing: 5mm

Shaft Diameter: 0.247 in.

Shaft Length: 0.325 in.

Tolerance: +/- 10%

1/4 inch (6,35mm) solid shaft

Machine-pressed dust seal

High quality wiper material

Low residual resistance
