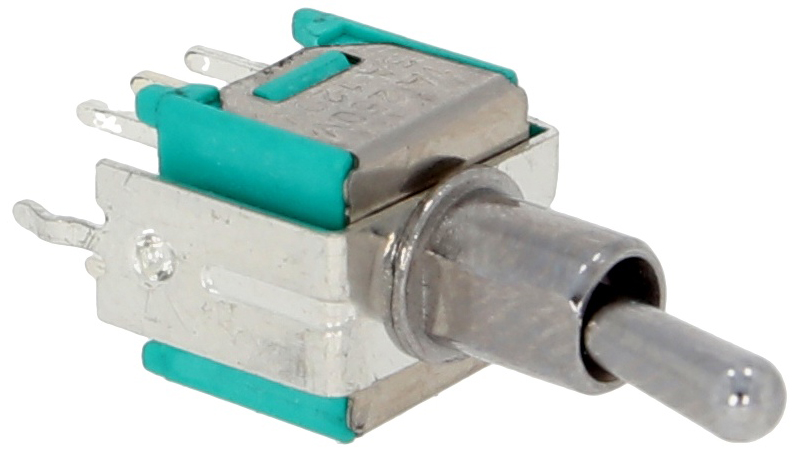

Gorva DPDT On-On-On Mini-PC-MED

Gorva DPDT toggle switch. On-On-On switching. PC Pins, medium length bat. Subminiature size (LxWxH): 9,14x9,14x8,94mm.

Premium three position DPDT submini toggle switches from Gorva Design. The Bascular Sub Mini switches have a medium 7.37mm actuator length. These switches feature silver plated copper alloy contacts. The bushing is smooth and the switch is secured with the mounting bracket on the PCB. RoHS compliant & lead-free.

Details:

5.59mm non-threaded bushing

3-Position On/On/On

4.95mm panel hole diameter

Double pole/Double throw (DPDT)

PC Pins

Power Rating: DC9V, 1A

Contact Resistance: <20mOhm

Insulation Resistance: 1000MOhm Minimum

Dielectric Strength: 1000V RMS @ Sea Level

Operating Temperature: -40°C - +85°C

Electrical Life: 30,000 Cycles

RoHS & Lead-free
