Gorva SPDT On-On

Gorva SPDT On-On

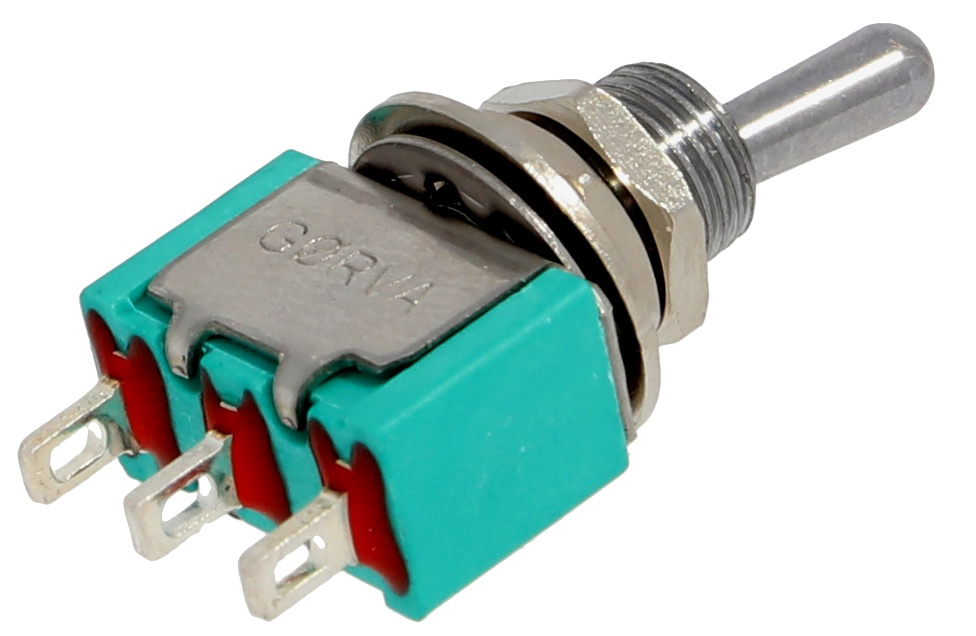

Gorva SPDT toggle switch. On-On switching. Solder lugs, medium length bat. Standard size (LxWxH): 12,7x6,86x8,89mm.

Premium three position DPDT submini toggle switches from Gorva Design. The Bascular Sub Mini switches have a medium 7.37mm actuator length. These switches feature silver plated copper alloy contacts. The bushing is smooth and the switch is secured with the mounting bracket on the PCB. RoHS compliant & lead-free.

Details:
  • 8,89mm non-threaded bushing
  • 2-Position On/On
  • 1/4 inch diameter
  • Single pole/Double throw (SPDT)
  • Solder lugs

    Power Rating: DC9V, 1A
  • Contact Resistance: <10mOhm
  • Insulation Resistance: 1000MOhm Minimum
  • Dielectric Strength: 1000V RMS at Sea Level
  • Operating Temperature: -40°C - +85°C
  • Electrical Life: 40,000 Cycles
  • RoHS & Lead-free

  • SKU SKU 61238
    Weight 15,00 g
    360 Image 360 degrees image
    Manufacturer GORVA Design Inc., 151-10090 152nd Street Suite #216, Surrey B.C. V3R 8X8, Canada, info@gorva.design
    Importer Banzai Music GmbH, Benzstr. 46-50, 12277 Berlin, Deutschland, support@banzaimusic.com
    Our price: 2,32
    including VAT 19% , [plus shipping]
    (Base price per 1.00 Pack: €2,32)
     Delivery time: 4-5 days*

    Qty
