Hongh 9-PC-NUT-100k lin

Hongh 9-PC-NUT-100k lin

(0 reviews)

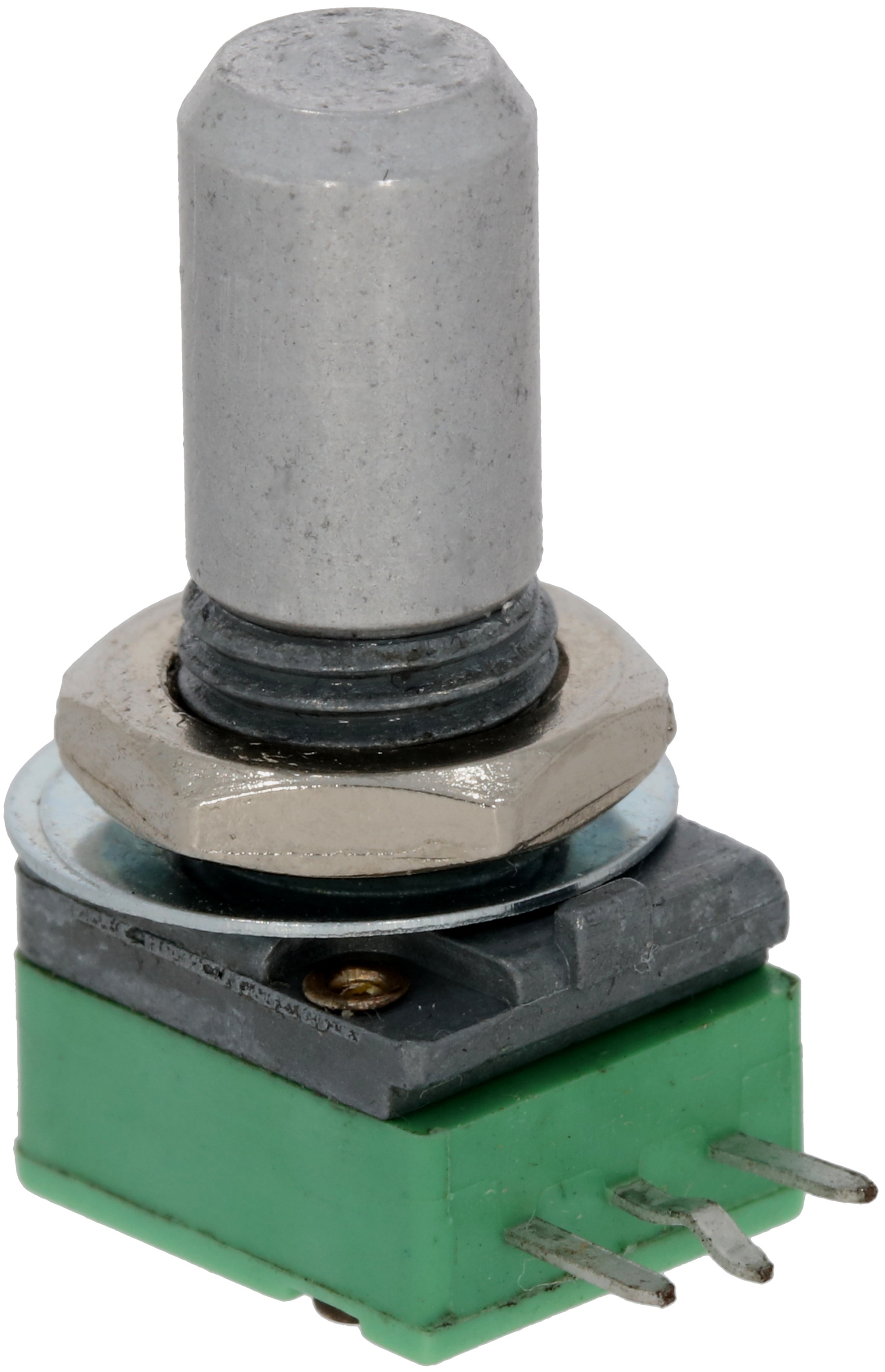

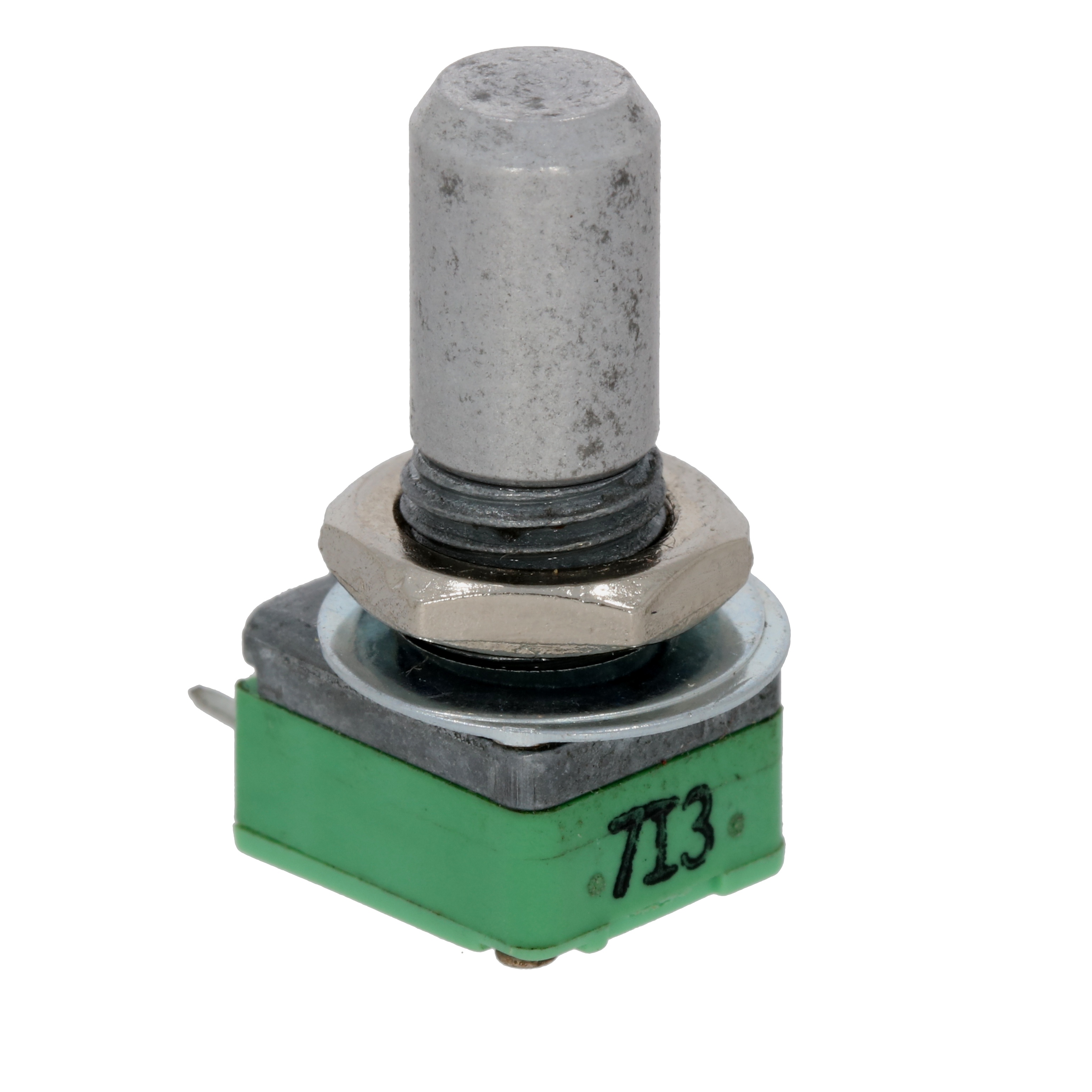

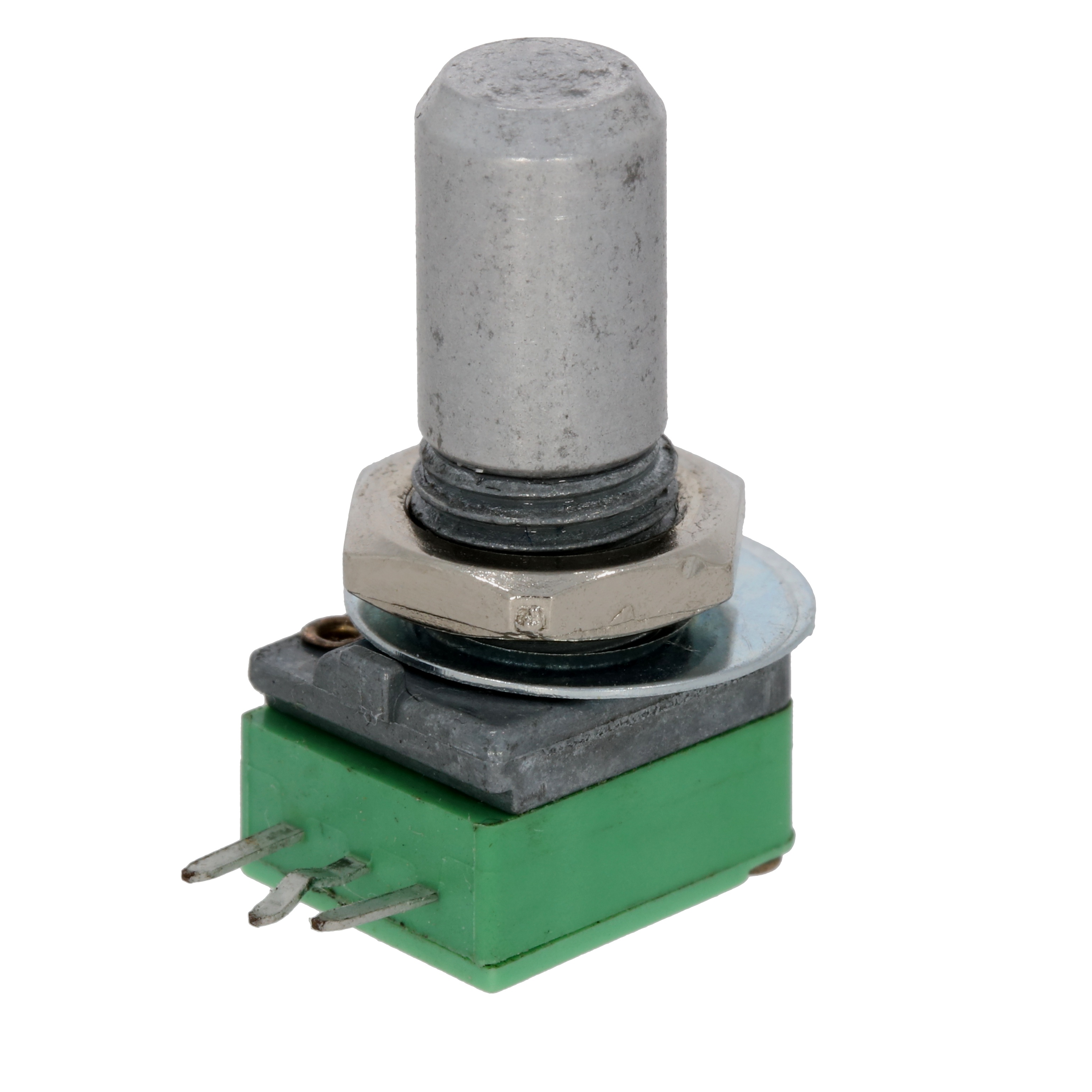

9mm, Full Shaft 6,3mm, Mono Potentiometer with PC mount terminals. Hongh was founded by the former lead engineer of Alpha and is committed to manufacturing excellent quality products.

Specifications:
  • Type: Mono
  • Metal axis diameter: 6,3mm
  • Body diameter: 9mm
  • Mounting hole diameter: 7,5mm
  • With pc mount terminals
  • Rated wattage: 0,05W
  • Rated voltage: 50VAC
  • Rotation angle: 300 degrees +/-5%
  • Tolerance: +/-20%
  • Rotational Life: 15,000 cycles
  • Insulation resistance: 100M Ohm at 250V DC
  • Breakdown voltage: 300VAC for 1 minute
  • Body size (LxWxH): 9x9x7,6mm
  • Thread: M7
  • Length (thread): 5mm
  • Length (axis and thread): 15mm
  • Full shaft fits all 6,3mm knobs.

    • SKU SKU 52019
    Weight 6,00 g
    360 Image 360 degrees image
    Our price: €1,17
    including VAT 19% , [plus shipping]
    Quantity Price*
    10-24 Items €1,12
    25-99 Items €1,04
    100+ Items €0,99

    *Note: including VAT , [plus shipping]

     Delivery time: 4-5 days*
