Hongh GTR-KN-500k log

Hongh GTR-KN-500k log

(0 reviews)

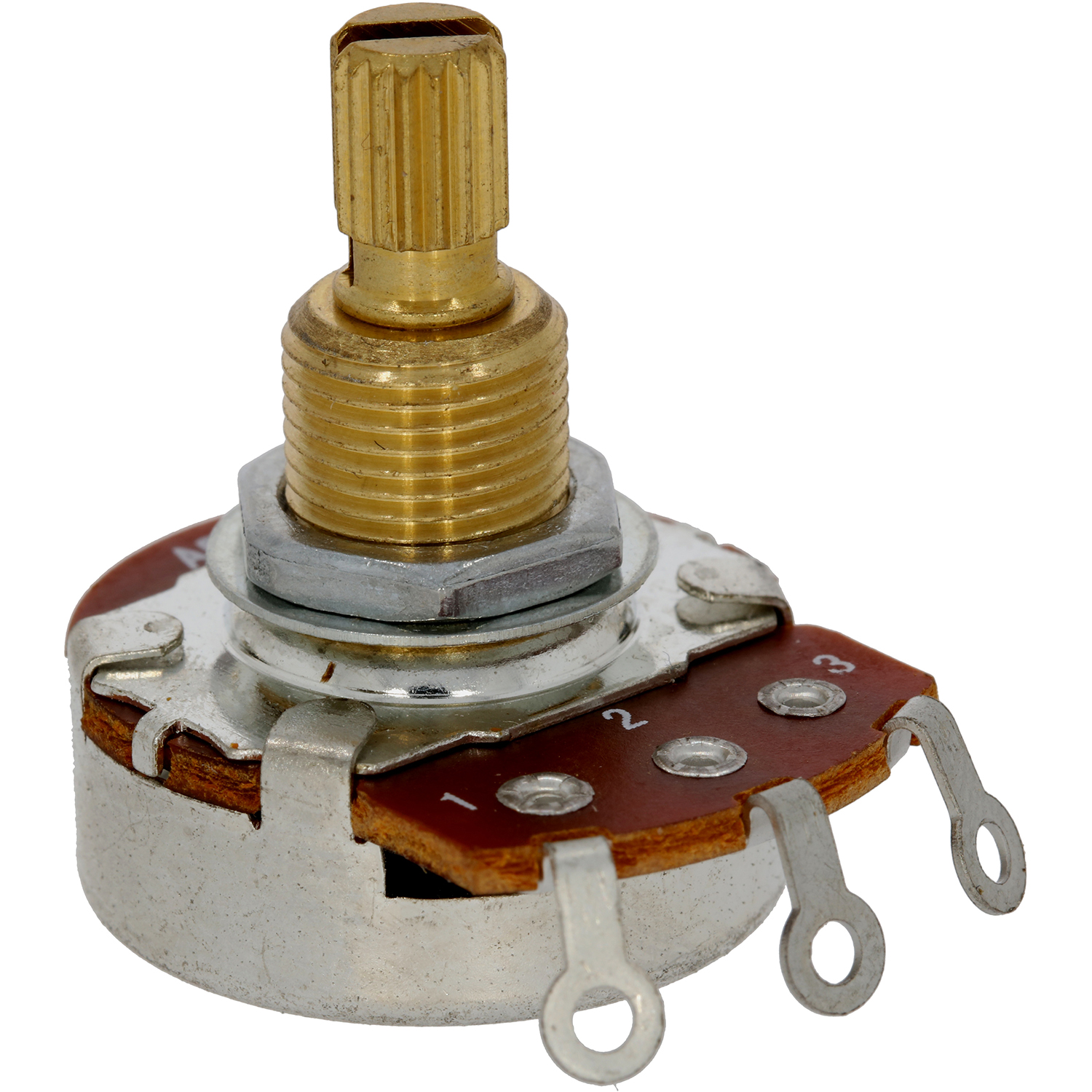

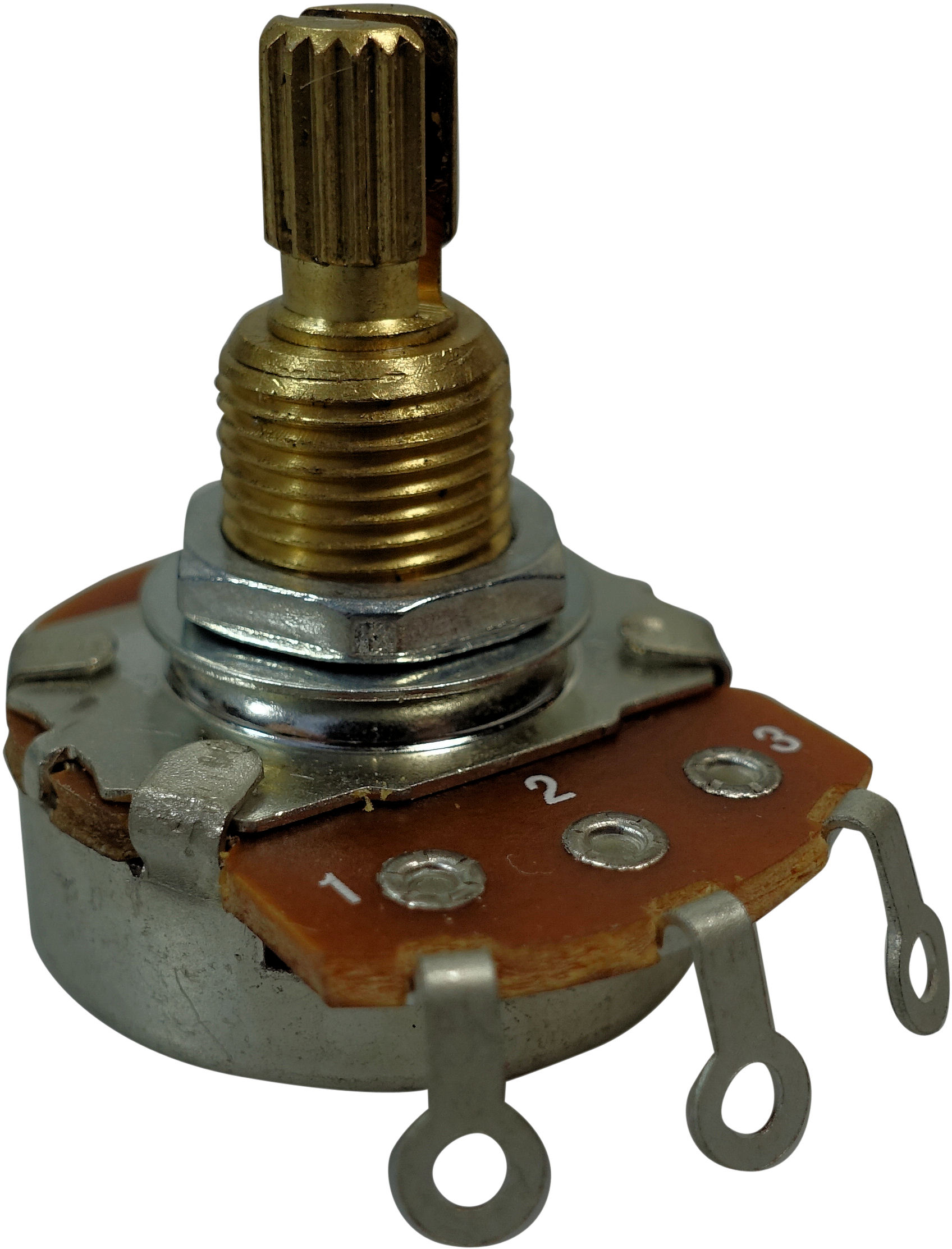

Hongh Premium Guitar Potentiometer 24mm mono (with extra long thread). Knurled shaft. Hongh was founded by the former lead engineer of Alpha and is committed to manufacturing excellent quality products. This is an excellent, highly recommended audio potentiometer that can take it up with any of the $$$ brand name pots.

Specifications:
  • Taper: Audio (log)
  • Bushing diameter: 3/8 inch
  • Bushing length: 9,5mm
  • Standard Resistance Tolerance: +/-20%
  • Operating Temperature: -10°.C to 70°.C
  • Power Rating: 0.25W
  • Maximum Operating Voltage: 250V
  • Rotational Noise: 150mV max.
  • Mechanical Angle: 300°. +/-5°.
  • Rotational Torque: 20-200gf.cm
  • Stop Strength: 6 kg-cm min.
  • Rotational Life: 10,000 cycles min.
  • Soldering Condition: Manual Soldering: 350°.C within 3 sec. Wave Soldering: 260°.C within 4 sec.
  • Hardware: One flat washer and mounting nut supplied per potentiometer

    Features:
  • Low torque
  • Carbon element
  • Metal bushing
  • Metal shaft
  • Solder lugs
  • RoHS Compliant

    • SKU SKU 52018
    Weight 14,00 g
    360 Image 360 degrees image
    Manufacturer Banzai Music GmbH, Benzstr. 46-50, 12277 Berlin, Deutschland, support@banzaimusic.com
    Our price: €3,05
    including VAT 19% , [plus shipping]
    Quantity Price*
    5-9 Items €2,90
    10-24 Items €2,74
    25+ Items €2,59

    *Note: including VAT , [plus shipping]

     Delivery time: 4-5 days*
