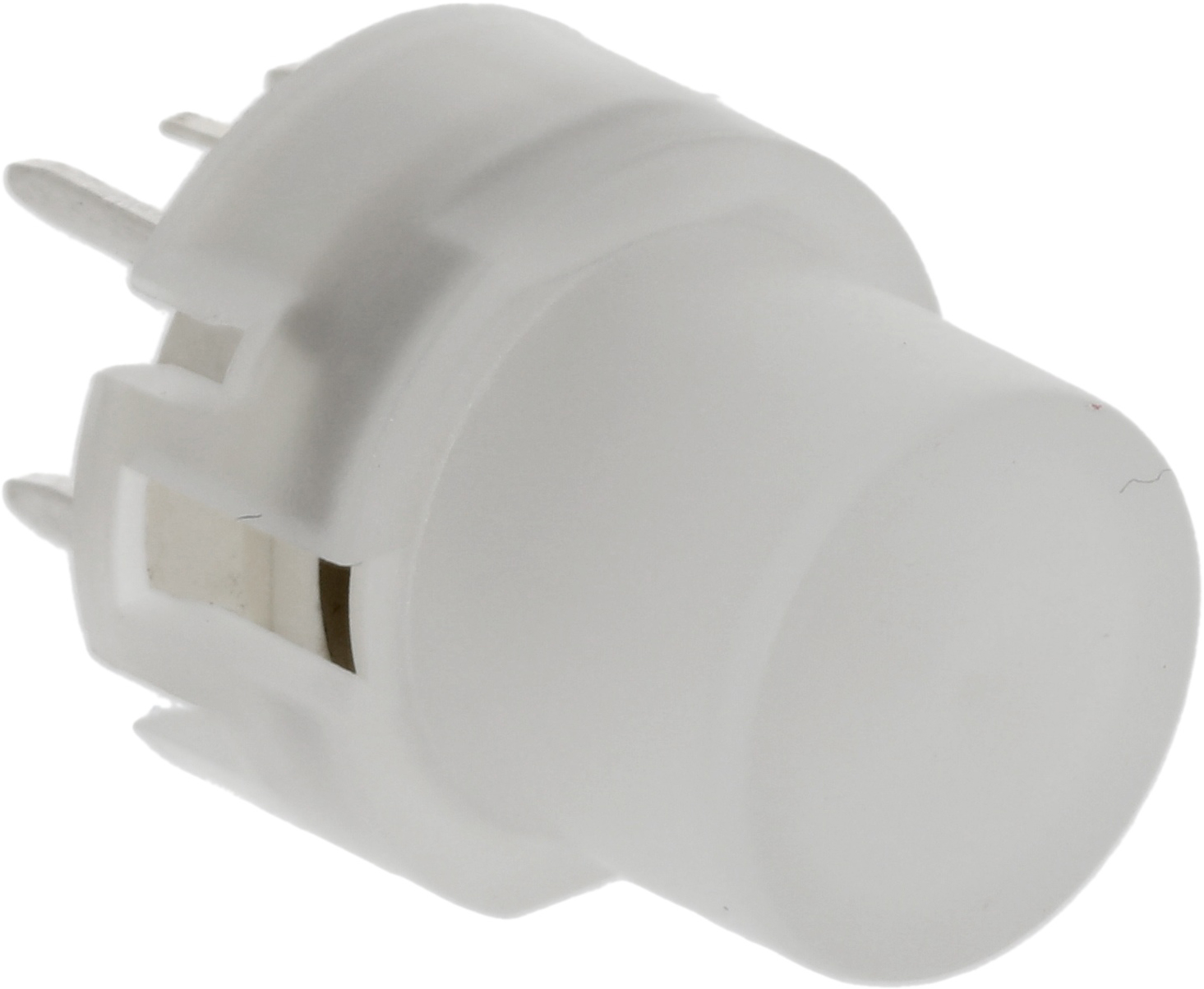

Illuminated Tact Switch KS01-Red-Green

		(0 reviews)

Highly illuminated tactile switch. A short stroke, light tact feeling and long life switch with a button. Widely used in modular synth systems and many electronic devices. Clear round button, lighting up red/green.

Specifications:

Rating 10mA 35VDC

Insulation Resistance: 100MOhm Min(at 250 VDC)

Dielectric Strength AC 250V (50/60 Hz for 1 minute)

Contact Resistance 30mOhm Max. (Initial)

Electrically Life 100,000 Cycles Min

Ambient Temperature -20°C to +60°C

Operating Force V: 130 +/- 50gf M: 250 +/- 50gf

Type of switch: keypad

Number of positions: 2

Contacts configuration: SPST-NO

Actuator colour: colourless

Illumination: LED

Mounting: THT

Leads: for PCB, straight

Switching method: OFF-(ON)

Body dimensions: 12mm diameter

Stable positions number: 1

Terminal pitch: 5x5mm

Button shape: round

SKU SKU 70368

Weight 4,00 g

360 Image

Our price: €0,99
including VAT 19% , [plus shipping]

Delivery time: 4-5 days*
