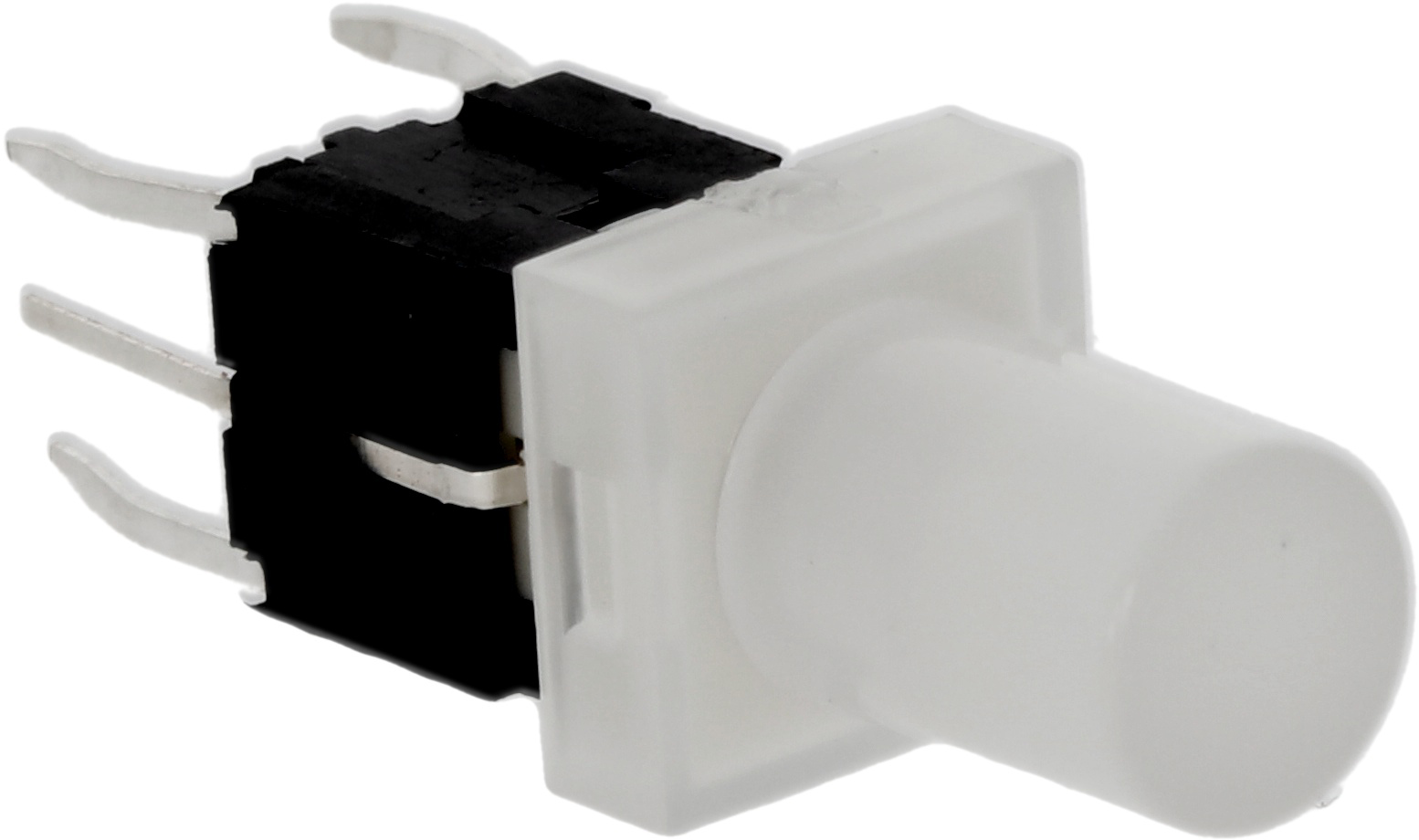

Illuminated Tact Switch LP-Yellow

Highly illuminated tactile switch. A short stroke, light tact feeling and long life switch with a button. Widely used in modular synth systems and many electronic devices. Clear square button, lighting up yellow.

Specifications:

Rating 10mA 35VDC

Insulation Resistance: 100MOhm Min(at 250 VDC)

Dielectric Strength AC 250V (50/60 Hz for 1 minute)

Contact Resistance 30mOhm Max. (Initial)

Electrically Life 100,000 Cycles Min

Ambient Temperature -20°C to +70°C

Operating Force V: 1,6N

Type of switch: keypad

Number of positions: 2

Contacts configuration: SPST-NO

Actuator colour: colourless

Illumination: LED

Mounting: THT

Leads: for PCB, straight

Switching method: OFF-(ON)

Body dimensions: 6,2x6,2mm diameter

Stable positions number: 1

Actuator height: 10,3mm

Actuator+Body height: 18mm

Terminal pitch: 5 x 5mm

Button shape: square

SKU SKU 70375

Weight 4,00 g

360 Image

Manufacturer Highly Electric, Fl.10-3, No.738, Chung-Cheng Road , Zhonghe District , New Taipei City, Taiwan, sales@highlyelec.com.tw

Importer Banzai Music GmbH, Benzstr. 46-50, 12277 Berlin, Deutschland, support@banzaimusic.com

Our price: €1,38
including VAT 19% , [plus shipping]

Delivery time: 4-5 days*
