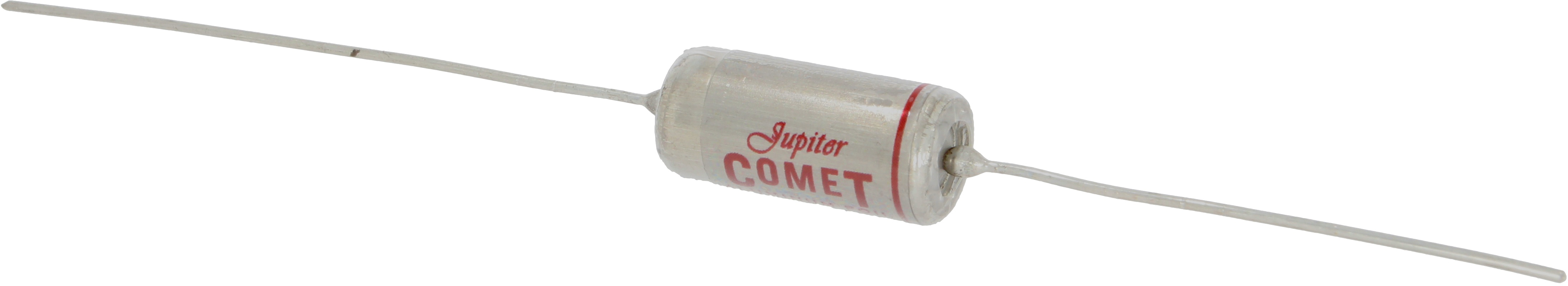

Jupiter Comet 0,022uF 600V

Jupiter Comet 0,022uF 600V

(0 reviews)

Aluminum Foil Paper-in-Oil delivers the classic sound sought after for decades. Jupiter uses the finest quality highly refined USP-grade mineral oils, processed under a deep vacuum for several days. Hermetic sealing keeps oil from leaking out and provides protection from ingress of moisture to ensure long life.

Specifications:
  • Tolerance: +/- 10%
  • Operating Temperature: 85°C
  • Voltage: 600VDC
  • Pure Aluminum Foil
  • Dielectric: Paper-in-Oil
  • Oil Type: Mineral Oil
  • Leads: Tinned Oxygen Free Copper
  • Made in the USA of materials made in the USA.
  • RoHS compliant
  • Size (LxD): 20,5 x 9,5mm.

    • SKU SKU 74755
    Weight 10,00 g
    360 Image 360 degrees image
    Our price: €24,87
    including VAT 19% , [plus shipping]
     Delivery time: 4-5 days*
