K1100CK2B

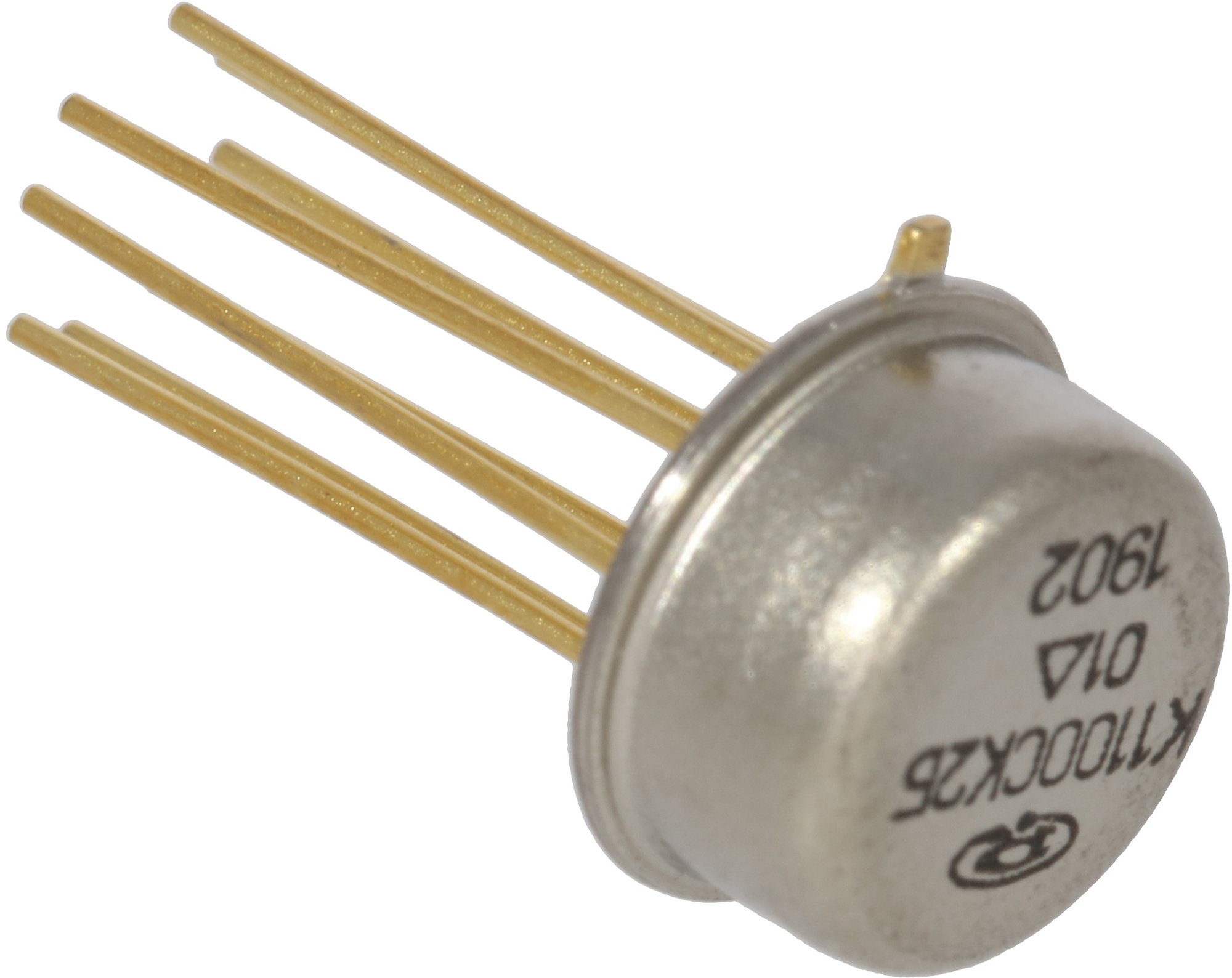

Monolithic sample-and-hold (S&H) circuit, controlled by signal LOGIC, stores the instantaneous values of the input signal and for a certain time maintain a constant DC voltage at the output with a high accuracy. The wide bandwidth allows the 1100CК2 to be included inside the feedback loop of 1 MHz op amps without having stability problems. Allows high source impedances to be used without degrading accuracy. TO5-8.

Supply voltages ±15V (group B), ±12В (group А)

Less than 7 μs sampling time with an error of 0.1% at CH = 1000 pF

Less than 180 ns aperture delay

Range of input voltages ± 10V (group B), ± 5V (group B)

External hold capacitor

Output short-circuit protection

Compatibility with control input with TTL / CMOS logic
