Keech Enclosure Drill Jig Swiss Cheese

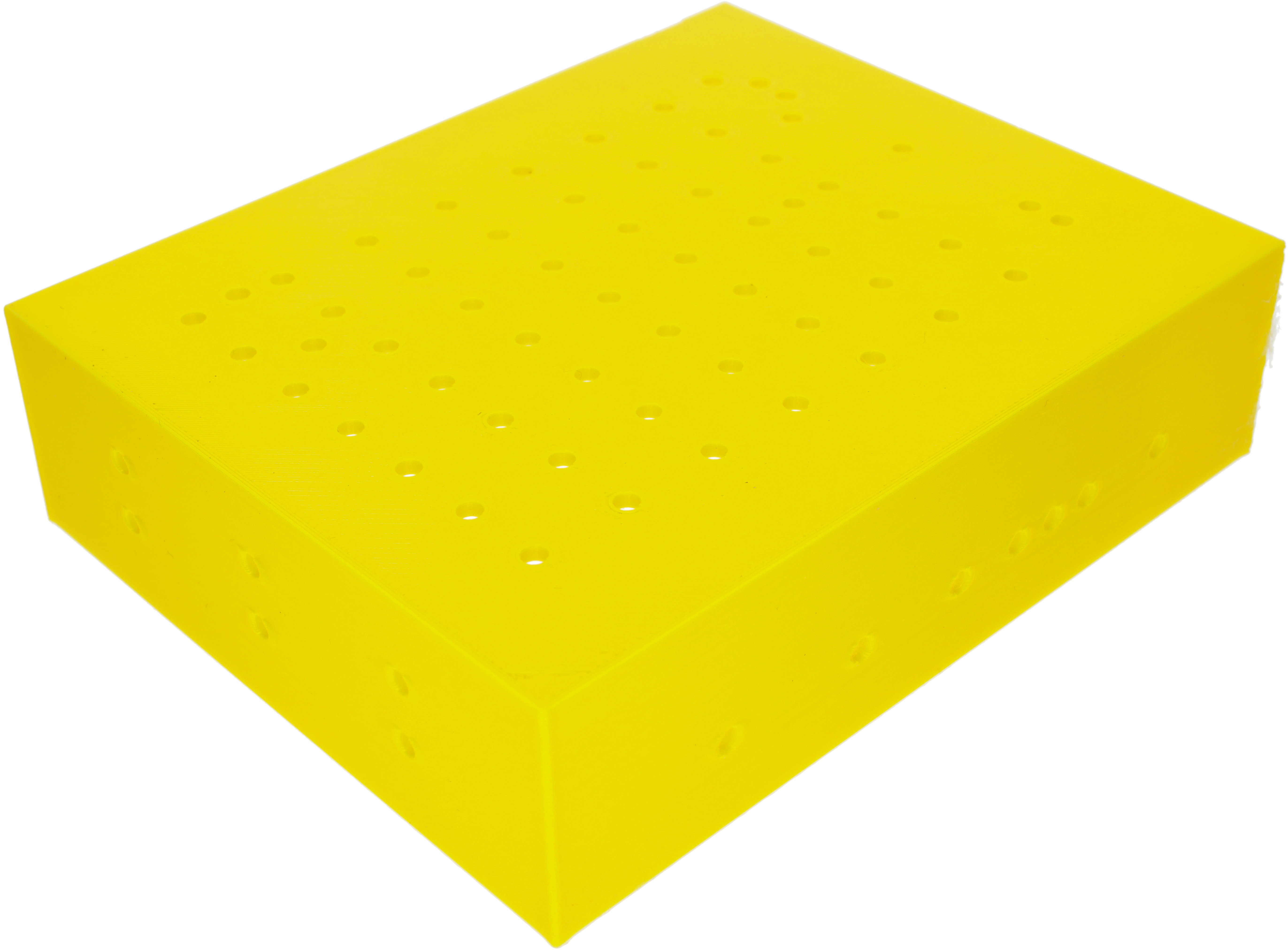

Simplify your custom enclosure making! This jig fits 1590BB style enclosures. These drill jigs from Keech Design slide neatly over your enclosure and allow you to center-punch and drill component holes in any number of locations based on your custom layout!

The Swiss Cheese DrillJig is the second generation jig designed for 1590BB style enclosures, and offers an abundance of new hole options.Whether you want to build your pedal vertically or horizontally, the jig provides plenty of options! Designed to allow four potentiometers across vertically or just three, the hole pattern allows either option with commonly spaced distances for those using kits from companies like PedalPCB, Aion FX, and more!

Additional side hole options for I/O and DC jack placement, multiple locations for dual, or even triple, foot-switches, and uses the same foot-switch and LED hole locations (relative to the bottom of the jig, along the middle axis) as the popular 125B DrillJig.

By only using three sides, the user can slide DrillJigs forward and backwards across the enclosure to adjust hole placement if necessary. It is advised to tape down (with painters tape or similar) the unenclosed wall so that the DrillJig doesn’t slip during use. And with all of our products, we recommend using a center punch to mark the holes first to avoid any damage caused by drilling through the jig itself. Keech Design is not liable for any damage caused to the product from misuse.

Instruction Manual: [Download PDF Manual here]
