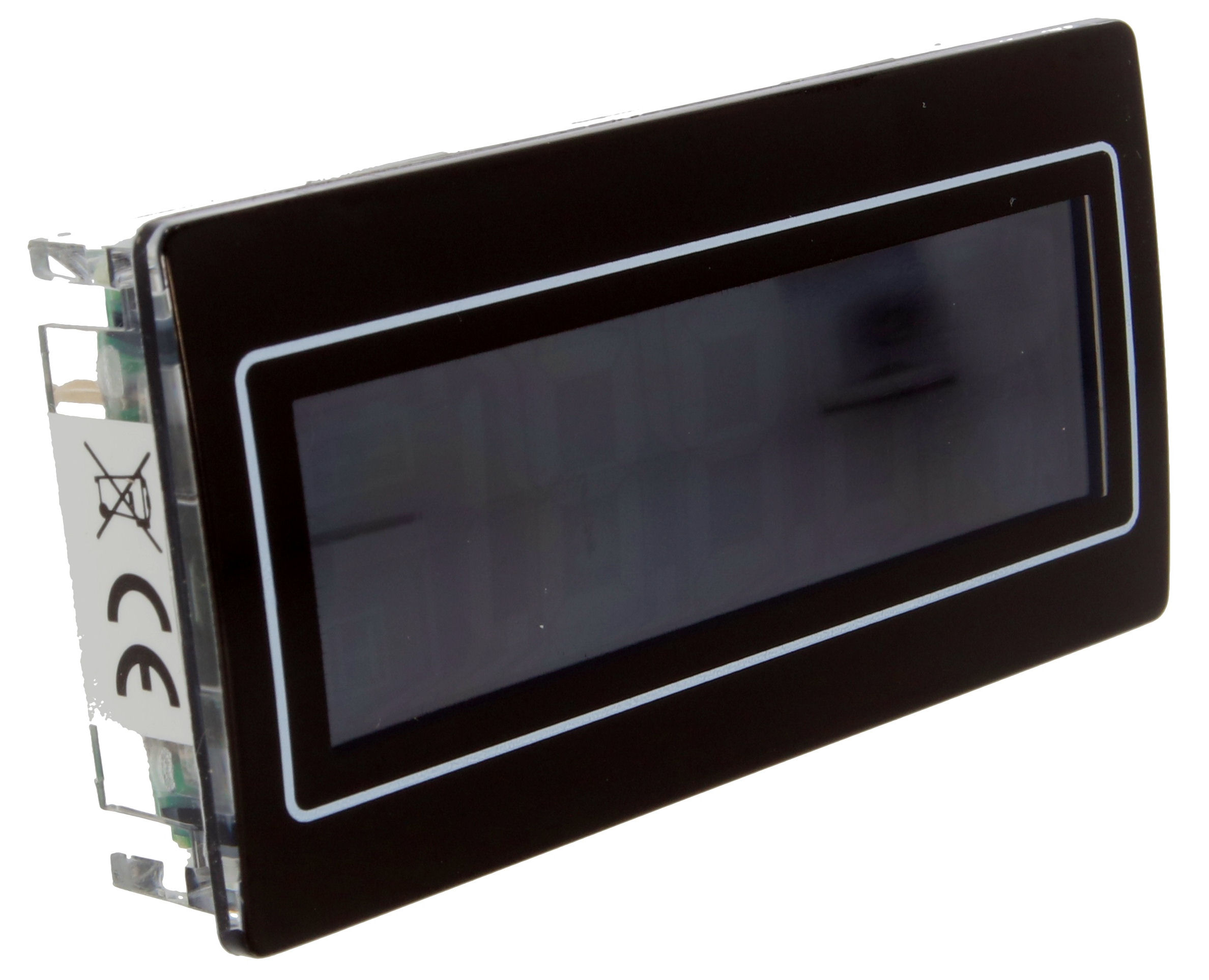

Panelmeter DPM962-TG

These modules are low profile LCD digital panel meters conforming to DIN standard panel sizes 24 mm x 48 mm and 36 mm x 72 mm. They use advanced components and construction techniques to provide performance combined with elegant appearance at a cost previously unattainable. The LED backlight provides clear, easy to read display under all lighting conditions. A large character height enables the LCD display to be easily read. Low power ideal for battery powered applications.

Connections and PCB pads are brought out to enable the module to operate in various modes. An on board voltage reference source is included allowing the units to accurately measure external external voltages from -200 mV to +200 mV, a potentiometer allows the installer to adjust the indicated value. Typical applications are indication of DC voltage or current in vehicles, boats etc when measuring voltage is used as supply voltage or indication of industrial process parameters such as voltage, current, temperature etc.

Features

Low power consumption

10 mm black character high contrast LCD display

Backlight

Hold function with annunciator.

5 or 9 V DC operation

200 mV full scale

Scaleable

Low battery warning 9V operation only
