Tocos RV24-10k log

Tocos RV24-10k log

(0 reviews)

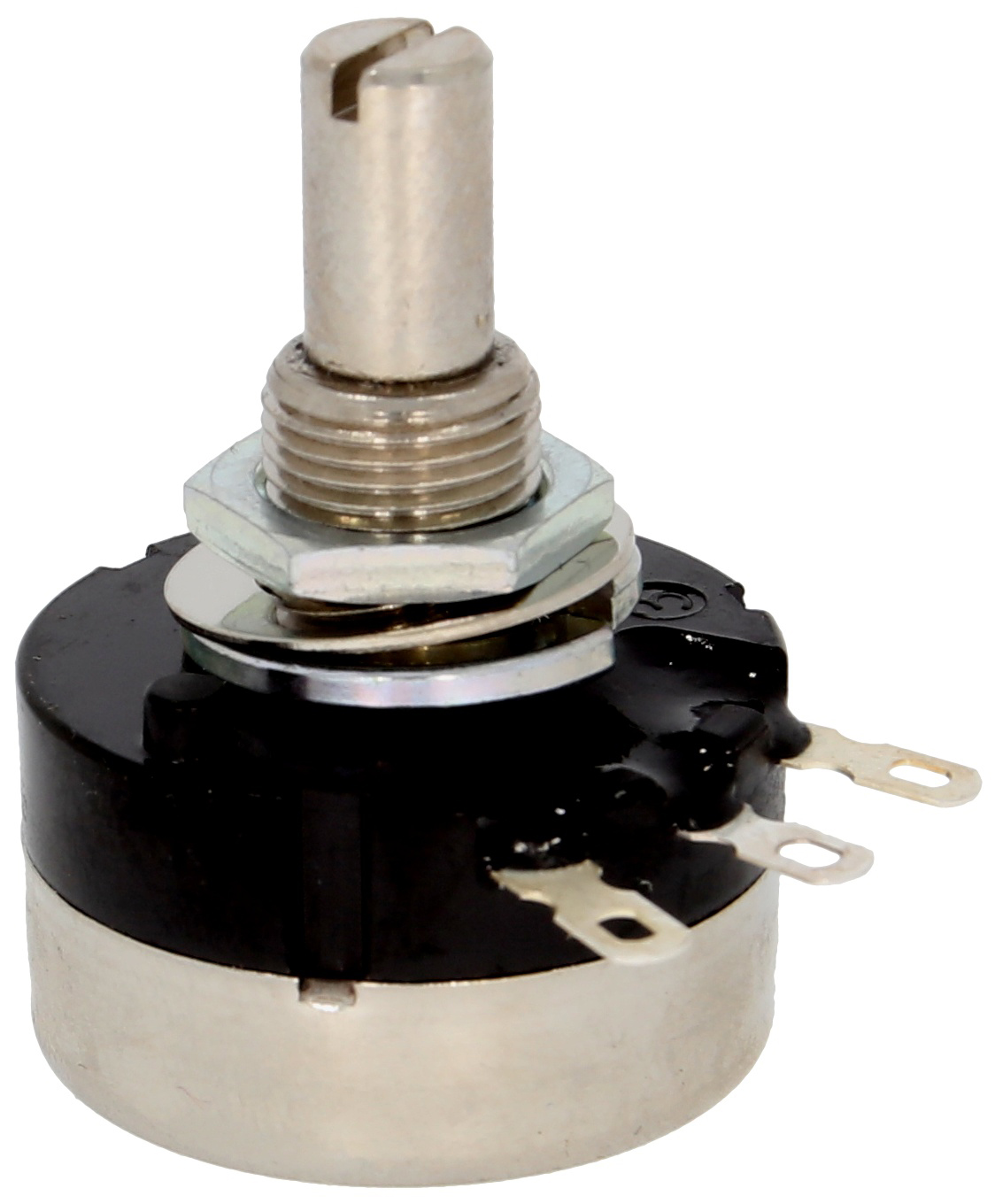

Tokyo Cosmos aka TOCOS is known worldwide for their high quality potentiometers. The RV24 Series is a 24mm military-style carbon element potentiometer with a tolerance of 10%, praised by both guitar and hifi amp builders for their performance and reliability. Each potentiometer includes a nut, flush washer, and lock washer.

  • 24mm diameter, single-turn potentiometer
  • Carbon film element
  • Metal shaft and bushing
  • Panel mount
  • Ear-lug solder terminals
  • 6mm diameter slotted-end solid shaft
  • 10mm bushing length
  • 10mm shaft length (extended past bushing)

  • Adjustment Travel: 280' +/- 10'
  • Body Depth: 13,5mm
  • Body Diameter: 24,6mm
  • Bushing Length: 10mm
  • Bushing Thread: M9 x P0.75
  • Dielectric Strength: 1,000VAC, 1 minute
  • End Resistance: 3 Ohm max.
  • Insulation Resistance: 100M minimum at 1,000VDC
  • Load Life: +40'C, 1,000 hours with rated load
  • Maximum Input Voltage: 315VDC
  • Mechanical Travel: 300' +/-5'
  • Moisture and Load Life: +40'C, 90-95%RH, 500 hours with rated load
  • Mounting Nut Torque: 15 kgf*cm (207.94 oz * in) max.
  • Peak Noise (C.R.V.): 3% or 3 Ohm, whichever is greater
  • Power Rating: 0.125 watt at 40'C, 0 watt at +85'C
  • Recommended Mounting Hole: 9.3mm
  • Resistance Tolerance: 10% standard
  • Rotational Life: 15,000 cycles
  • Shaft Torque: 51 to 306 gf *cm (0.707 to 4.242 oz * in)
  • Solderability: 235'C, 5 seconds
  • Soldering Heat Resistance: 350'C, 3 seconds
  • Stop Strength: 9.18 kgf *cm (127.26 oz * in) max.
  • Temperature Range: -10'C to +85'C
  • Thermal Shock: -10'C ~+85'C, 5 cycles without load
  • Total Shaft Length: 20mm
  • Vibration: 10-55Hz, 1.5mm amplitude, 3 directions, 2 hours each

    • SKU SKU 59687
    Weight 43,00 g
    360 Image 360 degrees image
    Our price: €10,48
    including VAT 19% , [plus shipping]
     Delivery time: 4-5 days*
