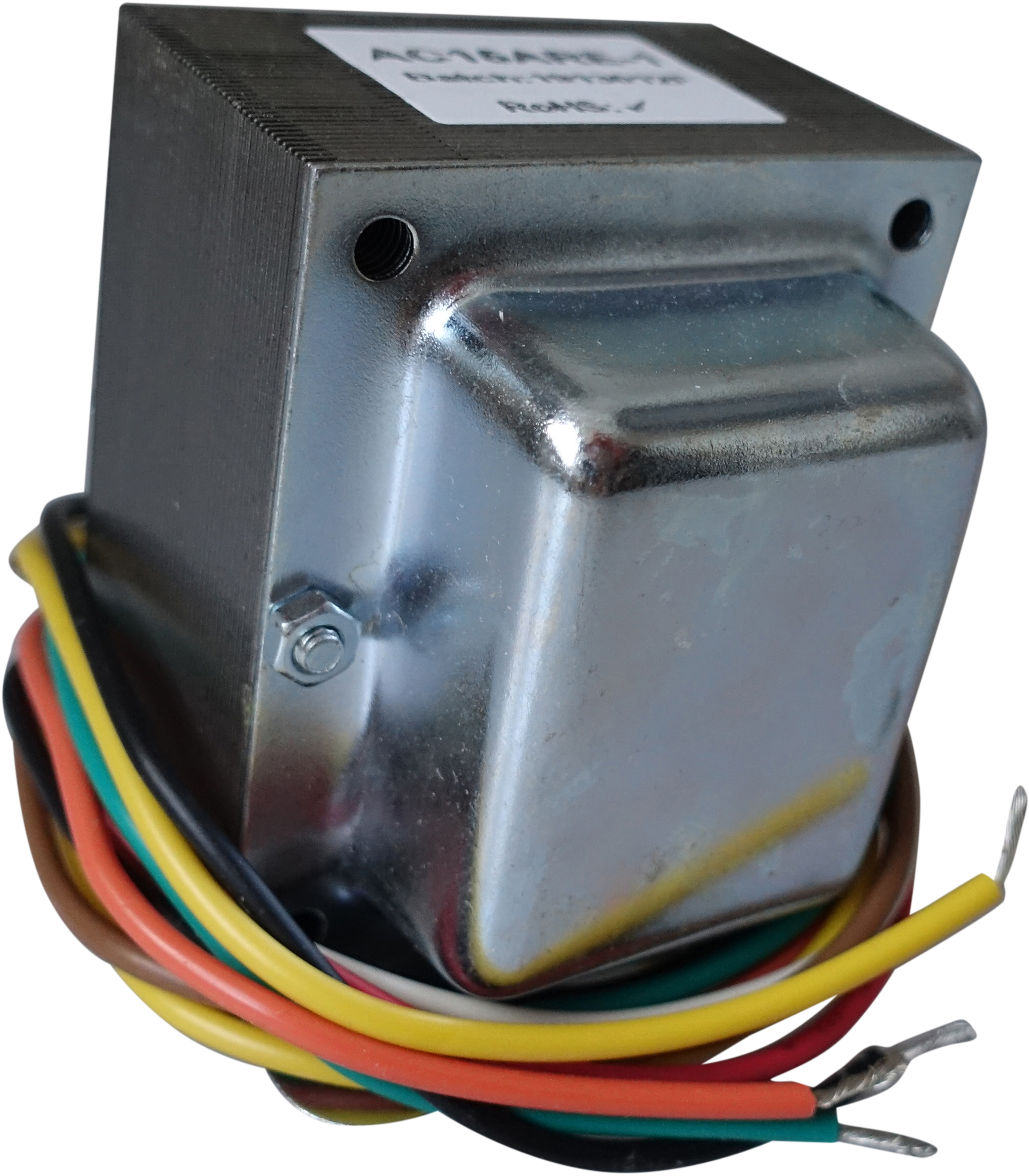

Transformer T-OP-AC15ARE-1

Output transformer for the VOX AC15 REISSUE (UK made model). Replaces TXOP00008. (294-310) Upgrade with 4, 8 and 16 Ohms. 2x EL84 Class A, 15 Watt.

Raa approx. 8k Ohm
Custom made by Dagnall in Europe
W x H x D: 63.5mm x 78mm x 84.5mm
Mounting on: 47.5mm x 60mm

Primary:
A1 Red
HT Brown
A2 White

Secondary:
16 Ohms Orange
8 Ohms Green
4 Ohms Yellow
0 Ohm Black
