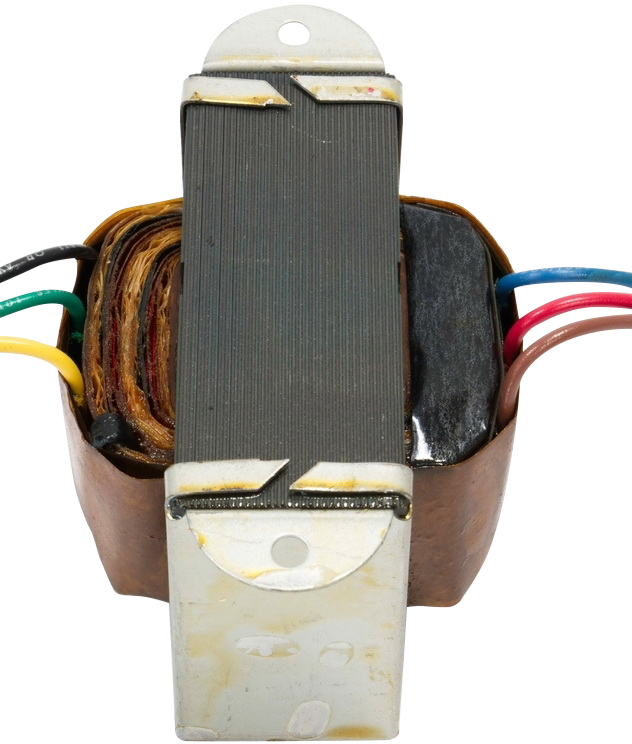

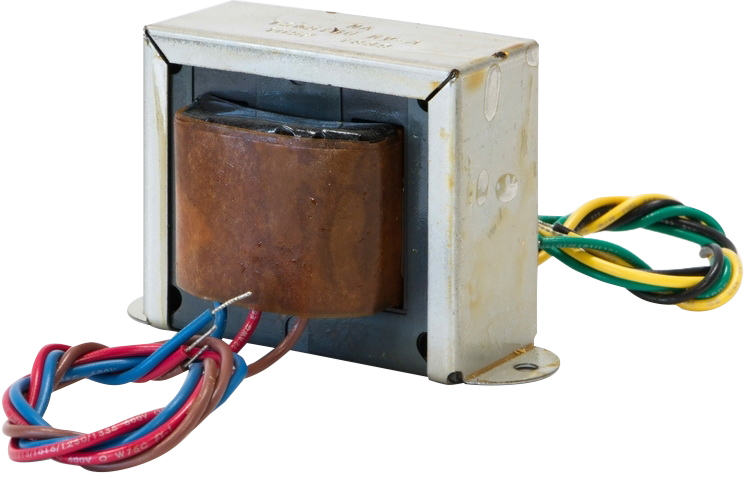

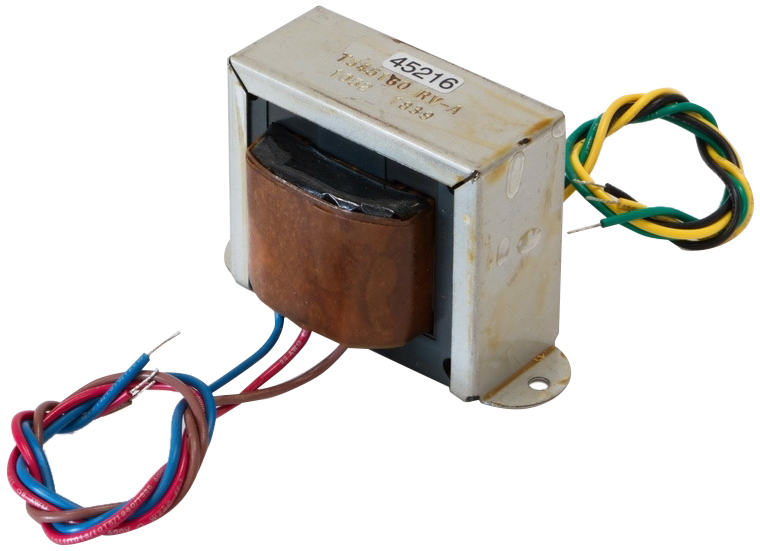

Transformer T-PWR-45216

Output transformer for Fender Tweed Super 5F4, Pro 5E5A, Bandmaster 5E7, 4 and 8 Ohm. Made in USA. Paper Bobbin, correct impedance.

can be used also for the 45217 like used in the Fender Vibrolux 6G11 and Bandmaster 6G7-A.
overall dimensions: W x H x D: 102,5 (incl. Lug) x 65,5 x 67 mm
mounting on 90.5mm
lamination: 3 inch, Stacking 1,25 inch
Impedance: approx. 6,4k Ohm P-P
power handling: 40 Watts.

Primary:
A1 Blue
B+ Red
A2 Brown

Secondary:
8 Ohms Yellow
4 Ohms Green
0 Ohms Black
