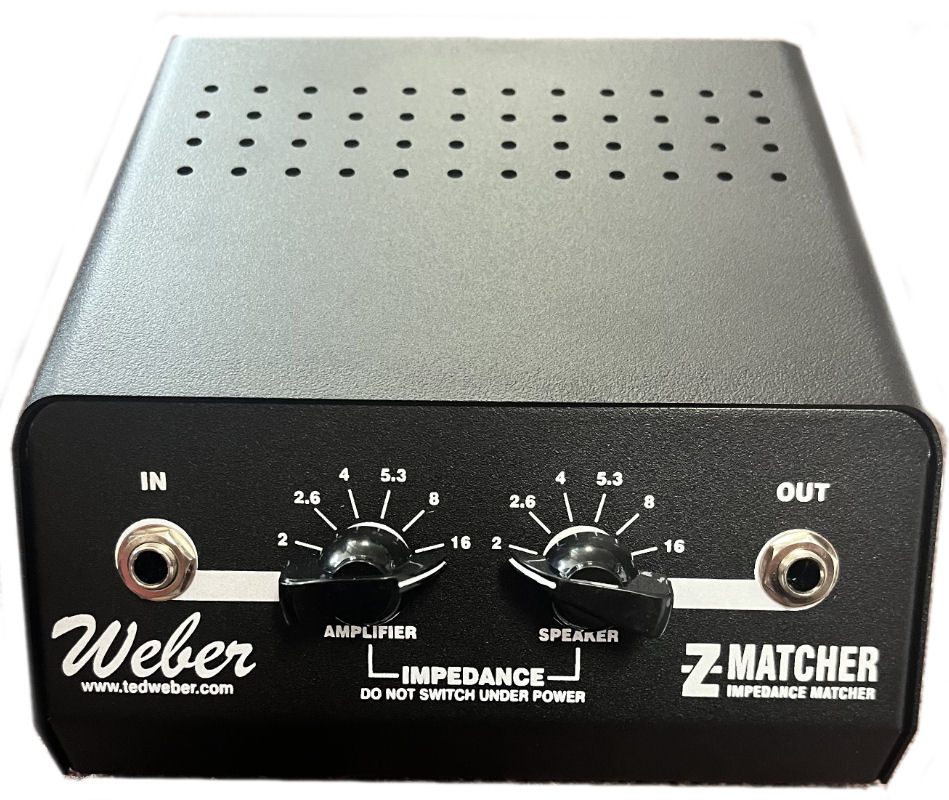

Weber Z-Matcher 100W

The Z-Matcher 100W allows you to match the output impedance of your amp to impedances of speakers and cabinets that are not the same as your amp output impedance. Matches 2, 2.6, 4, 5.3, 8, and 16 ohms amplifiers to 2, 2.6, 4, 5.3, 8, and 16 ohms speaker systems. Includes an extra output jack (parallel) and a balanced and unbalanced line out with a level adjustment. This unit is rated for 100W, which means you can use any amp up to 100 watts.

The Extra Output is wired in parallel to the main output. You will need to follow the rules of parallel speaker systems, and this means that you will have to consider the impedance of the speakers/cabinets if you do want to use both outputs. For example, if you have two 8 ohm cabinets: one 8 ohm cabinet plugged into the main output, and one 8 ohm cabinet plugged into the extra output. This gives you a total impedance of 4 ohms, so you need to set the output impedance on the Z-matcher to 4 ohms.

The Z-matcher is a passive device that requires no AC power, and also does not color or affect your tone in any way.

Size: 18,1x18,4x8,9cm.
