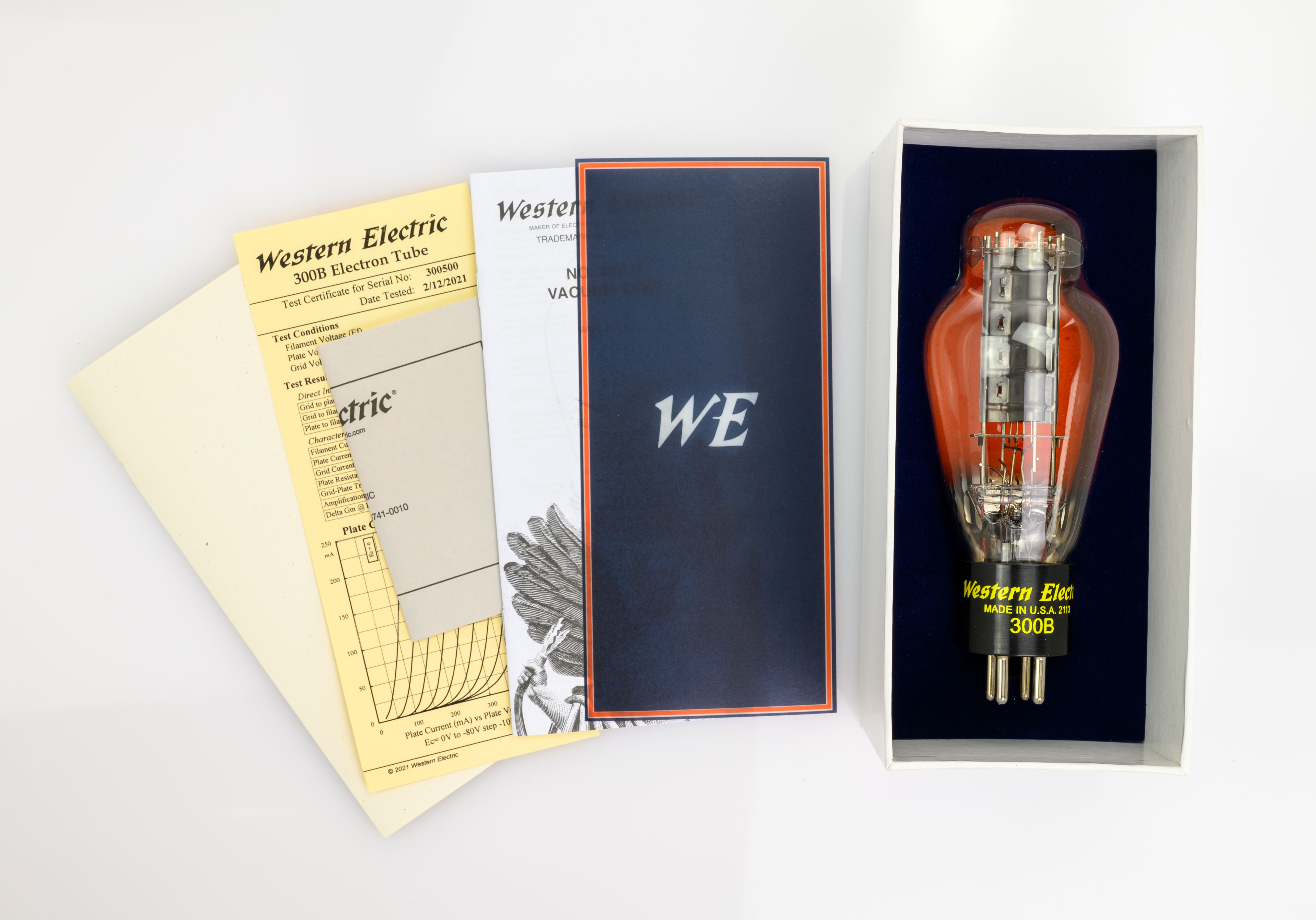

Western Electric 300B Matched Pair

The legend is back. The WE 300B sound is balanced, powerful and refined with quality bass from the lowest frequencies through the upper bass. The midrange above is a thing of beauty; dulcet tones, seductive vocals, instruments of all types dimensional and present, all heightening the participatory elements of music.

Burnished and Beautifully Seductive. High frequencies are at once transparent, lovely, sweet, burnished and beautifully seductive. The air and space between performers are extraordinary, performers appear on a quiet and focused soundstage whose width and depth are masterfully rendered. You don’t have to search to find the sweet spot with a WE 300B amplifier, it’s all around you.
Find out what tube aficionados all over the globe know, the WE 300B is the most natural, elegant and emotive triode anywhere in the known universe.

Classification
Moderate power, filamentary triodes for Class-A service.

Application
Audio-frequency amplifier in positions where power outputs of approximately ten watts or less are required at relatively low plate voltages.

Dimensions
Dimensions, outline diagrams of the tubes and bases, and the arrangement of electrode connections to the base terminals are shown in Figures 1 and 2.

Base and Mounting
These vacuum tubes employ medium, four-pin thrust type bases suitable for use in Western Electric 143B or similar sockets. The 300B tube has the bayonet pin so located that it may also be mounted in a Western Electric 100M, 115B, or similar socket.
The tubes may be mounted in either a vertical or horizontal position. If mounted In a horizontal position, the plane of the filament should be vertical.

Average Direct Interelectrode Capacitances
Grid to plate 15 uuf.
Grid to filament 9 uuf.
Plate to filament 4.3 uuf.

Filament Rating
Filament voltage 5.0 volts, a.c. or d.c.
Nominal filament current 1.2 amperes

The filaments of these tubes are designed to operate on a voltage basis and should be operated at as near the rated voltage as possible. When alternating current is used for heating the filament, the grid and plate returns should be connected to a center tap on the secondary of the filament transformer.
